Name: Siemens 3RT2027-2AF04 Contactor 3 makers 15 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(
Brand: Siemens
SKU: 1748330
Availability: InStock

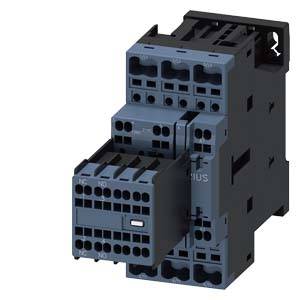

Three-pole electrical contactor module in a grey enclosure, used in control cabinets for managing electrical circuits.

An open electrical cabinet and a window showing raindrops; machines blurred in the background.

'Diagram of a protection installation showing various components, including auxiliary switches and connection terminals with numbering.'

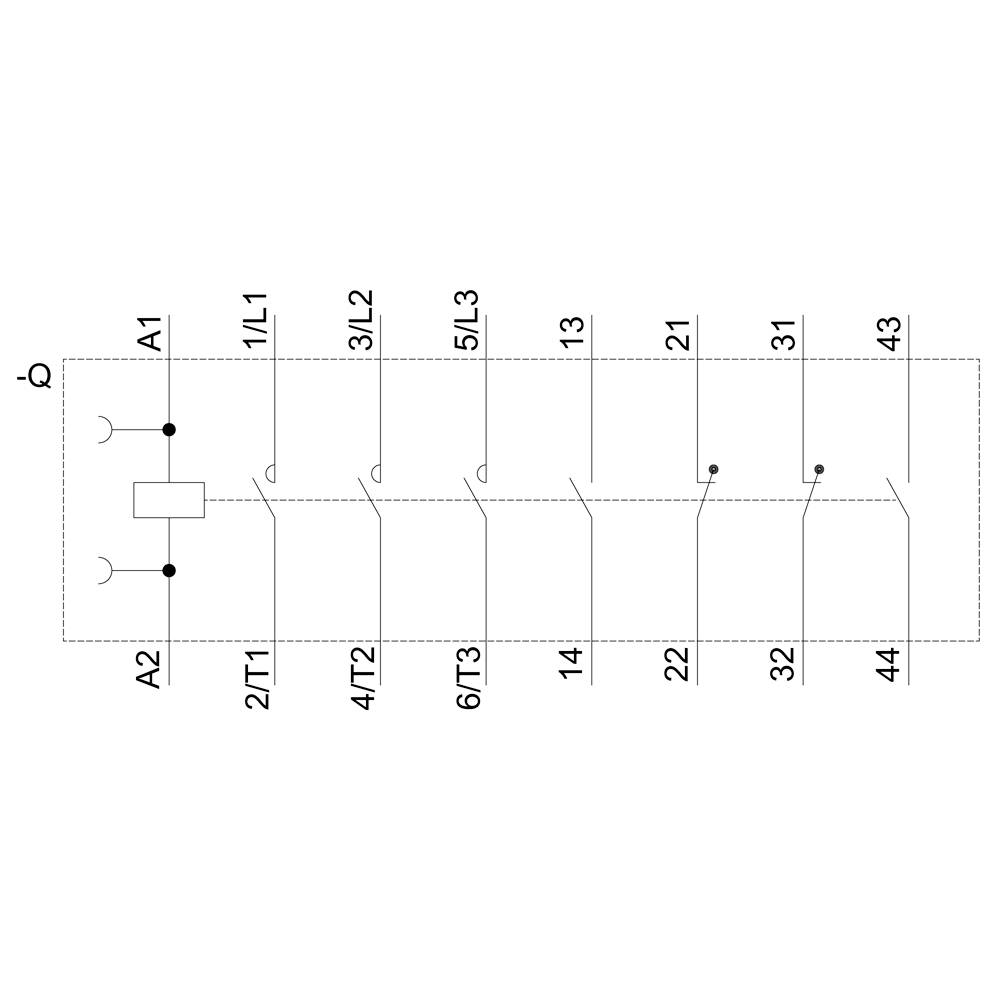

Circuit diagram of a relay with coil terminals (A1, A2) and contacts (1/L1, 2/T1, 3/L2, 4/T2, 5/L3, 6/T3).

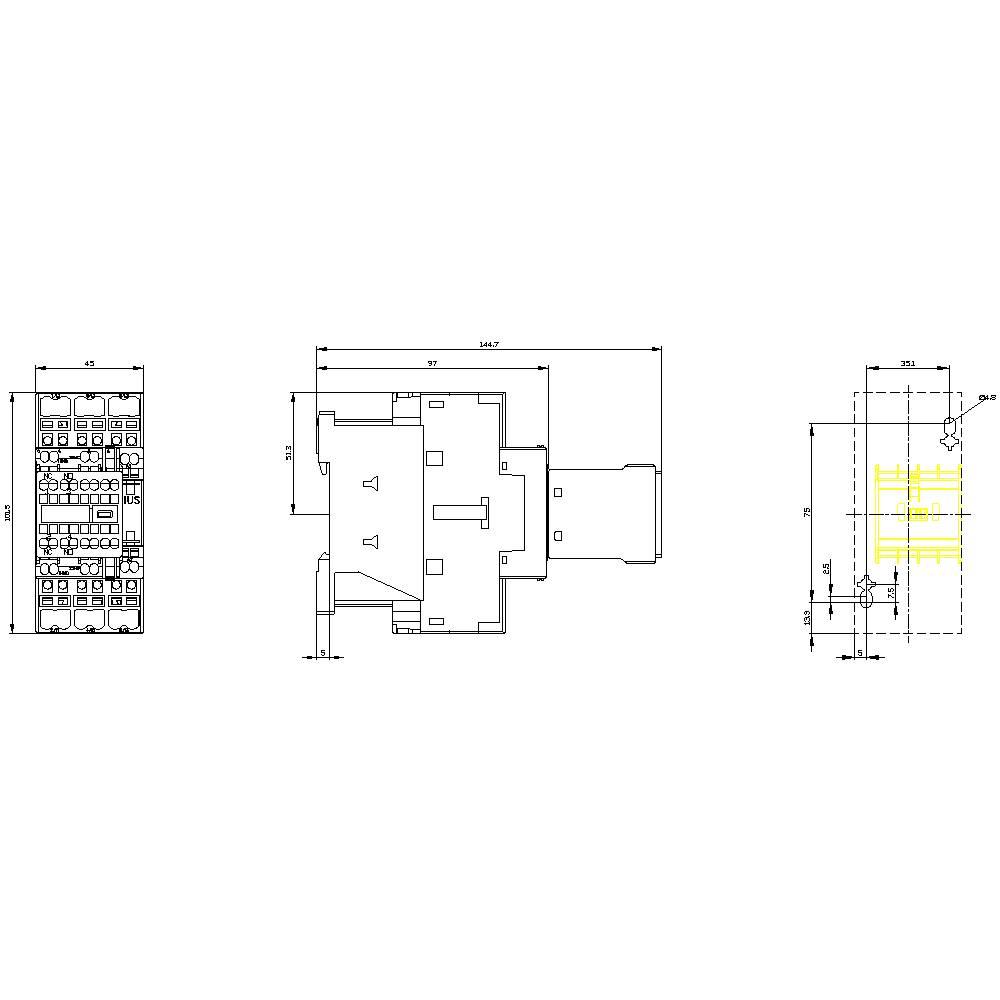

Technical drawing of an electrical circuit diagram with detailed dimensions. Shows front, side, and top view for design purposes.

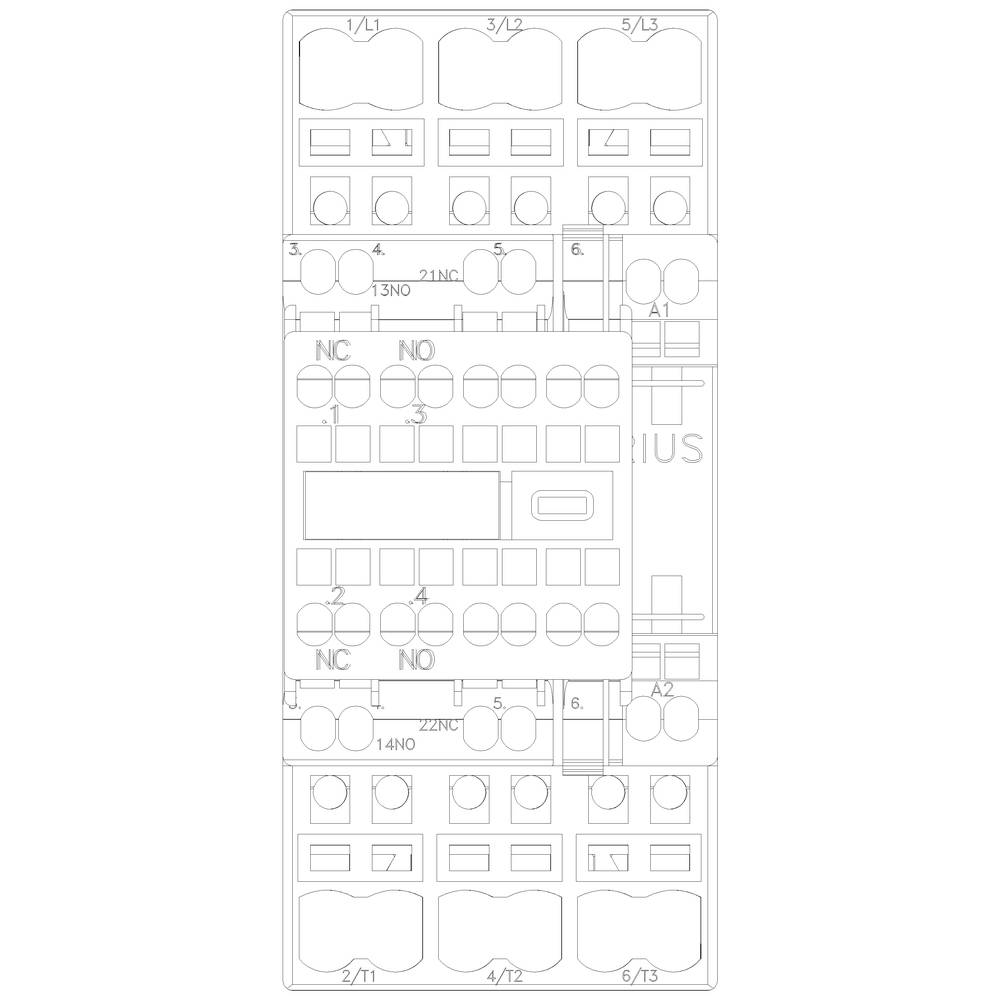

Diagram of a circuit schematic with multiple contacts and circuits. The markings include NO and NC, connected to various terminals.

1/6

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

15 kW

Connection

Spring-loaded connector

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 149.99 / piece)

€ 149.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for fine-wire: 6 mm²

Product type: Contactor

Type: 3RT2027-2AF04

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 32 A

: 15 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 102 mm

Depth: 144 mm

Dim: (W x H x D) 45 x 102 x 144 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 15 kW

: 3

: 2

: 2

: 32 A

: 50 A

: Spring clamp connection

: AC

: 22 A

: 14.709975

UKCA: yes
