Name: Siemens 3RT2038-3NB30 Contactor 3 makers 690 V AC + varistor Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1699404
Availability: BackOrder

An electrical contactor in black and grey, a model with three main terminals at the top, suitable for industrial applications.

The image depicts an open electrical control cabinet, alongside a rain-soaked glass pane with a blurred industrial machinery background.

'Circuit diagram of a contactor system: Diagram shows contactor, connection terminals, auxiliary switch and accessories. Compatibility information and mounting instructions are included.'

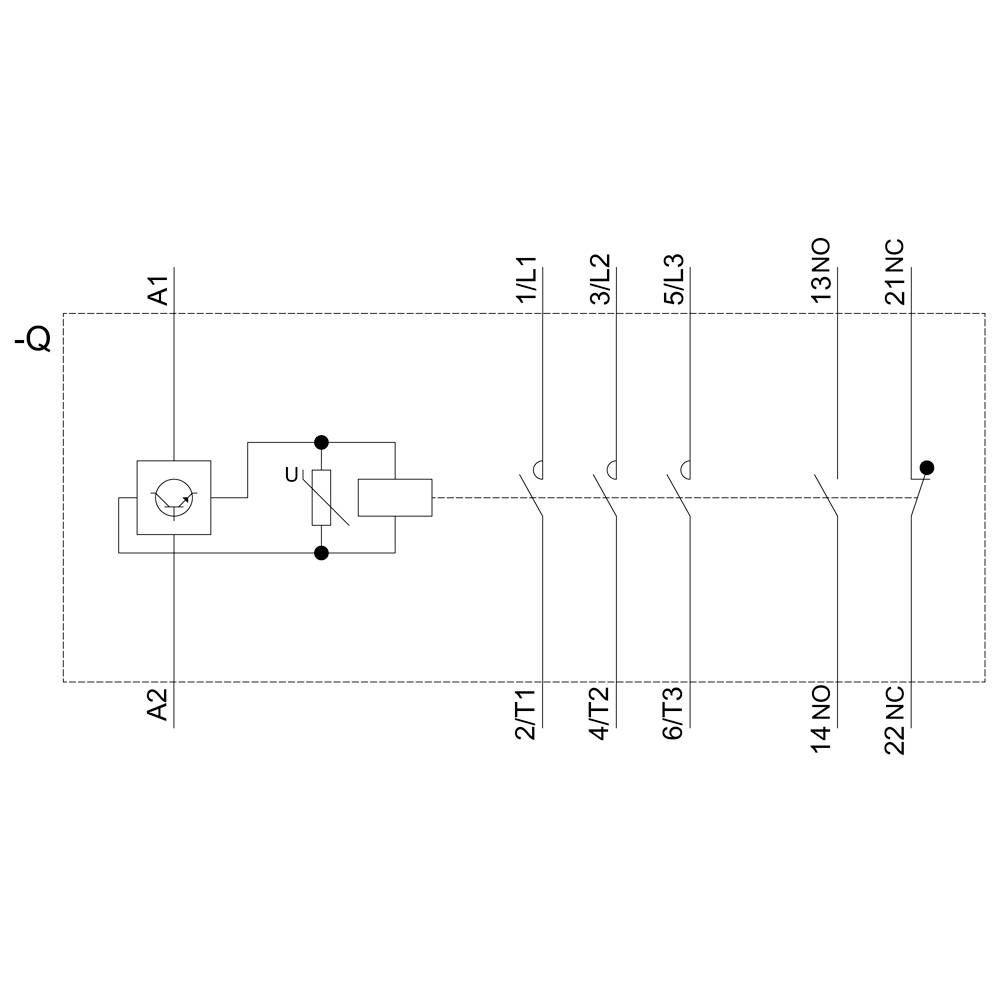

Circuit diagram shows an electrical contactor with coil U, terminals A1/A2 and multiple switching contacts; used for control applications.

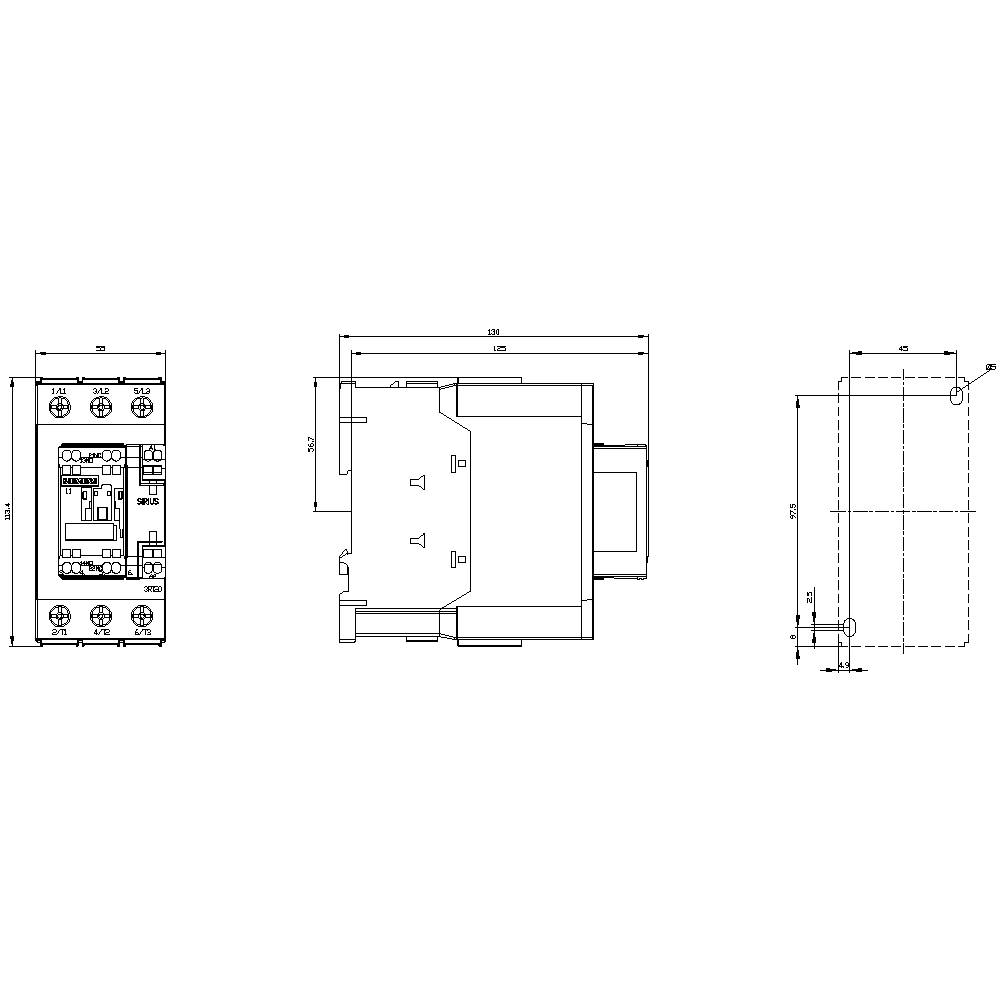

Technical Drawing of an Electrical Switch with Three Views: Front, Side and Top, with Dimensions in Millimetres.

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Screws

Type

3RT2038-3NB30

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 675.00 / piece)

€ 675.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage, AC/DC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2038-3NB30

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 80 A

Compatible with: Siemens

Compatible with series: Siemens S2 type

Features: + varistor

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 130 mm

Dim: (W x H x D) 55 x 114 x 130 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 37 kW

: 3

: 1

: 1

: 80 A

: 90 A

: 20-33 V

: 20-33 V

: 20-33 V

: Screw connection

: AC/DC

: 55 A

: 36.775

UKCA: yes
