Name: Siemens 3UG4511-1BP20 Three Phase & Mains Voltage Monitoring Relay, Analogue, N/A
Brand: Siemens
SKU: 502494
Availability: BackOrder

The image depicts an electrical monitoring relay by Siemens. It features rotary knobs for adjusting phase sequence and delay.

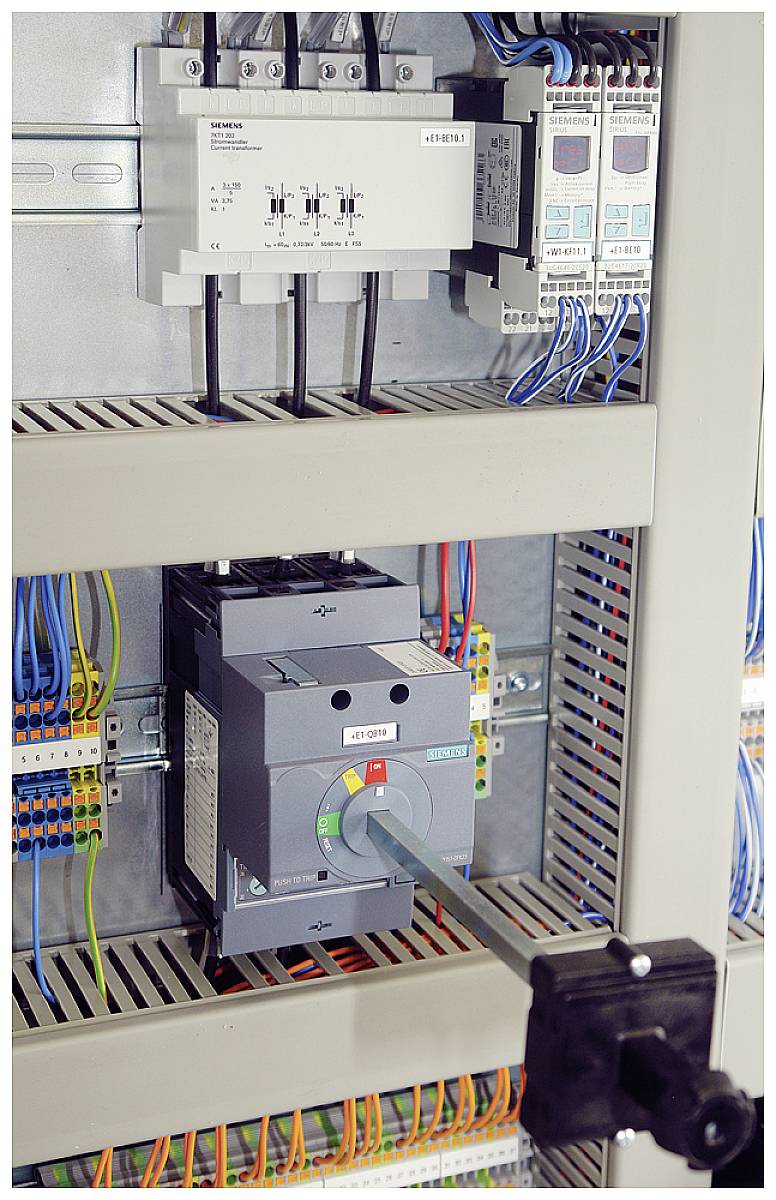

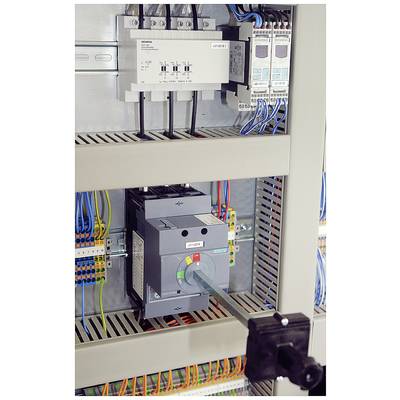

An electrical control cabinet with a main switch in the foreground, featuring multiple cables and electrical components inside.

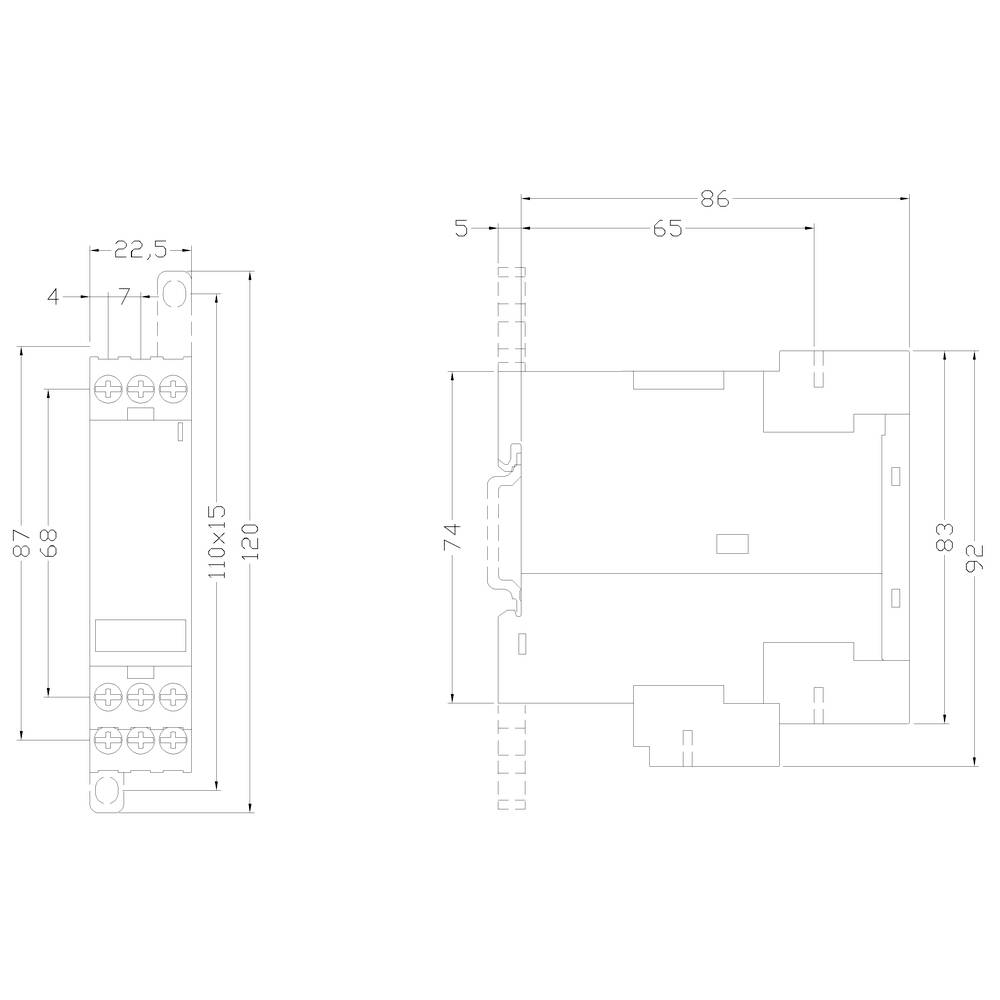

'Diagram of an electrical switching device with dimensions: left 110 x 87 mm, right 82 x 74 mm. Screw connections shown.'

1/3

Image similar

Packaging type

Piece

Product type

Monitoring relay

Functions

Phase sequence

Max. operating voltage

500 V AC

Contact type

2 change-overs

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: Snap-in

Packaging type: Piece

Product type: Monitoring relay

Type: 3UG4511-1BP20

Functions: Phase sequence

Features: + broad range setup

Operating voltage: 500 V AC

Min. operating voltage: 320 V AC

Max. operating voltage: 500 V AC

Operating voltage: 320 - 500 V AC

Amperage adjustment range (min.): 1 A

Amperage adjustment range (max.): 3 A

Adjustment range (amperage): 1 - 3 A

Contact type: 2 change-overs

Switching voltage (max.): 500 V AC

Electrical lifespan: 100000

Durability: 1.0E7

Connection: Screws

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 22.5 mm

Height: 92 mm

Depth: 91 mm

Dim: (L x W x H) 86 x 22.5 x 92 mm

Content: 1 pc(s)

Length: 86 mm

Type: Monitoring relay for mains and three-phase voltages

Type: 3UG4511-1BP20

Operating voltage: 320 - 500 V AC

: 22.5

: 92 mm

: 91 mm

: TRUE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: Screw connection

: AC

: 0

: 0

: 2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 502494 Siemens 3UG4511-1BP20 Three Phase & Mains Voltage Monitoring Relay, Analogue, N/A

User & Safety Instructions

User & Safety Instructions 502494 Siemens 3UG4511-1BP20 Three Phase & Mains Voltage Monitoring Relay, Analogue, N/A

Description

!!! Outcome product !!! The preferred successor is 3UG5511-1BR20 PH.FOL.UBERW. 3X320-500V 2W Analogue monitoring relay Phase sequence monitoring 3 x 320...500 V AC 50...60 Hz 2 changer Screw connection Network monitoring relay with fixed function SIRIUS 3UG4 for the monitoring of phase sequence, failure and asymmetry, for example in mobile plants such as air conditioning compressors, cooling containers, construction site compressors or cranes.
Worldwide use of international certificates. Different variants make application-case-specific product selection possible. Small width means less space in a control cabinet. All versions with removable connection terminals.
Apart from screw connection technology, the devices are also available continuously with spring connection for a fast, maintenance-free and vibration-proof connection. Variants with a wide-voltage range without auxiliary voltage can be used in all networks around the world.
The extensive accessories, such as the device identification labels, plug-in tabs and cover caps, are uniform for all relays.
SIRIUS relay - a program for all cases.

This text is machine translated.
