Name: Siemens 3VA9267-0FK23 Door handle rotary actuator 1 pc(s) (W x H) 105 mm x 82 mm Piece
Brand: Siemens
SKU: 1722806
Price: 189.99 EUR
Availability: BackOrder

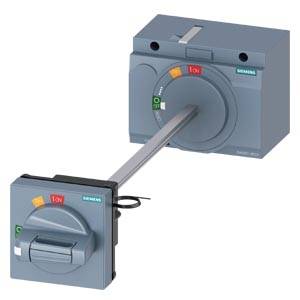

A Siemens industrial switch with a rotary lever. The switch is set to 'ON' and has labels in various colours.

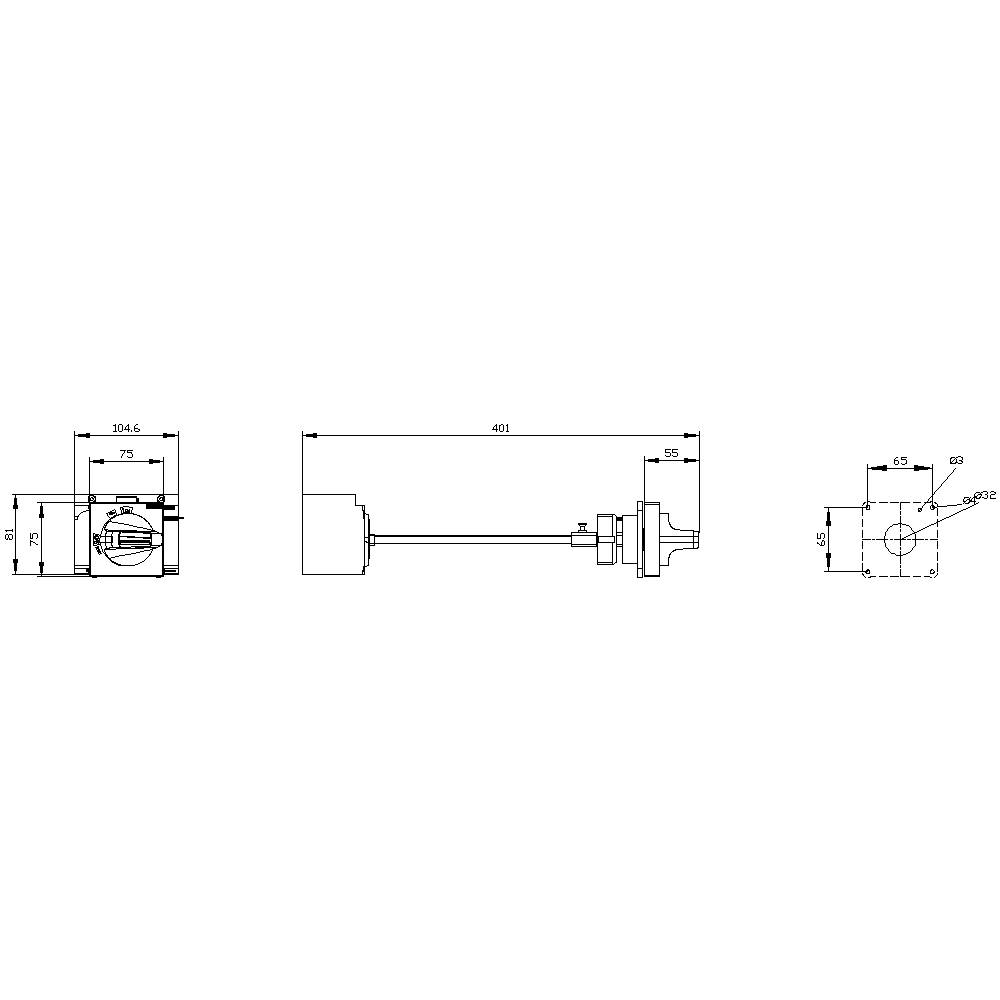

Technical drawing of a mechanical component with dimensions. Side and front views show length, width, and drilling positions.

1/2

Image similar

Product type

Door handle rotary actuator

Packaging type

Piece

Type

3VA9267-0FK23

Control voltage (max.)

24 V DC

Control voltage range

24 V DC (max)

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 189.99 / piece)

€ 189.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SIDE WALL OPERATOR, EM, MOUNTING PLATE

Our service for you

Technical specifications

Packaging type: Piece

Product type: Door handle rotary actuator

Type: 3VA9267-0FK23

Control voltage (max.): 24 V DC

Control voltage range: 24 V DC (max)

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Screw-fit

Min. temperature: -20 °C

Max. temperature: +70 °C

: IP65

Width: 105 mm

Height: 82 mm

Dim: (W x H) 105 mm x 82 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Other

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1722806 Siemens 3VA9267-0FK23 Door handle rotary actuator 1 pc(s) (W x H) 105 mm x 82 mm Piece

User & Safety Instructions

User & Safety Instructions 1722806 Siemens 3VA9267-0FK23 Door handle rotary actuator 1 pc(s) (W x H) 105 mm x 82 mm Piece

Description

side mounted rotary operator emergency-off IEC IP65 with mounting plate accessory for 3VA2 100/160/250 Manual operating mechanisms for 3VA molded-case circuit breakers. For easy operation of the molded-case circuit breaker 3VA - front operating mechanism, door coupling or side rotary operating mechanism. Key features of these accessory components: 1. Available as front, door and side panel rotary operating mechanism. 2. Handles available as standard version with and without lighting kit and as EMERGENCY STOP with and without lighting kit. 3. Optional lighting kit for clear view of switch position even when very dirty. 4. Range of locking options. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
