Siemens 5SL41026 5SL4102-6 Circuit breaker 1-pin 2 A 230 V, 400 V

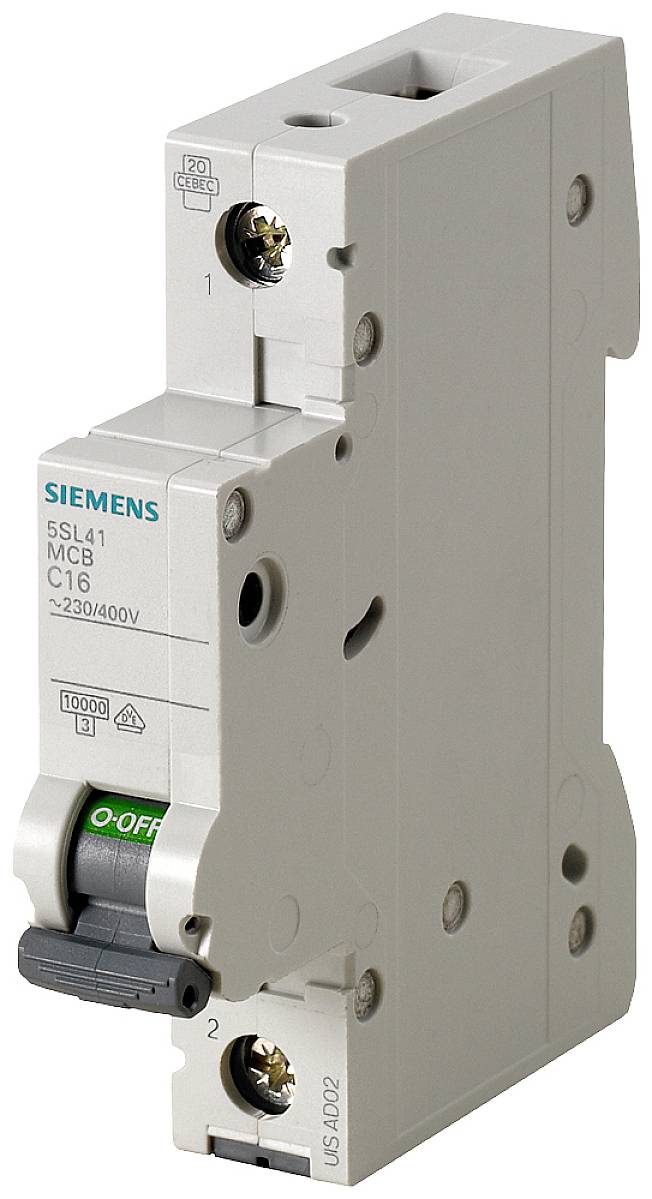

'Siemens circuit breaker, Model C16, 230/400V. The switch has an on/off toggle switch position.'

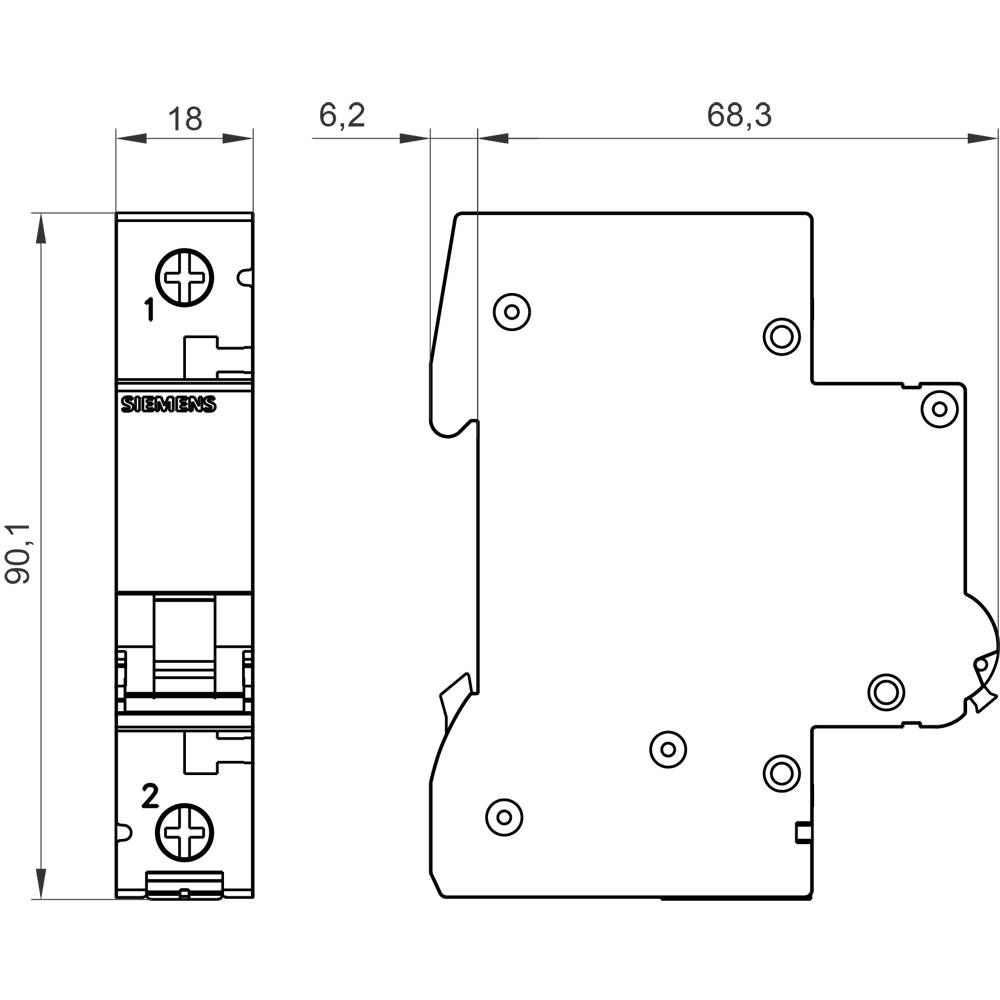

Technical drawing of an electrical switch with dimensions (90.1 x 18 x 68.3 mm). Serves to provide a visual description of the size.
1/2
Image similar
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
2 A
Operating class
230/400 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
35 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • IP20, with the connected conductors
Product type

Circuit breaker

Number of pins

1

Operating class

230/400 V

Release characteristics

B

RoHS-compliant

Yes

Nominal current - rounded value

2 A

Nominal current

2 A

Factory colour

Grey

Dim

(W x H x D) 18 x 90 x 76 mm

Content

1 pc(s)

Operating voltage

440 V

Nominal voltage

230 V

400 V

Compatible with (details)

SENTRON

Width

18 mm

Height

90 mm

Depth

76 mm

AC

70 mm

2 A

400 V

50-60 MHz

B

3

3

2

1

IP20

1

FALSE

TRUE

1

10 kA

10 kA

10 kA

10 kA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1419052 Siemens 5SL41026 5SL4102-6 Circuit breaker 1-pin 2 A 230 V, 400 V

User & Safety Instructions

User & Safety Instructions 1419052 Siemens 5SL41026 5SL4102-6 Circuit breaker 1-pin 2 A 230 V, 400 V

Description

Circuit breaker switch 230/400V 10kA, 1-pin, B, 2A circuit breaker SENTRON 5SL for the safe short-circuit and overload protection for standard applications in residential and commercial buildings.Assembly and disassembly of the device without tools. Simple wiring of the infeed through the bus bar located at the rear.The 5SL miniature circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pole versions as well as in other special types.The extensive range of accessories, such as auxiliary switches, enables a wide range of functions.Simply safe with the protection devices from SENTRON.
