Siemens 5SL61636 5SL6163-6 Circuit breaker 1-pin 63 A 230 V, 400 V

Siemens circuit breaker, Model S5L61 MCB C16, for electrical protection. Switch position shows "OFF".

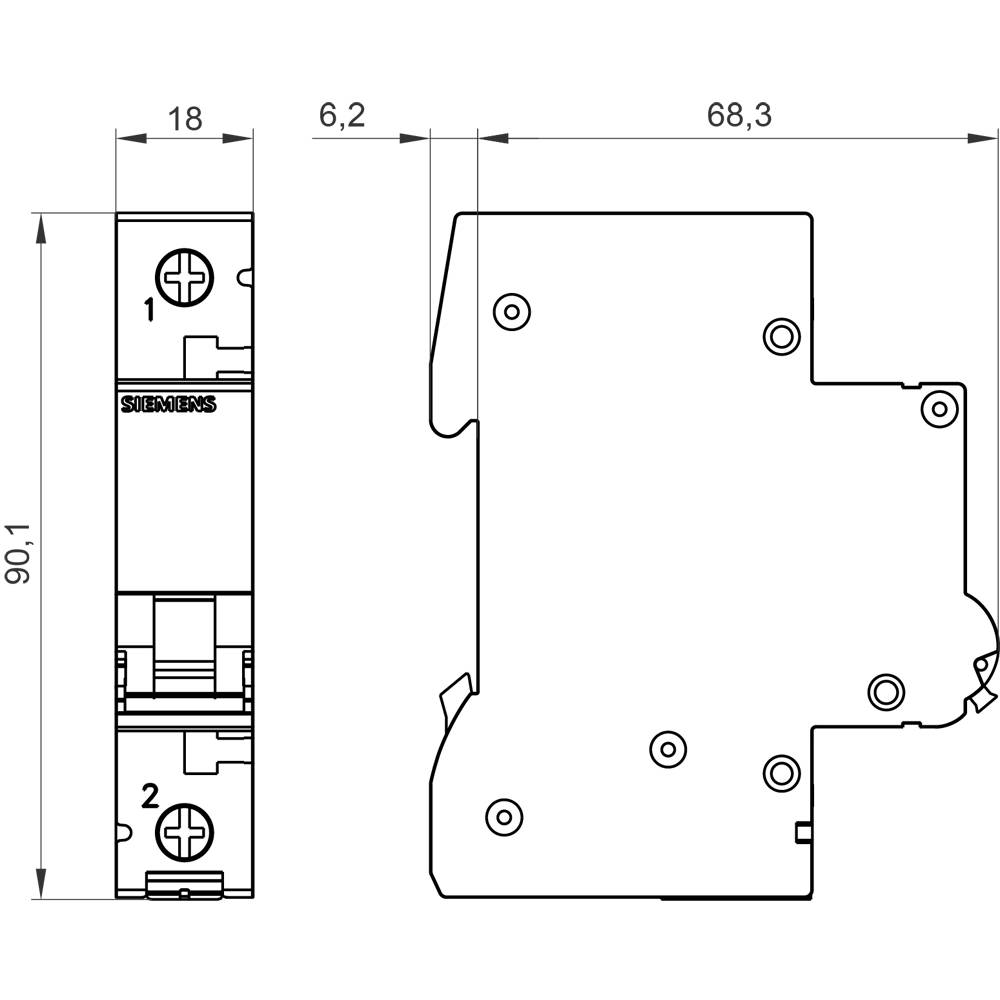

Technical drawing of an electrical component with dimensions: height 90.1 mm, width 18 mm and 68.3 mm. Shows front and side view.
1/2
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
63 A
RoHS-compliant
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 1 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 21.99 / piece)
€ 21.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • IP20, with the connected conductors
Product type

Circuit breaker

Number of pins

1

Release characteristics

B

RoHS-compliant

Yes

Nominal current - rounded value

63 A

Nominal current

63 A

Factory colour

Grey

Dim

(W x H x D) 18 x 90 x 76 mm

Content

1 pc(s)

Operating voltage

440 V

Nominal voltage

230 V

400 V

Compatible with (details)

SENTRON

Width

18 mm

Height

90 mm

Depth

76 mm

AC

70 mm

63 A

400 V

50-60 MHz

B

3

3

2

1

IP20

1

FALSE

TRUE

1

6 kA

6 kA

6 kA

6 kA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1419143 Siemens 5SL61636 5SL6163-6 Circuit breaker 1-pin 63 A 230 V, 400 V

User & Safety Instructions

User & Safety Instructions 1419143 Siemens 5SL61636 5SL6163-6 Circuit breaker 1-pin 63 A 230 V, 400 V

Description

Circuit breaker switch 230/400V 6kA, 1-pin, B, 63A circuit breaker SENTRON 5SL for the safe short-circuit and overload protection for standard applications in residential and commercial buildings.Assembly and disassembly of the device without tools. Simple wiring of the infeed through the bus bar located at the rear.The 5SL miniature circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pole versions as well as in other special types.The extensive range of accessories, such as auxiliary switches, enables a wide range of functions.Simply safe with the protection devices from SENTRON.
