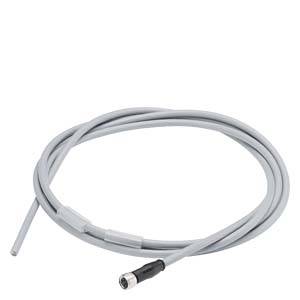

Siemens 6ES71942MH201AC0 6ES7194-2MH20-1AC0 PLC power cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
14-day return policy included
Technical specifications
- The color of the cable sheath: Gray
- Case material: plastic
- Material of the cable sheath: PE-PUR
- The material of the wire insulation: PP
- Number of electrical wires: 4
- Outer diameter of the inner conductor: 1 mm
- Outer diameter of the wire insulation: 1.46 mm
- Outer diameter of the cable sheath: 5.1 mm
- Color of the wire insulation of the energy wire: white/brown/blue/black
- The type of cable departure: 180° cable outlet
- Product type
PLC power cable
- Type
6ES7194-2MH20-1AC0
- Manufacturer part #
6ES71942MH201AC0
- Type
1 x M8 socket plug
- Length
2 m
IP65
IP67
- Series
ET 200
- Content
1 pc(s)
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-25 °C
PLC - other devices
4
2 m
Circular connector
Circular connector
TRUE
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1734956 Siemens 6ES71942MH201AC0 6ES7194-2MH20-1AC0 PLC power cable
User & Safety Instructions
User & Safety Instructions 1734956 Siemens 6ES71942MH201AC0 6ES7194-2MH20-1AC0 PLC power cable
Description
SINAMICS G120 POWER MODULE PM240-2 Push Through, WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 615x354x237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6
