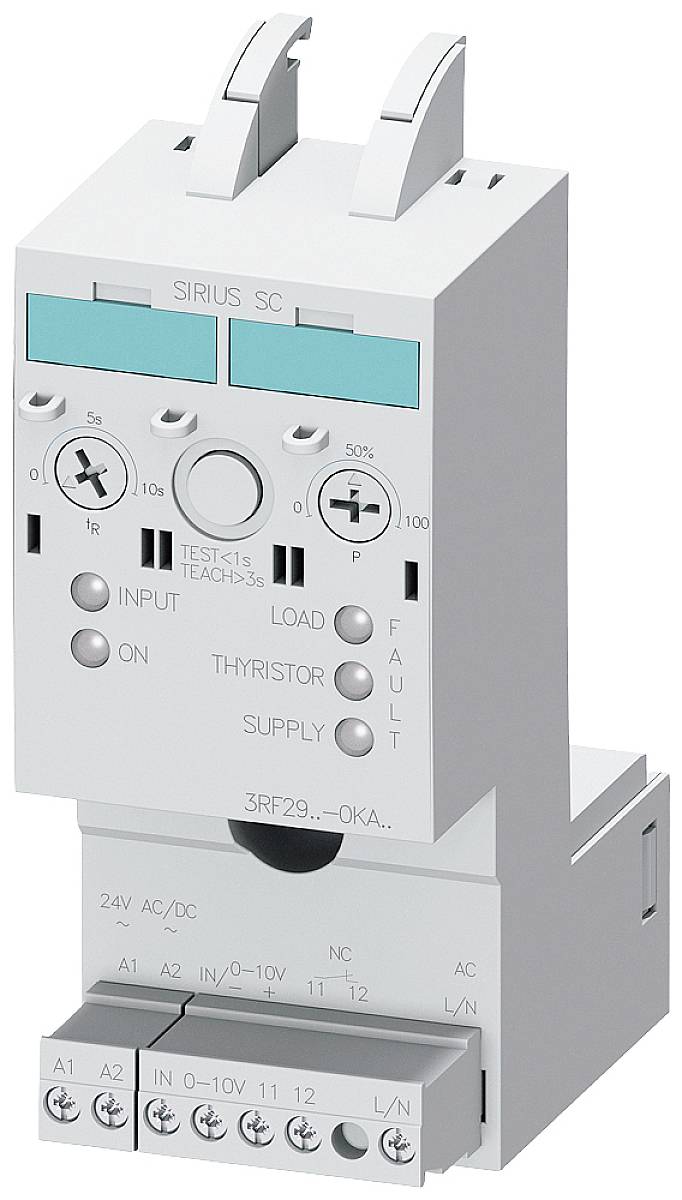

Image similar
Siemens Load monitor 24 V 1 pc(s) 3RF2920-0KA16
Product type
Load monitor
Switching voltage (max.)
600 V DC/AC
Type
3RF2920-0KA16
Operating voltage
24 V
Features
pluggable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 309.00 / piece)
€ 309.00
incl. VAT
14-day return policy included
Technical specifications
- Auxiliary contact type: 1 NO contact:1 NC contact
- Mounting type: Pluggable
- Product type
Load monitor
- Type
3RF2920-0KA16
- Operating voltage
24 V
- Features
pluggable
- Switching voltage (max.)
600 V DC/AC
- Min. temperature
-25 °C
- Max. temperature
+60 °C

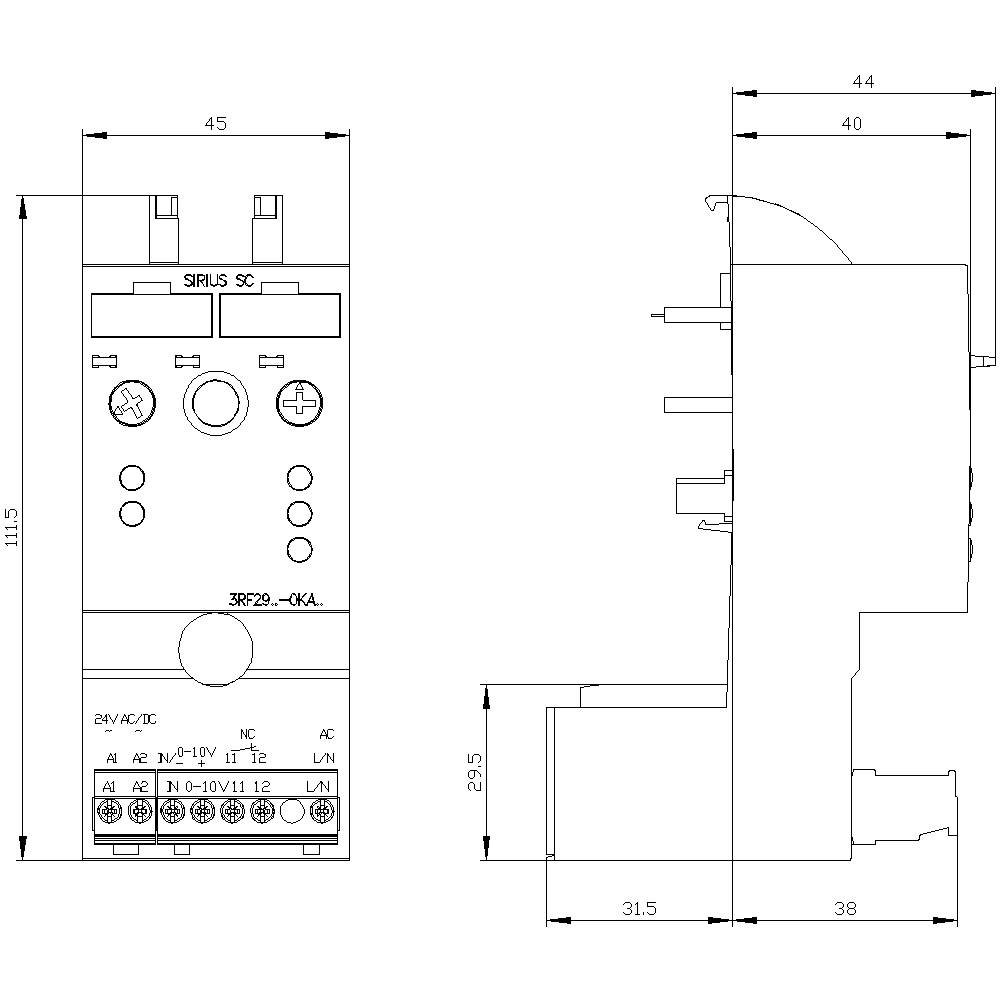

- Width
45 mm
- Height
111.5 mm
- Depth
69.5 mm
- Dim
(W x H x D) 45 x 111.5 x 69.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Mounting type
Push-fit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1739143 Siemens Load monitor 24 V 1 pc(s) 3RF2920-0KA16
User & Safety Instructions
User & Safety Instructions 1739143 Siemens Load monitor 24 V 1 pc(s) 3RF2920-0KA16
Description
Solid-state contactor 3-phase 3RF2 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Instantaneous switching Spring-type terminal
