Name: Siemens Load monitor 24 V DC/AC 1 breaker, 1 maker 1 pc(s) 3RF2920-0KA13 Overload, Underload
Brand: Siemens
SKU: 1751271
Availability: BackOrder

An electrical switching device with multiple adjustment options, two green buttons, and labels for various connections.

An open electrical cabinet enclosure with various electrical components and wiring, arranged in multiple rows.

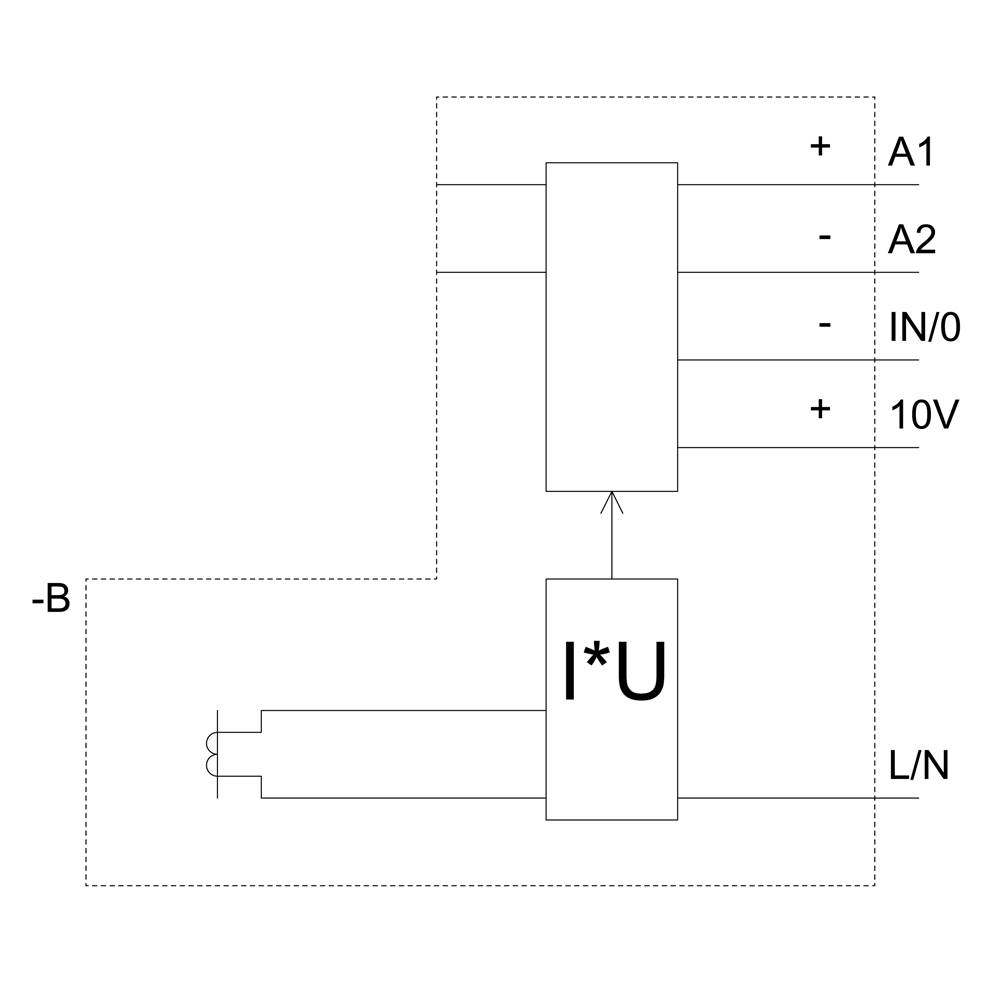

'Circuit diagram of an electrical circuit connecting L/N lines to an I*U converter for voltage and current at A1, A2, IN/0 and 10V.'

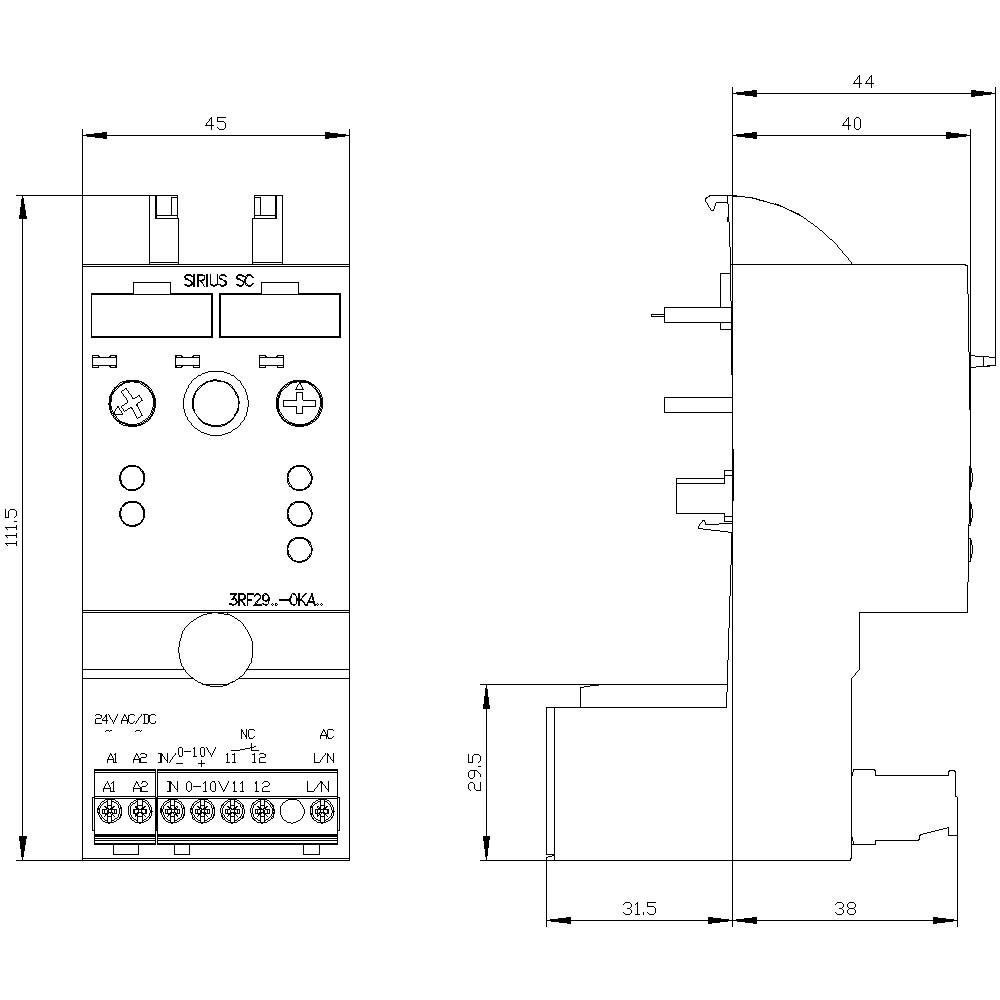

Technical drawing of an electronic component with dimensions. Front and side views show connections and measurements in millimetres.

1/4

Image similar

Product type

Load monitor

Functions

Overload

Underload

Contact type

1 breaker

1 maker

Type

3RF2920-0KA13

Operating voltage

24 V DC/AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 17 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 295.00 / piece)

€ 295.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Auxiliary contact type: 1 NO contact:1 NC contact
Mounting type: Pluggable

Product type: Load monitor

Type: 3RF2920-0KA13

Functions: Overload
Underload

Operating voltage: 24 V DC/AC

Features: pluggable

Contact type: 1 breaker
1 maker

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 111.5 mm

Depth: 69.5 mm

Dim: (W x H x D) 45 x 111.5 x 69.5 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Mounting type: Push-fit

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1751271 Siemens Load monitor 24 V DC/AC 1 breaker, 1 maker 1 pc(s) 3RF2920-0KA13 Overload, Underload

User & Safety Instructions

User & Safety Instructions 1751271 Siemens Load monitor 24 V DC/AC 1 breaker, 1 maker 1 pc(s) 3RF2920-0KA13 Overload, Underload

Description

Contactor, AC-1, 60 A 110 V DC, 0.7 ... 1.25* Us, With electronic control unit Integrated varistor, 1 NO + 1 NC solid-state-compatible 1 NO + 1 NC conventional 4-pole, Size S2, Spring-type terminal !!! Phased-out product !!! Successor is SIRIUS 3RT2
