Siemens LZX:RT424012 Plug-in relay 2 change-overs Piece 1 pc(s)

EAN:
Part number:
Item no:
A rectangular electrical relay with the inscription 'SCHRACK RT314024', suitable for 24V DC and 250V AC.
An electrical control cabinet with various electrical components and wiring; indicator lights at the top show the operational status.
A diagram with a rectangular block 'K' on the left side, connected to several numbered lines ending on the right.

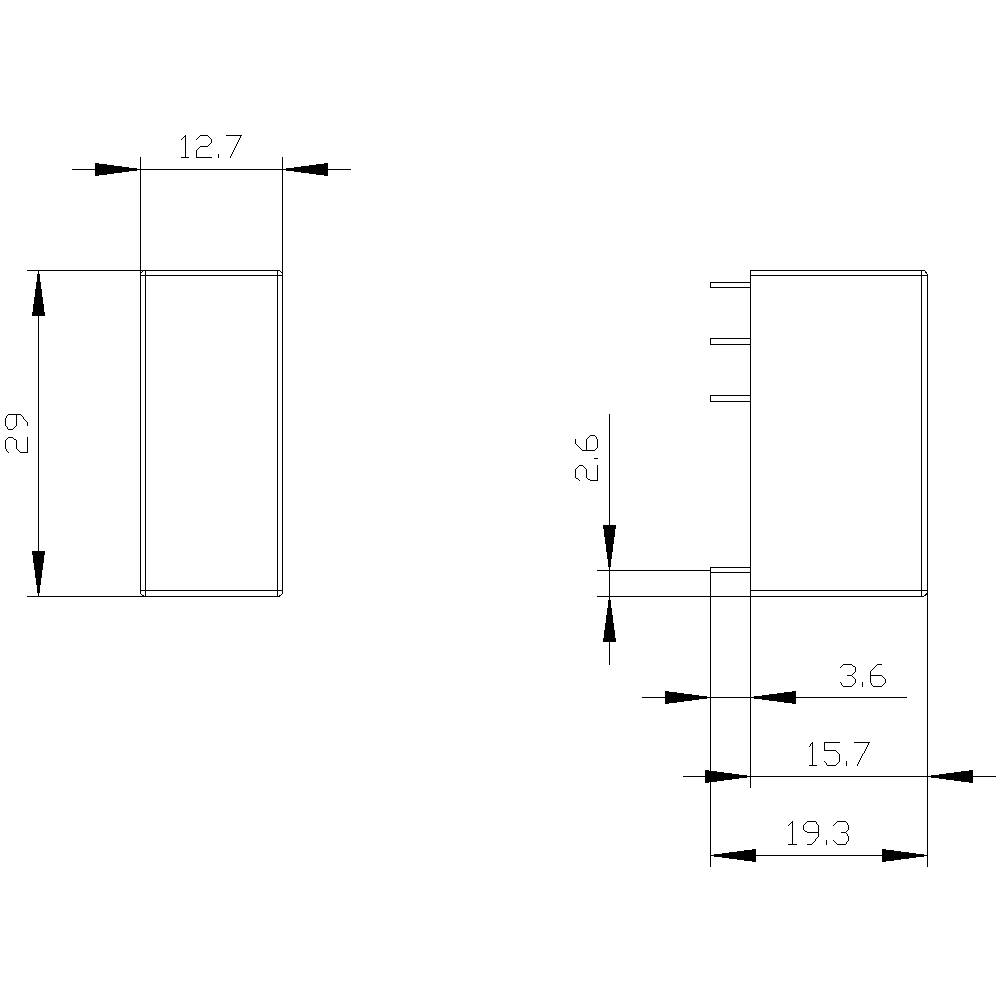

Technical drawing of a rectangular component with side view and front view. Dimensions are 29 x 12.7 mm and 15.7 x 19.3 mm.
1/4
Image similar
Packaging type
Piece
Product type
Plug-in relay
Contact type
2 change-overs
Type
LZX:RT424012
Connection
Jack connector
Datasheet (PDF)
Fast track dispatch on Tue 27 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 8.99 / piece)
€ 8.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: socket mounting
  • Execution of the switching function: Switch
  • Thermal current: 8 A
  • Power loss: 1 W
Packaging type

Piece

Product type

Plug-in relay

Type

LZX:RT424012

Connection

Jack connector

Max. pick-up voltage

12 V DC

Contact type

2 change-overs

Contact material

AgNi 90/10

Electrical lifespan

100000

Durability

3.0E7

Coil voltage rating

1 W

Features

pluggable

Max. temperature

+85 °C

Min. temperature

-40 °C

Depth

19.5 mm

Width

12.7 mm

Height

29 mm

Dim

(W x H x D) 12.7 x 29 x 19.5 mm

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1702442 Siemens LZX:RT424012 Plug-in relay 2 change-overs Piece 1 pc(s)

Datasheet 1702442 Siemens LZX:RT424012 Plug-in relay 2 change-overs Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1702442 Siemens LZX:RT424012 Plug-in relay 2 change-overs Piece 1 pc(s)

Description

SIVACON S4 Top plate retrofit IPX1 Width 400 mm Depth 800 mm
