Image similar

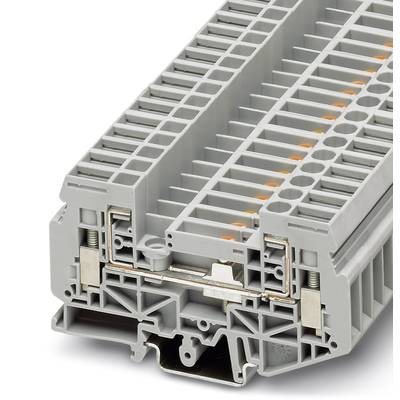

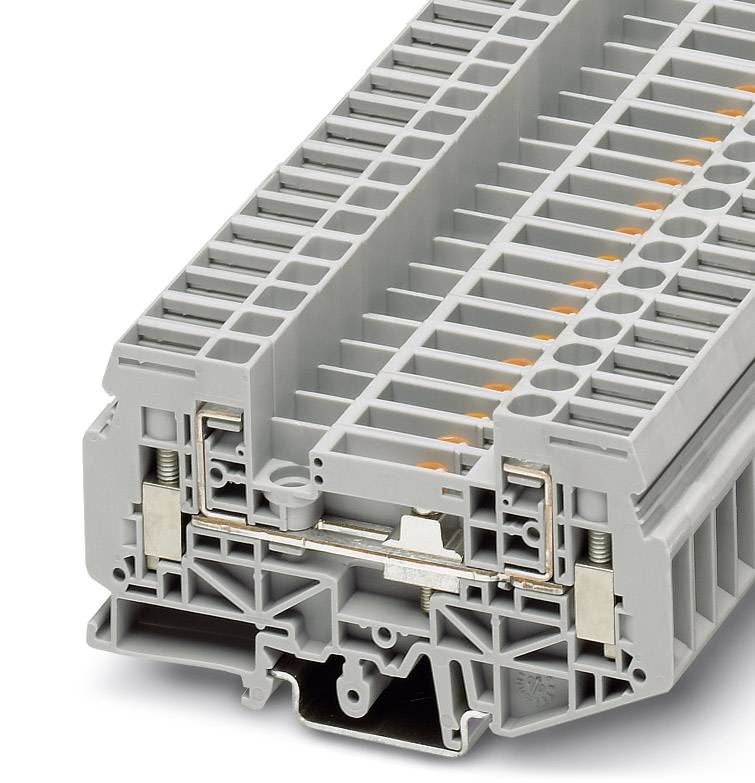

Slide-type terminal block UGSK 6 3026285 Phoenix Contact
Packaging type
Piece
Product type
Slider terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 7.98 / piece)
€ 399.00
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Slider terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
400 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3026285
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UGSK 6
- Dim
(L x W x H) 91 x 8.2 x 51 mm
- Width
8.2 mm
- Height
51 mm
- Length
91 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 565360 Slide-type terminal block UGSK 6 3026285 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565360 Slide-type terminal block UGSK 6 3026285 Phoenix Contact
Description
Slide-type terminal block, Connection method: Screw connection, Cross section: 0.5 mm² -10 mm² , AWG: 20 - 10, Width: 8.2 mm, Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: gray
