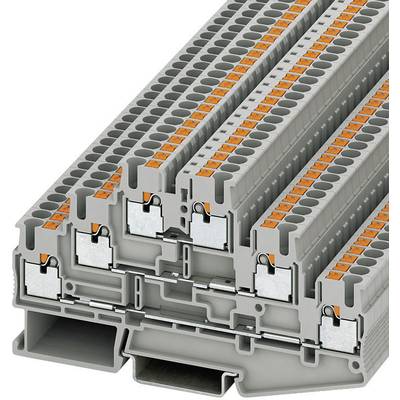

Phoenix Contact PT 2,5-3L 3210499 Multiport terminal Number of pins: 6 0.14 mm² 2.5 mm² Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Multiport terminal
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
Highlights & Details
Multi-level terminal PT 2.5-3L
- PT 2,5-3L
Technical specifications
- Product type
Multiport terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
3
- Number of pins
6
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3210499
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 2,5-3L
- Dim
(L x W x H) 102 x 5.2 x 58 mm
- Width
5.2 mm
- Height
58 mm
- Length
102 mm
- Weight
0.02
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Nominal current (details)
26 A
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 733476 Phoenix Contact PT 2,5-3L 3210499 Multiport terminal Number of pins: 6 0.14 mm² 2.5 mm² Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733476 Phoenix Contact PT 2,5-3L 3210499 Multiport terminal Number of pins: 6 0.14 mm² 2.5 mm² Grey 1 pc(s)
Description
The three-level connection terminals PIT have three passage-levels in 5 mm slim terminal casing. They offer a high wiring density especially in cramped switching stations.
