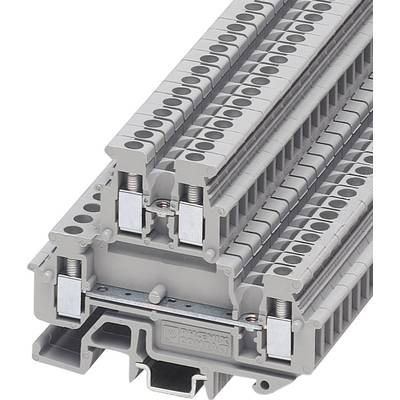

Phoenix Contact 1414064 MBKKB 2,5 Installation Terminal Blocks Grey
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Stripping length (max.)
7 mm
- Manufacturer part #
1414064
- Content
1 pc(s)
- Industrial packaging
No
- Type
MBKKB 2,5

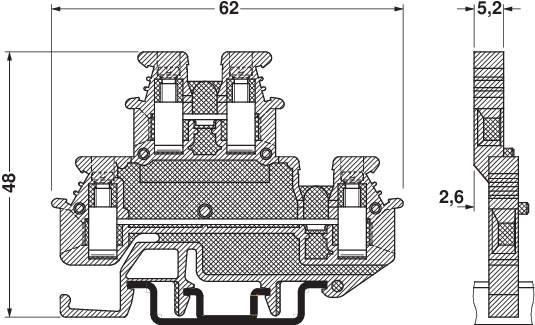

- Dim
(L x W x H) 62 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
62 mm
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- Nominal voltage (details)
500 V (at 4 mm²)
- Nominal current (details)
24 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 743159 Phoenix Contact 1414064 MBKKB 2,5 Installation Terminal Blocks Grey
User & Safety Instructions
User & Safety Instructions 743159 Phoenix Contact 1414064 MBKKB 2,5 Installation Terminal Blocks Grey
Description
Same as Part No. 74 31 32 and 74 31 46, but for mounting on 15 and 35 mm top-hat rails.
