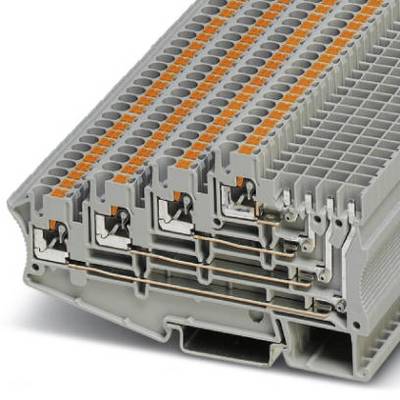

Multi-level terminal block PT 2,5-4L/1P 3012300 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Multiport terminal
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 6.20 / piece)
€ 310.08
plus VAT.
Highlights & Details
Multi-level terminal block PT 2,5-4L/1P
- PT 2,5-4L/1P
Technical specifications
- Product type
Multiport terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
4
- Number of pins
8
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
250 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3012300
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PT 2,5-4L/1P
- Dim
(L x W x H) 105.6 x 5.2 x 59 mm
- Width
5.2 mm
- Height
59 mm
- Length
105.6 mm
- Flammability rating
V0
Documents & Downloads
Datasheet
Datasheet 719628 Multi-level terminal block PT 2,5-4L/1P 3012300 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719628 Multi-level terminal block PT 2,5-4L/1P 3012300 Phoenix Contact
Description
Multi-level terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
