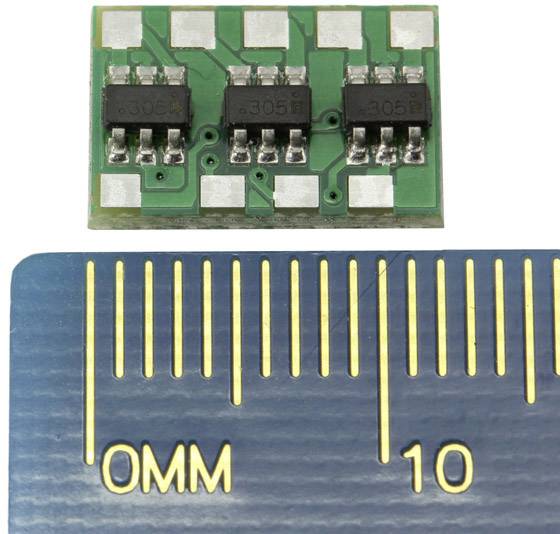

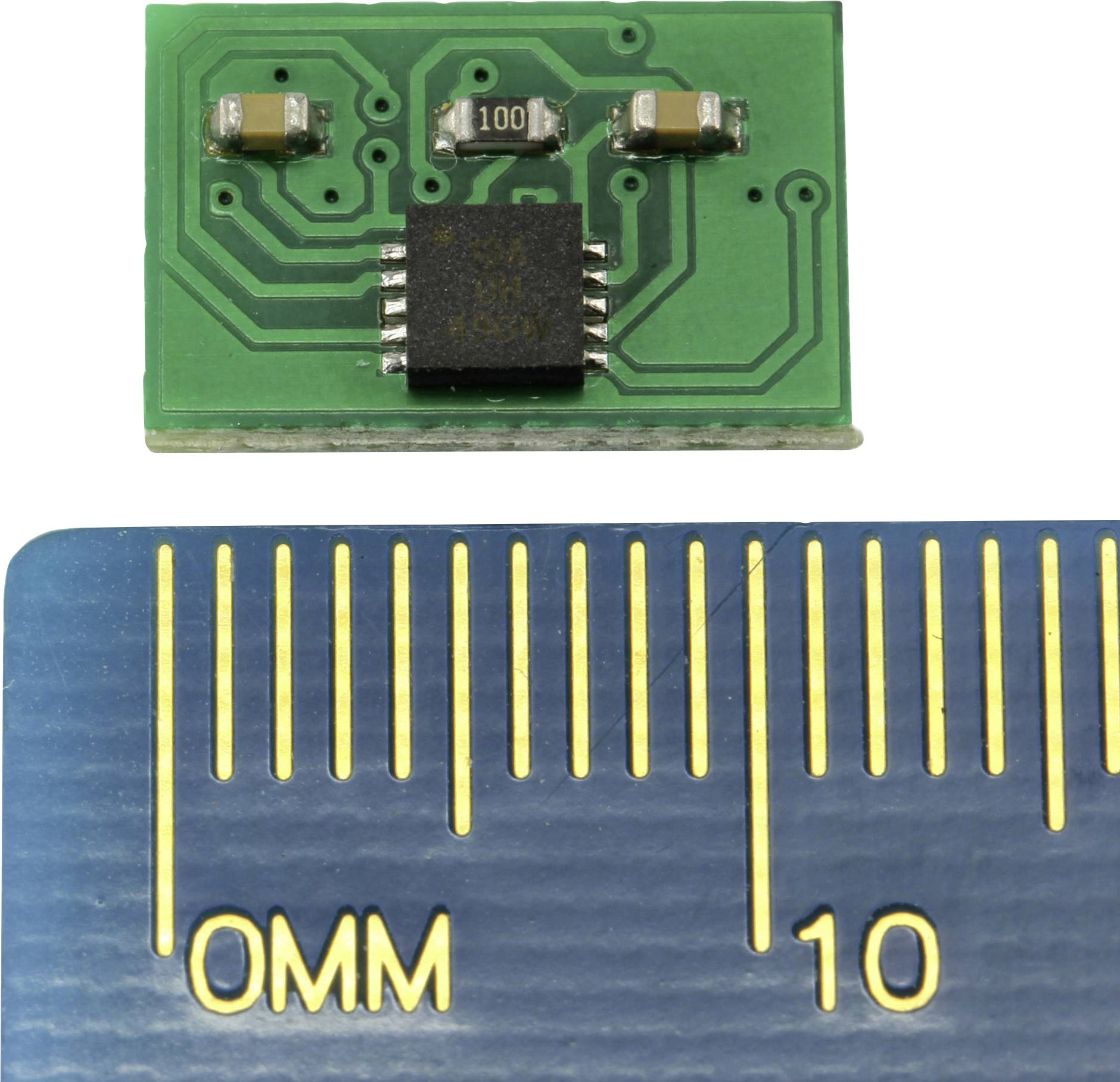

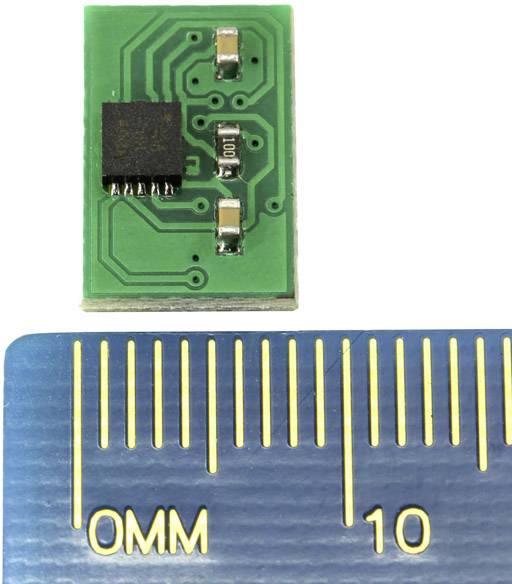

Sol Expert 19600 Lighting module 2.7 - 5 V (L x W x H) 12 x 7.8 x 3.1 mm

This MircoALF has been designed for all those who want to switch the indicators, the driving light, warning light and even two additional rotating beacons comfortably and in the smallest of spaces (e.g. in a semi-trailer). All functions are switched via a proportional channel of the receiver. In addition, several LEDs or other consumers can be switched by the high-quality end stages with a load capacity of up to 500mA.
Despite the small dimensions, the soldering pads are sufficiently dimensioned so that the cables can be soldered on easily.
The LEDs to be connected must be equipped with a series resistor for current limitation. However, you can also use our 3.7 volt LEDs at any time (such as LR-K, etc.), which have already integrated the required resistance in the cable. Thus, the installation of light functions is reserved not only for the professionals.

This text is machine translated.
