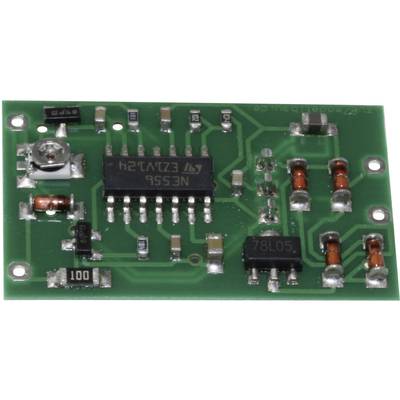

Sol Expert PWM Speed control 6 - 18 V (L x W x H) 31 x 20 x 8 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Speed control for micro motors
- Model Car Tuning
Technical specifications
- Size
Universal
- Output current
100 mA
- Voltage (min.)
6 V
- Voltage (max.)
18 V
- Length
31 mm
- Width
20 mm
- Height
8 mm
- Dim
(L x W x H) 31 x 20 x 8 mm
- Weight
3.5 g
- Age category
15 years and over
- Product type
Speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 498908 Sol Expert PWM Speed control 6 - 18 V (L x W x H) 31 x 20 x 8 mm
Description
Small 0,3-6 V motors can also be attached to a higher voltage to operate, the PWM. At the input, with 6-18 V DC/AC. The circuit generates a pulse width-modulated voltage of 5 V/DC. Via the small trimmer can be the modulation and therefore the speed in a wide range. The circuit is suitable for example for the control of special functions in the RC model (radar antenna,
Windshield wiper,…) and Railway Modeling (wind wheels, kirmes merry-go-round, …). In the case of higher input voltage or higher current draw is the module accordingly to cool to prevent overheating and unintentional changes the speed. Operating voltage 6 - 18 V DC/AC; output voltage 5 V DC (modulated); output current: max. 100 mA.
