Buy Sommer Cable 100-1156-24C Signal wire 24 x 2 x 0.26 mm² + 48 x 0.26 mm² Grey Sold per metre | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

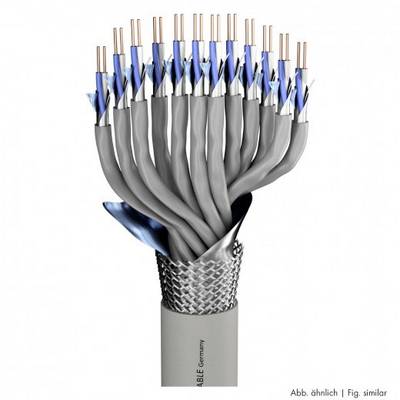

A multi-core cable with its outer sheath removed reveals individual wires and shielding. Text 'Cable Germany'. Similar illustration.

A multi-core cable with its outer sheath removed reveals individual wires and shielding. Text 'Cable Germany'. Similar illustration.

Image similar

Sommer Cable

Product type

Signal wire

No. of leads

48 x

Cross section (each core)

0.26 mm²

No. of leads (part 2)

48 x

Cross section (each core) (part 2)

0.26 mm²

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 38.99 / piece)

€ 38.99

incl. VAT

Your Right to Cancel does not cover goods sold by the metre.

14-day return policy included

Report legal concerns

Technical specifications

Shielding: Tinned copper braid 85% + aluminum foil
Shielding (audio): Tin-plated lead AWG26 (0.4 mm) + AL film
Design: Round
Cover. opt. [%]: 100
BPVo Euro class: DCA
Combustible load per m [kWh]: 1.53
Properties: FRNC flame-resistant, analogueue, OFC high-purity copper, halogen-free / LSZH, Digital 110 Ω AES / EBU
Application area: Installation, ELA 100 V.
Sheath material: FRNC

Product type: Signal wire

No. of leads: 48 x

Cross section (each core): 0.26 mm²

No. of leads (part 2): 48 x

Cross section (each core) (part 2): 0.26 mm²

Cross section: 24 x 2 x 0.26 mm² + 48 x 0.26 mm²

Cable features: Solid wire

Outside Ø: 23.6 mm

Width: 23.6 mm

Height: 23.6 mm

Factory colour: Grey

Content: Sold per metre

AWG (min.): 26

AWG max.: 23

Sold per metre: Yes

Halogen-free: Yes

Shielded: Yes

Manufacturer part #: 100-1156-24C

Insulation material: PE

Min. temperature range (flexible installation): -30 °C

Max. temperature range (flexible installation): +70 °C

Core layout: [24(J-02YS0.57MM)(ST)]CH

Type: 100-1156-24C

Max. length sold by the metre: 100 m

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2307958 Sommer Cable 100-1156-24C Signal wire 24 x 2 x 0.26 mm² + 48 x 0.26 mm² Grey Sold per metre

Description

It can be a bit stiffer...
but at least as cheap. This is, in summary, exactly what was required for a modulation cable with solid wire. Due to the simple design, LOGICABLE does not cost the world, but fulfills all the important criteria in the fixed installation:
The LOGICABLE multi-pair cable guarantees outstanding electrical data (capacitance wire/wire 43 pF/m), an excellent overall shielding (copper braid + aluminum foil), a halogen-free and also flame-resistant sheath according to the highest protection class (FRNC-IEC 60332.3, test type C) and individually insulated, numbered and shielded wire pairs (PiMF). The advantage of solid wire cables is that very good attenuation values and a low capacitance can be achieved by quite simple means, which is very important for the large running lengths of these cables. In addition, an optimal connection to LSA + pins is possible.

Please note that cables of this type are not suitable for mobile use.

This text is machine translated.

Related products can be found here

2-Core & Multicore Braid Connector Clips & Single Wire Connectors Harmonised & Certified Cables Button Cells Monitor Cables Universal Enclosures Toggle Switches Wired LEDs Side Cutters Power Strips AV Connectors Heat Shrink Tubes Jack Plugs Rocker Switches Audio Cables Push Buttons LED Light Bulbs Adhesive Tape

Description

It can be a bit stiffer...
but at least as cheap. This is, in summary, exactly what was required for a modulation cable with solid wire. Due to the simple design, LOGICABLE does not cost the world, but fulfills all the important criteria in the fixed installation:
The LOGICABLE multi-pair cable guarantees outstanding electrical data (capacitance wire/wire 43 pF/m), an excellent overall shielding (copper braid + aluminum foil), a halogen-free and also flame-resistant sheath according to the highest protection class (FRNC-IEC 60332.3, test type C) and individually insulated, numbered and shielded wire pairs (PiMF). The advantage of solid wire cables is that very good attenuation values and a low capacitance can be achieved by quite simple means, which is very important for the large running lengths of these cables. In addition, an optimal connection to LSA + pins is possible.

Please note that cables of this type are not suitable for mobile use.

This text is machine translated.
