Speech microphone Monacor ATS-22R Transfer type (details):Digital, Radio
EAN:
Part number:
Item no:
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Highlights & Details

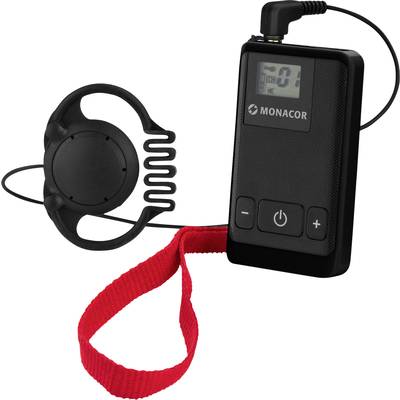

16-channel miniature receiver ATS-22R
- High immunity to interference through digital transmission
- On speech optimized frequency range
- Up to 4 different channels can be operated in parallel free of interference
- Particularly small and lightweight transmitter and receiver
- Free registration and in the EU
- High volume output
Technical specifications
- Product type
Speech microphone
- Transfer type
Digital
Radio
- On/off switch
Yes
- Weight
37 g
- Width
40 mm
- Height
87 mm
- Length
12 mm
- Dim
(L x W x H) 12 x 40 x 87 mm
- Interfaces
Micro USB B (USB 2.0)
- No. of frequencies (adjustable)
16
- No. of transmitters
1
- Frequency
863 - 865 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1416732 Speech microphone Monacor ATS-22R Transfer type (details):Digital, Radio
Description
As 'Tour Guide System', trainer-student system and for all other applications where a certain voice source to be distributed for one or more of the receiver
This text is machine translated.
This text is machine translated.
Features
- Digital 16-channel voice transmission system, 863-865 MHz
- 16-channel miniature receiver with 2-way communication function
- Intercom function with the transmitter ATS-22T via button
- Built-in microphone
- Suitable ear clip headphones is included
- Automatic shut-off after 20 minutes without input signal (Power-saving function)
- LCD display for channel, carrier signal, volume control and battery status
- Power supply via integrated rechargeable lithium battery (3.7 V/600 mAh)
- Micro-USB charging connection for ATS-12 CB, ATS-35 CB or optional USB charger
Scope of delivery
- Ear clip headphones.
