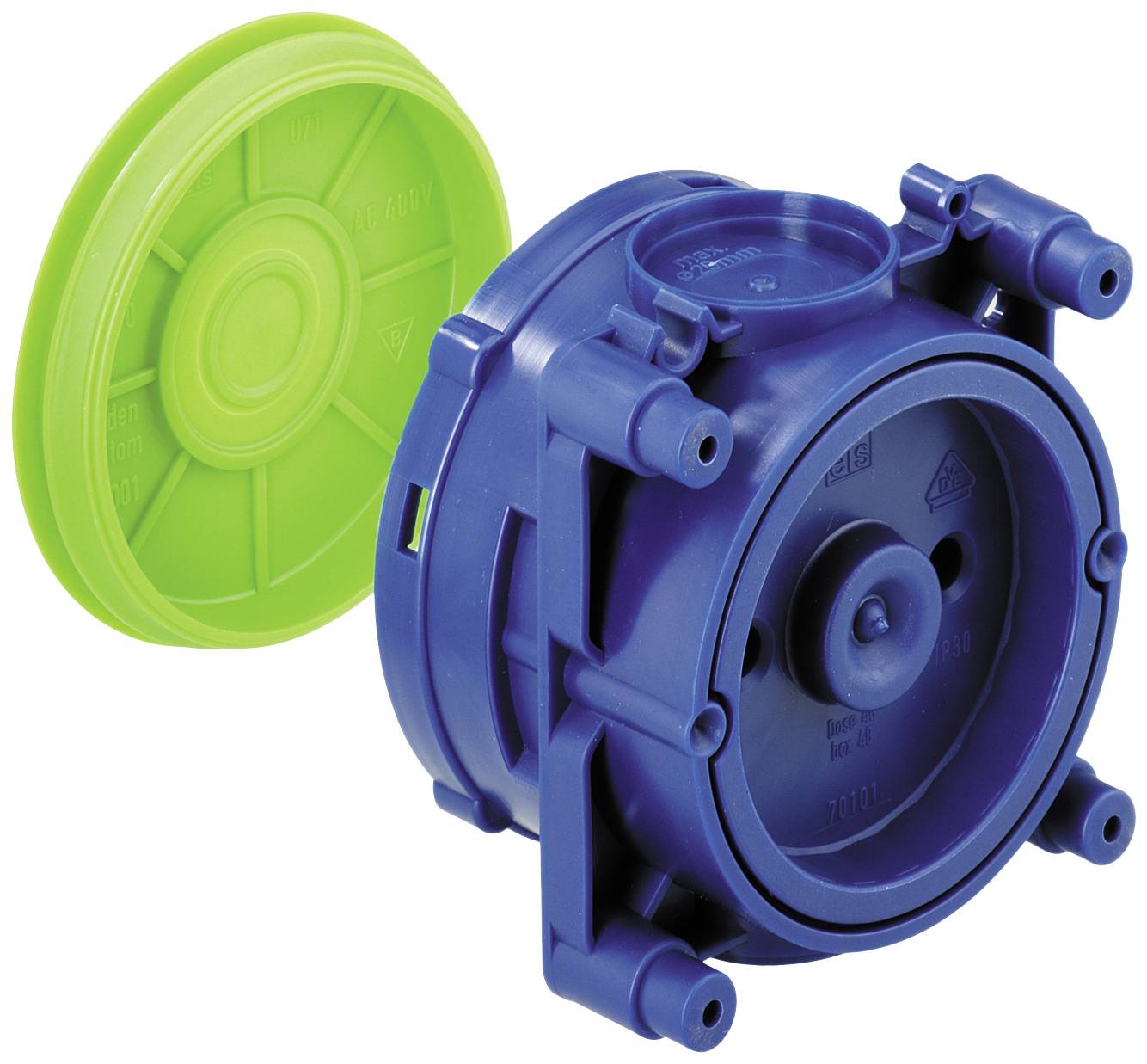

Spelsberg 97104501 Dry lining box Halogen-free, Windproof (Ø x H) 60 mm x 50 mm 1 pc(s)

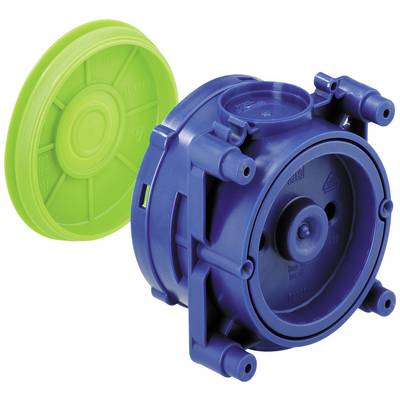

A blue plastic component with a green, removable lid, likely part of an installation or machine, in close-up.
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.49 / piece)
€ 2.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • IP30 protection
  • Cover type: Blind cover, snap-on
  • Number of Introductions: 2
  • For cable diameter 1 - 25 mm
  • For pipe diameter 25 mm
  • Introduction from behind: Yes
  • Can be coupled: Yes
  • Attachment of the devices: Screws or spreading
  • Pipe lock: Yes
Product type

Dry lining box

Features

Halogen-free

Windproof

Mounting type

Concrete

Type

single, round, plastic

Content

1 pc(s)

Dim

(Ø x H) 60 mm x 50 mm

Length

71 mm

Width

71 mm

Height

50 mm

(Ø)

60 mm

Weight

0

Concrete building

Other

71

Single

TRUE

Round

Untreated

60 mm

Built-in installation box (device box)

71 m

Plastic

1-25 mm

IP30

Blind cover

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2378994 Spelsberg 97104501 Dry lining box Halogen-free, Windproof (Ø x H) 60 mm x 50 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2378994 Spelsberg 97104501 Dry lining box Halogen-free, Windproof (Ø x H) 60 mm x 50 mm 1 pc(s)

Description

Device socket for concrete installation, 2-part, 2 screw domes with screw distance 60mm, can be combined in the standard distance 71mm, fully insulated cable transition, suitable for all switching types and counterformwork, VDE certified according to DIN EN 60670 (VDE 0606), for nail and magnetic fixing

This text is machine translated.

Hints

Safety-relevant component - installation only by skilled workers
