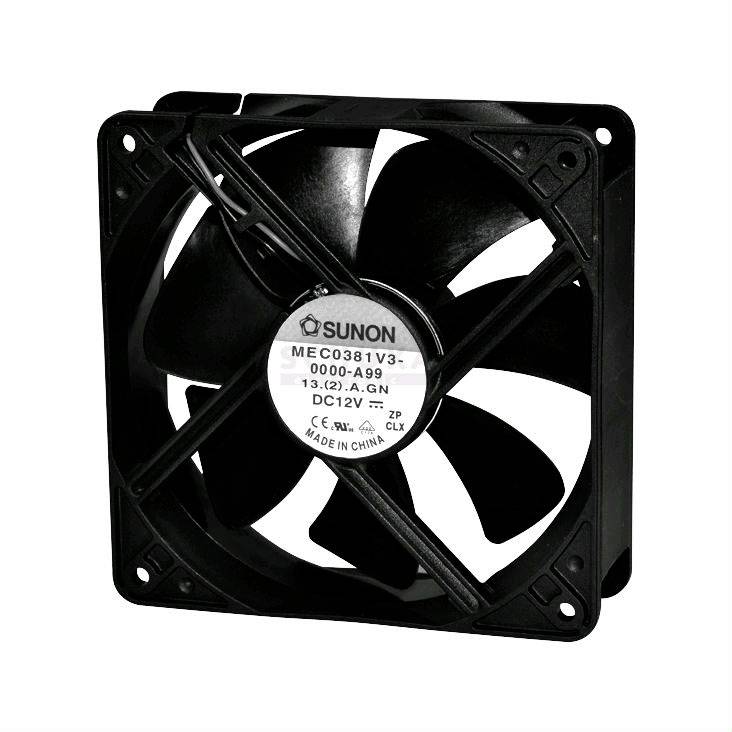

Sunon MEC0381V1-A99 Axial fan 12 V DC 234.4 m³/h (L x W x H) 120 x 120 x 38 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
10 W
Type of bearing
Vapo (magnetic)
Air flow rate
234.4 m³/h
Datasheet (PDF)
9 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€
Only 9 Piece(s) available
Technical specifications
- Product type
Axial fan
- Type
MEC0381V1-A99
- Nominal voltage
12 V DC
- Max. operating voltage
12 V
- Operating voltage
12 V (max)
- Max. current consumption
833 mA
10 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
3100 U/min
- Noise emission (max.)
48 dB
- Air flow rate
234.4 m³/h
- Connection
Open end cable
- Cable length
0.33 m
- Material
Thermoplastic
PBT
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
120 mm
- Width
120 mm
- Height
38 mm
- Dim
(L x W x H) 120 x 120 x 38 mm
Documents & Downloads
Datasheet
Datasheet 2358011 Sunon MEC0381V1-A99 Axial fan 12 V DC 234.4 m³/h (L x W x H) 120 x 120 x 38 mm
