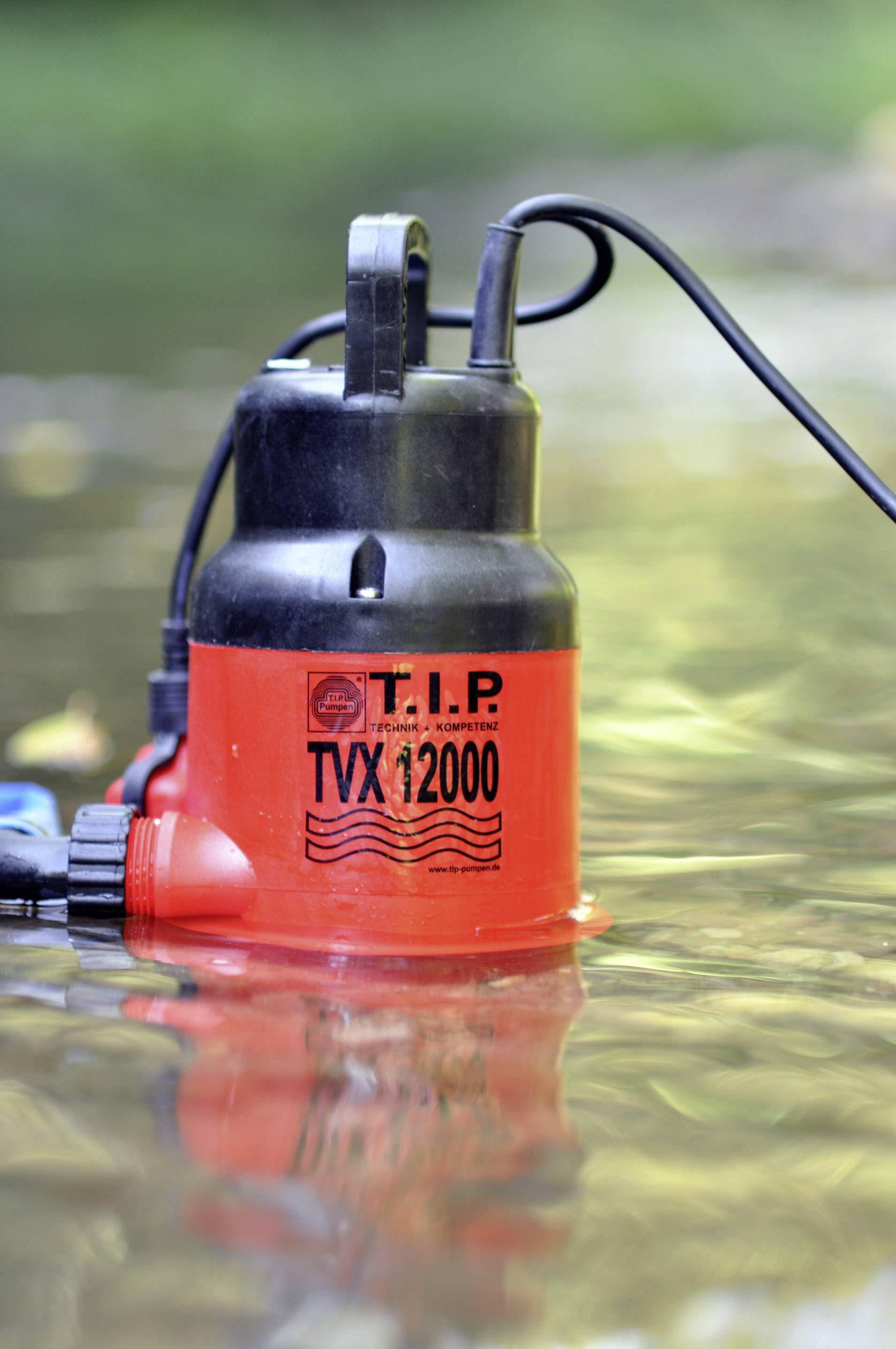

T.I.P. - Technische Industrie Produkte 30261 TVX 12000 Effluent sump pump 10800 l/h 6 m
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Highlights & Details
Waste water submersible pump TVX 12000
- Max. flow 10800 l/h
- Maximum pump lift: 6 m
- Max. solids size 20 mm
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
6 m
- Max. feed rate
10800 l/h
- Max. discharge pressure
0.6 bar
- Operating voltage
230 V
- Power consumption (P1)
480 W
- Pressure connection
39.0 mm (1 1/4") IT
- Max. size of solids
20 mm
- Immersion depth
7 m
- Max. cable length
10 m
- Float switch
Yes
- Length
180 mm
- Width
170 mm
- Height
310 mm
- Dim
(L x W x H) 180 x 170 x 310 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 275965 T.I.P. - Technische Industrie Produkte 30261 TVX 12000 Effluent sump pump 10800 l/h 6 m
User & Safety Instructions 275965 T.I.P. - Technische Industrie Produkte 30261 TVX 12000 Effluent sump pump 10800 l/h 6 m
Warranty Terms
Warranty Terms 275965 T.I.P. - Technische Industrie Produkte 30261 TVX 12000 Effluent sump pump 10800 l/h 6 m
Description
With its high capacity can be with the TVX 12000 a large amount of liquid in a short period of time. This makes this model in particular to Notentwasserungsmassnahmen.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Incl. Hose connection sheets 32 mm (1 1/4") and 39 mm (1 1/4") internal thread.
