T.I.P. - Technische Industrie Produkte 30268 TVX 7000 Effluent sump pump 7000 l/h 5 m
EAN:
Part number:
Item no:
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 2 Piece(s) available
Highlights & Details

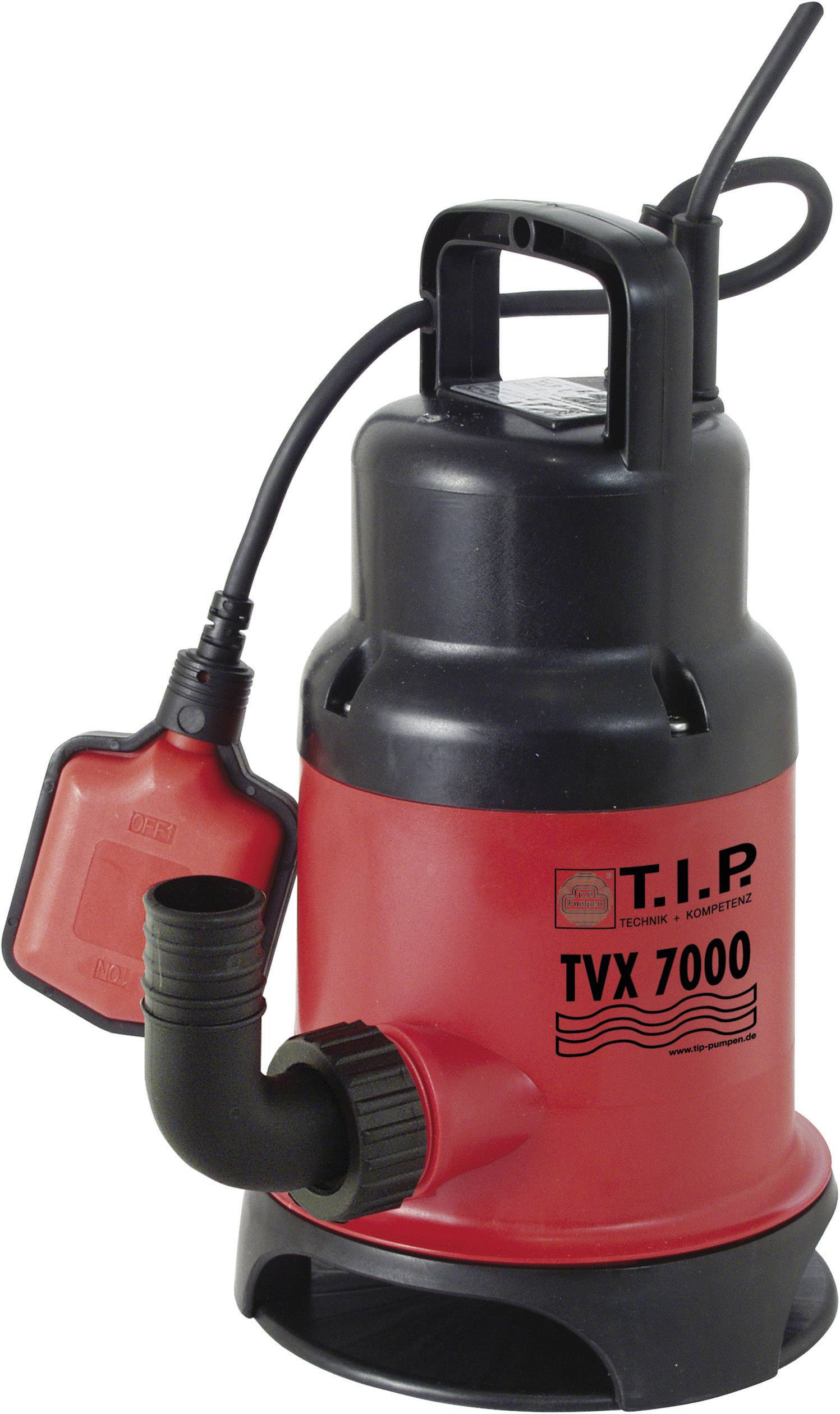

Waste water submersible pump TVX 7000
- Maximum flow 7000 l/h
- Maximum pump lift: 5 m
- Max. solids size 20 mm
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
5 m
- Max. feed rate
7000 l/h
- Max. discharge pressure
0.5 bar
- Operating voltage
230 V
- Power consumption (P1)
300 W
- Pressure connection
39.0 mm (1 1/4") IT
- Max. size of solids
20 mm
- Immersion depth
7 m
- Max. cable length
10 m
- Float switch
Yes
- Length
180 mm
- Width
170 mm
- Height
305 mm
- Dim
(L x W x H) 180 x 170 x 305 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 275963 T.I.P. - Technische Industrie Produkte 30268 TVX 7000 Effluent sump pump 7000 l/h 5 m
Warranty Terms
Warranty Terms 275963 T.I.P. - Technische Industrie Produkte 30268 TVX 7000 Effluent sump pump 7000 l/h 5 m
Description
All-purpose-submersible pump for sewage and waste water up to 20 mm grain size. Very versatile due to automatic operation thanks to float switch. For the emptying of ditches and ponds, for the cellar drainage for flooding or waste water Sewage System in rural areas.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Incl. Hose connection sheets 32 mm (1 1/4") and 39 mm (1 1/4") internal thread.
