Name: TAMS Elektronik 43-02127-01 WD-12 Point decoder
Brand: TAMS Elektronik
SKU: 3775665
Availability: InStock

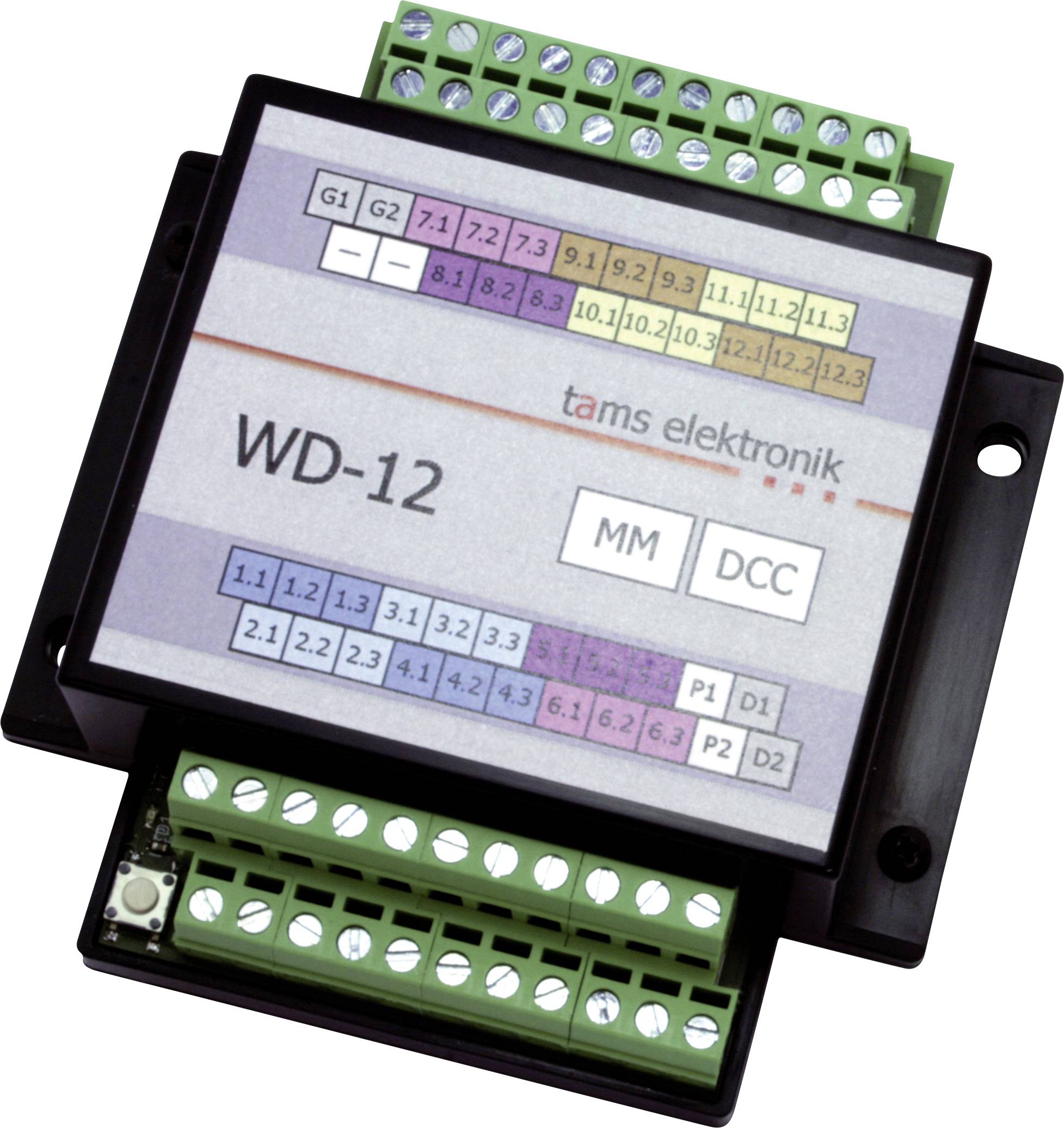

Photo of a Tams Elektronik WD-12 control module with green screw terminals and labeled MM and DCC mode buttons.

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TAMS Elektronik Point decoder WD-12th

Switches cheaply, reliably and conveniently!
12-way point decoder with adjustable on-time
Digital formats, DCC and Motorola

Technical specifications

Digital formats: Motorola and DCC (corresponding to NMRA and RCN standard)
Address range: MM: 1020 point addresses, DCC: 2040 point addresses or 510 vehicle decoder addresses (locomotive addresses)
Number of outputs: 24 (= 12 output pairs)
Supply voltage:
- Digital voltage from the booster circuit
- Or separate transformer (10 – 18 V AC voltage) or separate power adapter (12 – 24 V DC voltage)
- Maximum current per output: Up to 2 seconds: 1,500 mA / Duration: 800 mA
Board dimensions: approx. 74 x 105 mm.
Dimensions including housing: 100 x 107 x 35 mm

Product type: Point decoder

Decoder manufacturer: Tams

Digital format: MM
DCC

Type: Accessories

Selectable effects: Motor-operated points and switch-off

No. of outputs: 24 x

Address range: MM: 1020 Weichenadressen, DCC: 2040 Weichenadressen oder 510 Fahrzeugdecoderadressen (Lokadressen)

Current at outputs (max.): 800 mA

Suitable for analogue operation: No

Length: 100 mm

Width: 107 mm

Height: 35 mm

Dim: (L x W x H) 100 x 107 x 35 mm

Manufacturer part #: 43-02127-01

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3775665 TAMS Elektronik 43-02127-01 WD-12 Point decoder

Description

For direct control of:
- Points and form signals with double-coil drive (switching current: Max. 1 A)
- Decoupler (switching current: Max. 1 A)
- 1 or 2-level light signals or switch lanterns with LEDs

Control : optional via
- Switch addresses: DCC: 1 – 2040 | Motorola: 1 – 1020
- Or DCC or MM locomotive addresses

Address setting: Optional
- With a programming button
- Or by setting the CV variables in DCC format
Assignment of the 12 switch outputs / output pairs to three any 4-way address blocks

Other adjustment options:
- On-time
- Control via points or locomotive addresses
