Name: TAMS Elektronik 43-02316-01 WD-31 Point decoder Module
Brand: TAMS Elektronik
SKU: 2884451
Availability: InStock

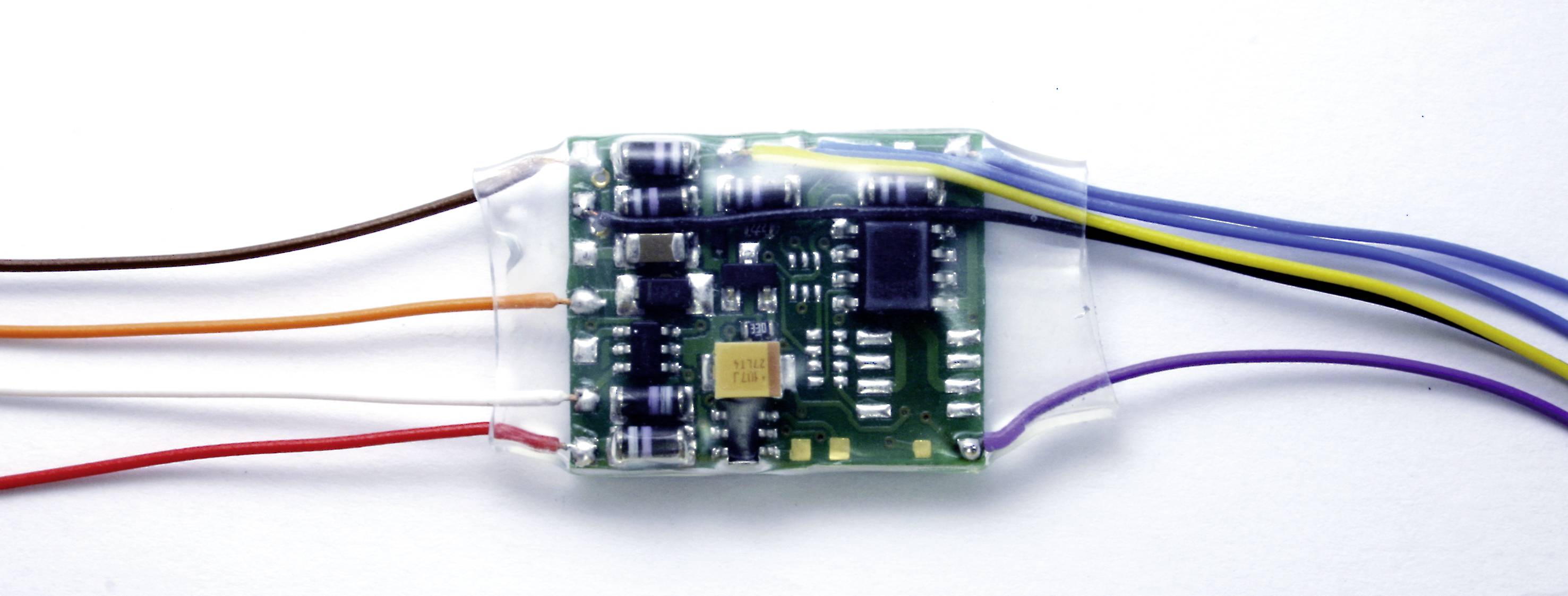

A small, green circuit board with several electronic components, connected by five coloured wires.

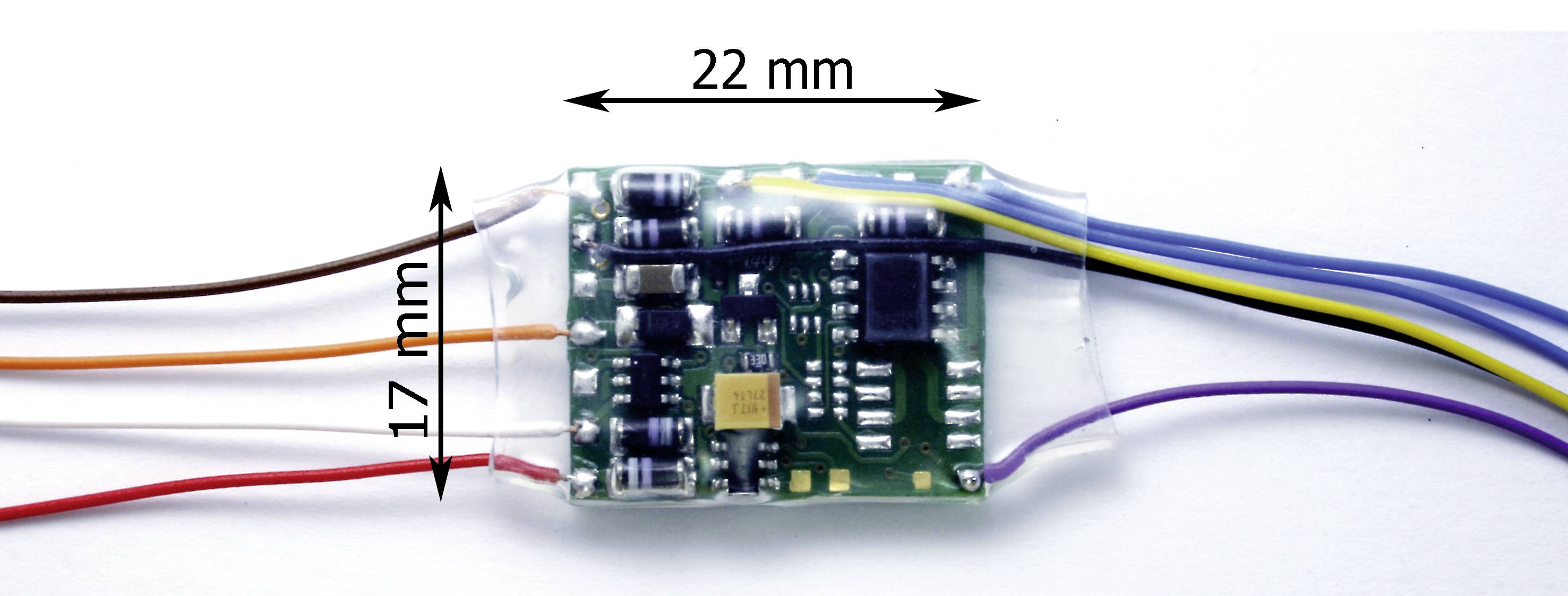

Electronic circuit with cable connections, approximately 22 mm wide and 17 mm high. Rectangular printed circuit board with various components.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 26.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Weight approx. 4 g
Power supply: Digital voltage from booster circuit (12 - 24 volts)
Power consumption (without connected consumer load): Max. 40 mA

Product type: Point decoder

Decoder manufacturer: Tams

Digital format: MM
DCC

Decoder type: Module

No. of outputs: 2 x

Address range: 1 - 2040

Max. total current: 1500 mA

System auto-recognition: Yes

Length: 35 mm

Width: 18 mm

Height: 5 mm

Age category: 15 years and over

Dim: (L x W x H) 35 x 18 x 5 mm

Manufacturer part #: 43-02316-01

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2884451 TAMS Elektronik 43-02316-01 WD-31 Point decoder Module

Description

For switching of a magnetic article or light main signal like switch and semaphore signal with double-coil drive, uncoupling or 2-term light-main signal with cross-fading. Additional output for an additional consumer can be switched either via its own address or together with the magnetic article or the light main signal. Control via switch position commands in the DCC or Motorola format with automatic format recognition. Programming with a DCC central unit via DCC configuration variables (CVS) or programming key (address only). Note: The button is not included.

This text is machine translated.

Features

Two outputs for connection of a magnetic item or light-skin signal. Maximum current per output: 1,500 mA (up to 2 s) | 800 mA (duration)
One output for any consumer (e.g. switch point light). Maximum current 300 mA
Electrically insulated with heat-shrink tubing
With soldered cables for the connections to the track, the switch or the main signal, the additional load and the programming button
Data formats: Motorola-I and –II, DCC (DCC/14, DCC/28, DCC/128, DCC/SDF corresponding to NMRA and RCN standard)
Number of Addresses: DCC-Format: 1 - 2040 | Motorola-Format: 1 - 1020

Scope of delivery

WD-31 point decoder
Double-sided adhesive pad (approx. 30 x 15 mm)
User manual.
