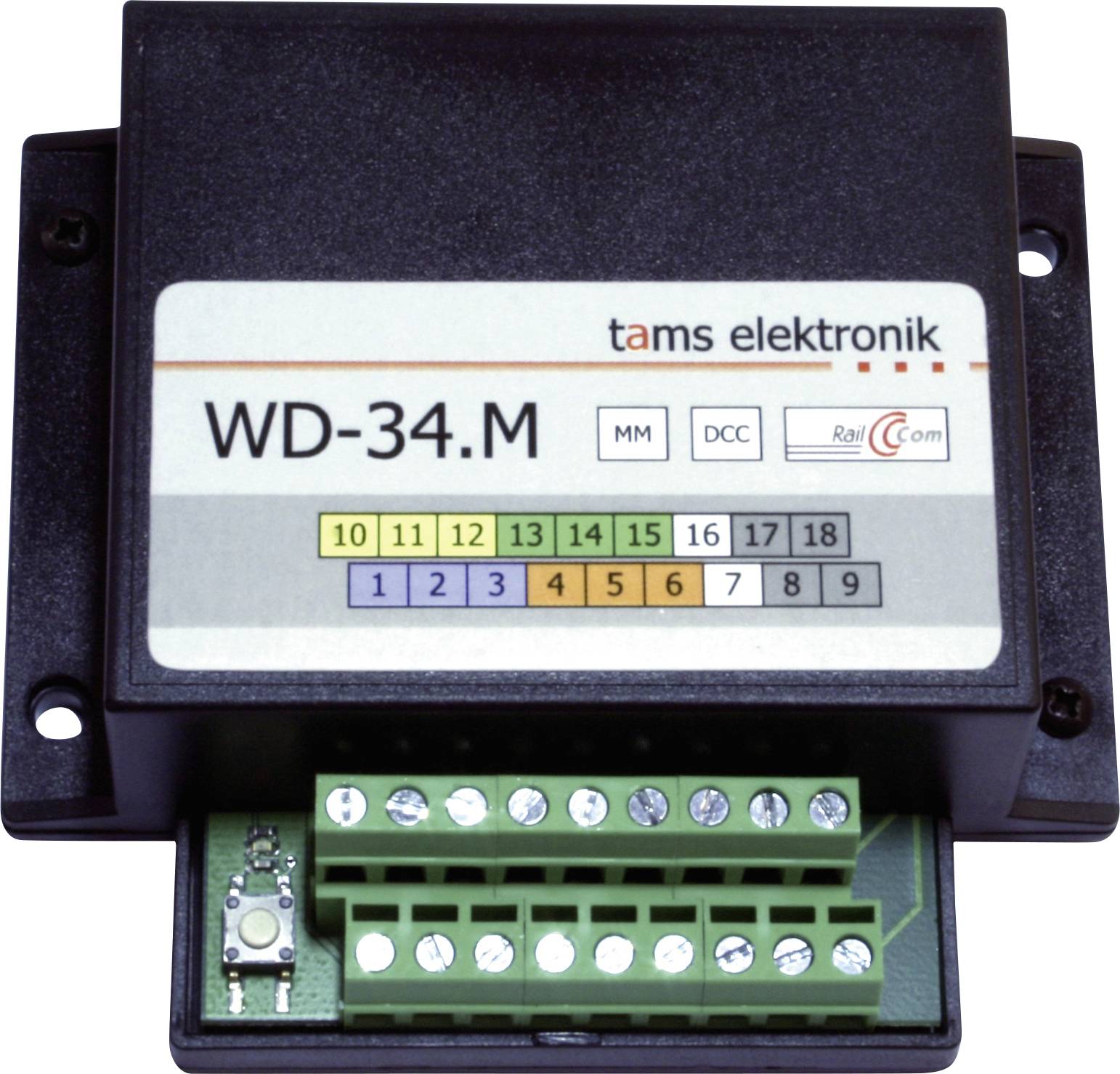

TAMS Elektronik point decoder WD-34.M
- Specially designed for controlling up to 4 motor-driven points (with or without limit stop).
- You can control up to 4 points with double coil drive or up to 8 other magnetic items.
- Mixed operation with motor switches and magnetic items possible.
- With adjustable On-Time.
Technical specifications
- Digital formats: Motorola and DCC (corresponding to NMRA and RCN standard)
- Address range: MM: 1020 point addresses, DCC: 2040 point addresses or 510 vehicle decoder addresses (locomotive addresses)
- Number of outputs: 8 (= 4 output pairs)
- Supply voltage:
- - Digital voltage from the booster circuit
- - Or separate transformer (10 – 18 V AC voltage) or separate power adapter (12 – 24 V DC voltage)
- - Maximum current per output : up to 2 seconds: 1,500 mA / Duration: 800 mA
- Board dimensions 72 x 82 mm
- Dimensions including housing: 100 x 90 x 35 mm
- Decoder manufacturer
Tams
- Digital format
MM
DCC
- Type
Accessories
- Selectable effects
Motor-operated points and switch-off
- No. of outputs
8 x
- Address range
MM: 1020 Weichenadressen, DCC: 2040 Weichenadressen oder 510 Fahrzeugdecoderadressen (Lokadressen)
- Current at outputs (max.)
800 mA
- Suitable for analogue operation
No
- RailCom support
Yes
- Length
100 mm
- Width
90 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 90 x 35 mm
- Manufacturer part #
43-02367-01
- UKCA
yes
- Product type
Point decoder
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775667 TAMS Elektronik 43-02367-01 WD-34.M Point decoder
Description
For controlling
- Motor driven points. An additional adapter is not necessary!
- Points with double coil drive
- Form signals with double coil drive
- Uncouplers
Programming:
- DCC panels: Setting all decoder properties via configuration variables (CVS).
- Alternatively: Setting the decoder address using a programming button.
- Motorola panels: Setting the decoder address using the programming button
Control
- With DCC or MM switch-over commands: Automatic format detection, mixed operation possible
- Alternatively with DCC locomotive commands
Adjustable switching time ("On-Time"):
The length of the pulses for switching magnetic items can be set in the CVS to a value between 50 ms and approx. 12 seconds.
This text is machine translated.
- Motor driven points. An additional adapter is not necessary!
- Points with double coil drive
- Form signals with double coil drive
- Uncouplers
Programming:
- DCC panels: Setting all decoder properties via configuration variables (CVS).
- Alternatively: Setting the decoder address using a programming button.
- Motorola panels: Setting the decoder address using the programming button
Control
- With DCC or MM switch-over commands: Automatic format detection, mixed operation possible
- Alternatively with DCC locomotive commands
Adjustable switching time ("On-Time"):
The length of the pulses for switching magnetic items can be set in the CVS to a value between 50 ms and approx. 12 seconds.
This text is machine translated.
Scope of delivery
- 1 point decoder WD-34.M, version: Finished device in the casing
