TDE Instruments Digalox DPM72-AV2 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Only 7 Piece(s) available
Highlights & Details
- 1 measurement input ±300 V AC/DC, 10 - 500 Hz
- 1 measurement input ±10 A AC/DC and 5 A AC for current transformers, 10 - 500 Hz
- LCD graphic display 16 gray scales 192 × 160 pixels
- White background lighting
- Pointer graphics and digital display
- Adjustable scale deflection and labeling
- Measured value recording for up to 14 days
- Bimetal function (averaging)

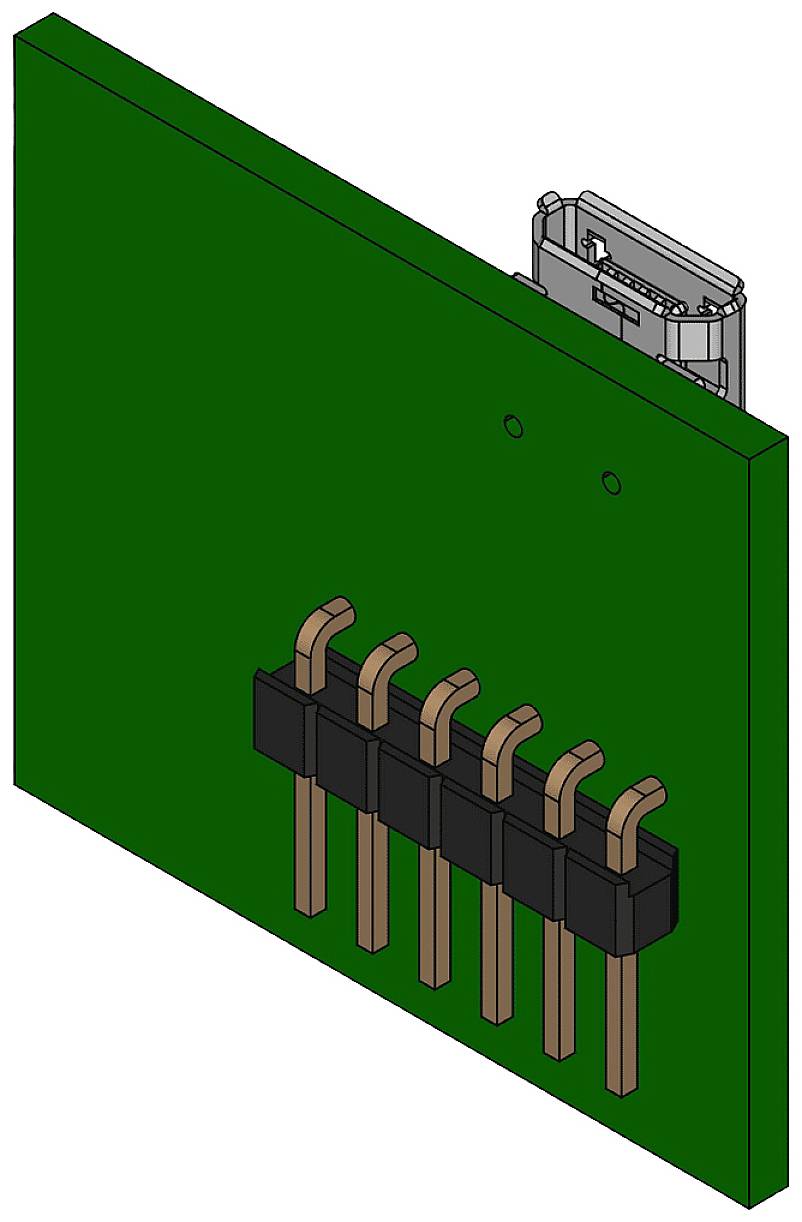

- USB interface (optional)
- Supply 12-24V AC/DC not galvanically isolated
- Measuring accuracy 1% true RMS
- PC software for individual configuration and recording of measured data (optional)
Technical specifications
- Product type
Digital rack-mount meter
- Reading type
AC voltage
DC voltage
Amperage
AC current
DC current
Frequency
- Reading range (min.)
-300 V
-10 A
10 Hz
- Type
Digalox DPM72-AV2
- Reading range (max.)
300 V
10 A
1000 Hz
- Display technology
LCD
IP65 (front)
IP10 (back panel)
- Recess width
68 mm
- Recess height
68 mm
- Operating voltage
12 V DC/AC
24 V DC/AC
- Dim
(L x W x H) 34 x 72 x 72 mm
- Weight
140 g
- Max. operating voltage
24 V DC/AC
- Min. operating voltage
12 V DC/AC
- Display lighting
white
- Recess depth
34 mm
- Factory colour
Black
- Width
72 mm
- Height
72 mm
- Length
34 mm
- Frame width
72 mm
Documents & Downloads
Datasheet
Datasheet 2390030 TDE Instruments Digalox DPM72-AV2 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 2390030 TDE Instruments Digalox DPM72-AV2 Digital rack-mount meter
Description
Digalox® DPM72-AV2 is a digital panel-mounted measuring device for measuring current, voltage and frequency.
It supports the types of measurement Volt AC / DC, current AC / DC, frequency and 5 A or 1 A for current transformers. The device can be switched between the individual measuring functions via switching contact in operation. Min and max values are recorded. They can be displayed and reset via the switch contact. The device records measured values over a period of 36 seconds up to 14 days. The time range and the display of the progression graphics can be switched over via the switching contact. The values remain stored as long as the device is supplied with power.
By means of the additionally available USB-interface the following parameters can be configured via the configuration software "Digalox® Manager": Scale deflection, scale labeling, display design (pointer, tacho, bars, etc.), start graphics, and much more. The measured values can be read out in the measurement memory by the software, and a continuous measurement transfer can be activated. The measured values can be evaluated graphically within the software and exported as a CSV file.
This text is machine translated.
It supports the types of measurement Volt AC / DC, current AC / DC, frequency and 5 A or 1 A for current transformers. The device can be switched between the individual measuring functions via switching contact in operation. Min and max values are recorded. They can be displayed and reset via the switch contact. The device records measured values over a period of 36 seconds up to 14 days. The time range and the display of the progression graphics can be switched over via the switching contact. The values remain stored as long as the device is supplied with power.
By means of the additionally available USB-interface the following parameters can be configured via the configuration software "Digalox® Manager": Scale deflection, scale labeling, display design (pointer, tacho, bars, etc.), start graphics, and much more. The measured values can be read out in the measurement memory by the software, and a continuous measurement transfer can be activated. The measured values can be evaluated graphically within the software and exported as a CSV file.
This text is machine translated.
Hints
Micro-USB cable not included. Software Digalox® Manager available for download from the manufacturer.
