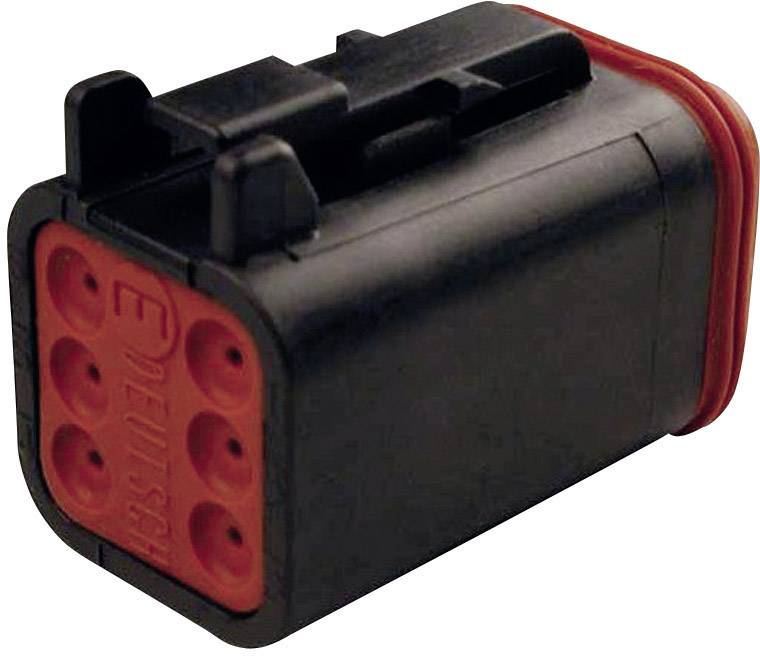

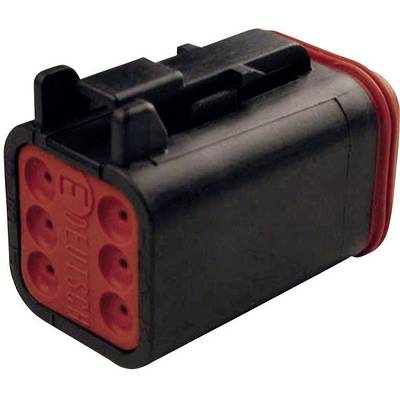

TE Connectivity DT 06-6 S-CE06
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, straight
Total no. of pins
6
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity DT 06-6 S-CE06
Our service for you
Technical specifications
- Type
DT 06-6 S-CE06
- Product type
Bullet connector
- Connector type
Socket, straight
- Total no. of pins
6
- Connection
Crimp
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Nominal voltage
1500 V AC
- Cable Ø (max.)
3.68 mm
- Cable Ø up to
1.35 mm
- Case material
Thermoplastic material
20 - 14
- Connection angle
180°
- Manufacturer part #
DT 06-6 S-CE06
- Cable Ø range
1.35 - 3.68 mm
- Number of pins
6
- max. cross section
2 mm²
- Cross-section range
2 mm² (max)
- RoHS-compliant
Yes
- Series
DT
Documents & Downloads
Datasheet
Datasheet 734442 TE Connectivity DT 06-6 S-CE06
Information
Information 734442 TE Connectivity DT 06-6 S-CE06
Description
Connector consists of housing, contacts and fuse wedge.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Socket housing.
- This text is machine translated.
Hints
Contacts and fuse wedge not included in the delivery.
