TE Connectivity Sensor LS803-51 Float switch 250 V AC, 100 V DC 1 A 1 maker, 1 breaker IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Float switch
Contact type
1 maker
1 breaker
Material
Polypropylene
Switching voltage
250 V AC
100 V DC
Switching current (max.)
1 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.41
3
6% = € 0.80
€ 13.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.41 / piece)
€ 14.41
plus VAT.
Technical specifications
- Movement range: 40 °
- Switching angle: 5 °
- Product type
Float switch
- Factory colour
Black
- Contact type
1 maker
1 breaker
- Material
Polypropylene
- Connection
Open end cable
- Cable length
0.50 m
- Switching voltage
250 V AC
100 V DC
- Switching current (max.)
1 A
15 W
- Min. temperature
-30 °C
- Max. temperature
+110 °C
- Thread size
M16
IP65
- Type
LS803-51
- Material (details)
glass fibre reinforced PP
- Type
Make or break contact (depending on installation position)
- Thread size
M16
- Switching capacity
15 W
- Connection
0.5 m, 2 x 18 AWG (UL) M16
- Fitting type (details)
Thread
- Temperature range
-30 - +110 °C
Documents & Downloads
Datasheet
Datasheet 154986 TE Connectivity Sensor LS803-51 Float switch 250 V AC, 100 V DC 1 A 1 maker, 1 breaker IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 154986 TE Connectivity Sensor LS803-51 Float switch 250 V AC, 100 V DC 1 A 1 maker, 1 breaker IP65 1 pc(s)
Description
Resistant to weak inorganic acids and bases, alcohol, oils and washing sodas up to 100ºC. Make or break function by 180° rotation.
Scope of delivery

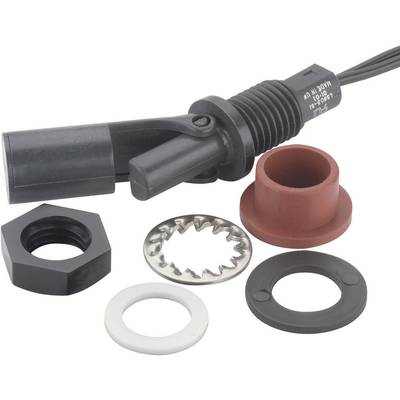

- Supplied with fittings and seals for internal and external mounting.
