TE Connectivity Sensor VS803-51 Float switch 250 V AC, 100 V DC 1 A 1 maker, 1 breaker IP65 1 pc(s)
Product type
Float switch
Contact type
1 maker
1 breaker
Material
Polypropylene
Switching voltage
250 V AC
100 V DC
Switching current (max.)
1 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 26.93 / piece)
€ 26.93
incl. VAT
14-day return policy included
Technical specifications
- Operating pressure 4 bar
- Product type
Float switch
- Factory colour
Black
- Contact type
1 maker
1 breaker
- Material
Polypropylene
- Connection
Open end cable
- Cable length
0.50 m
- Switching voltage
250 V AC
100 V DC
- Switching current (max.)
1 A
15 W
- Min. temperature
-30 °C
- Max. temperature
+110 °C
- Thread size
M16
IP65
- Type
VS803-51
- Material (details)
glass fibre reinforced PP
- Thread size
M16
- Switching capacity
15 W
- Temperature range
-30 - +110 °C
Documents & Downloads
Datasheet
Datasheet 155093 TE Connectivity Sensor VS803-51 Float switch 250 V AC, 100 V DC 1 A 1 maker, 1 breaker IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 155093 TE Connectivity Sensor VS803-51 Float switch 250 V AC, 100 V DC 1 A 1 maker, 1 breaker IP65 1 pc(s)
Description
Resistant to weak inorganic acids and bases, alcohol, oils and washing sodas up to 100ºC. Choice of make or break function by rotating the float.

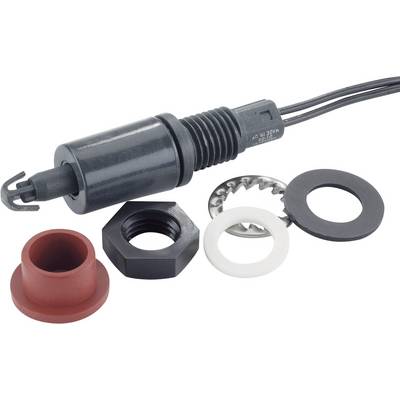

Scope of delivery
- Supplied with fittings and seals for internal and external mounting
