Name: TE Connectivity Sensor VCS-08 Float switch 250 V AC 1 A 1 maker, 1 breaker IP65 1 pc(s)
Brand: TE Connectivity Sensor
SKU: 155106
Availability: InStock

A black and white float switch for liquid level measurement, with cable connection for mounting.

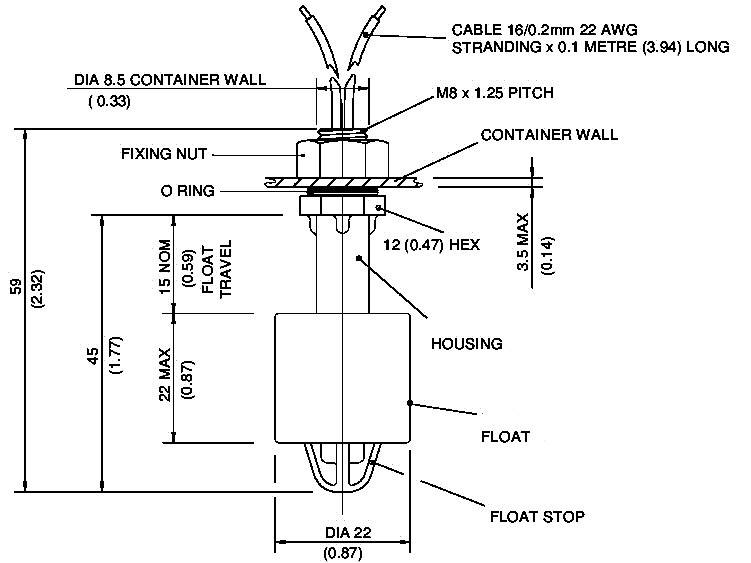

Technical drawing of a float sensor with dimensions and mounting details. Includes information on cable, housing, and connection.

1/2

Product type

Float switch

Contact type

1 maker

1 breaker

Material

Polyphenylene sulphide

Switching voltage

250 V AC

Switching current (max.)

1 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

199 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.52 / piece)

€ 24.52

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Float switch

Contact type: 1 maker
1 breaker

Material: Polyphenylene sulphide

Connection: Open end cable

Cable length: 10.00 cm

Switching voltage: 250 V AC

Switching current (max.): 1 A

: 15 W

Min. temperature: -30 °C

Max. temperature: +110 °C

(Ø): 22 mm

Thread size: M8

: IP65

Dim: (Ø) 22 mm

Type: VCS-08

Material (details): Kynar/PPS

Type: SG 0.54 min floater

Switching capacity: 1 A/250 V AC

Type: VCS-08

Connection: 0.1 m connection cable 2 x 22 AWG (UL)

Temperature range: -30 - +110 °C

Operating voltage: 250 V AC

Documents & Downloads

Datasheet

Datasheet 155106 TE Connectivity Sensor VCS-08 Float switch 250 V AC 1 A 1 maker, 1 breaker IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 155106 TE Connectivity Sensor VCS-08 Float switch 250 V AC 1 A 1 maker, 1 breaker IP65 1 pc(s)

Description

Supplied together with assembly and seal parts for internal attachment, resistant to weakly inorganic acids and bases, alcohol, oils and washing solutions. Choice of make or break function by rotating the float.
