ElectromechanicsHousingsGrip-Shaped Enclosures

TEKO TB-1SP.7 Hand-held casing 160 x 94 x 36.5 Acrylonitrile butadiene styrene White 1 pc(s)

A rectangular, grey plastic enclosure with a removable lid and visible screws.

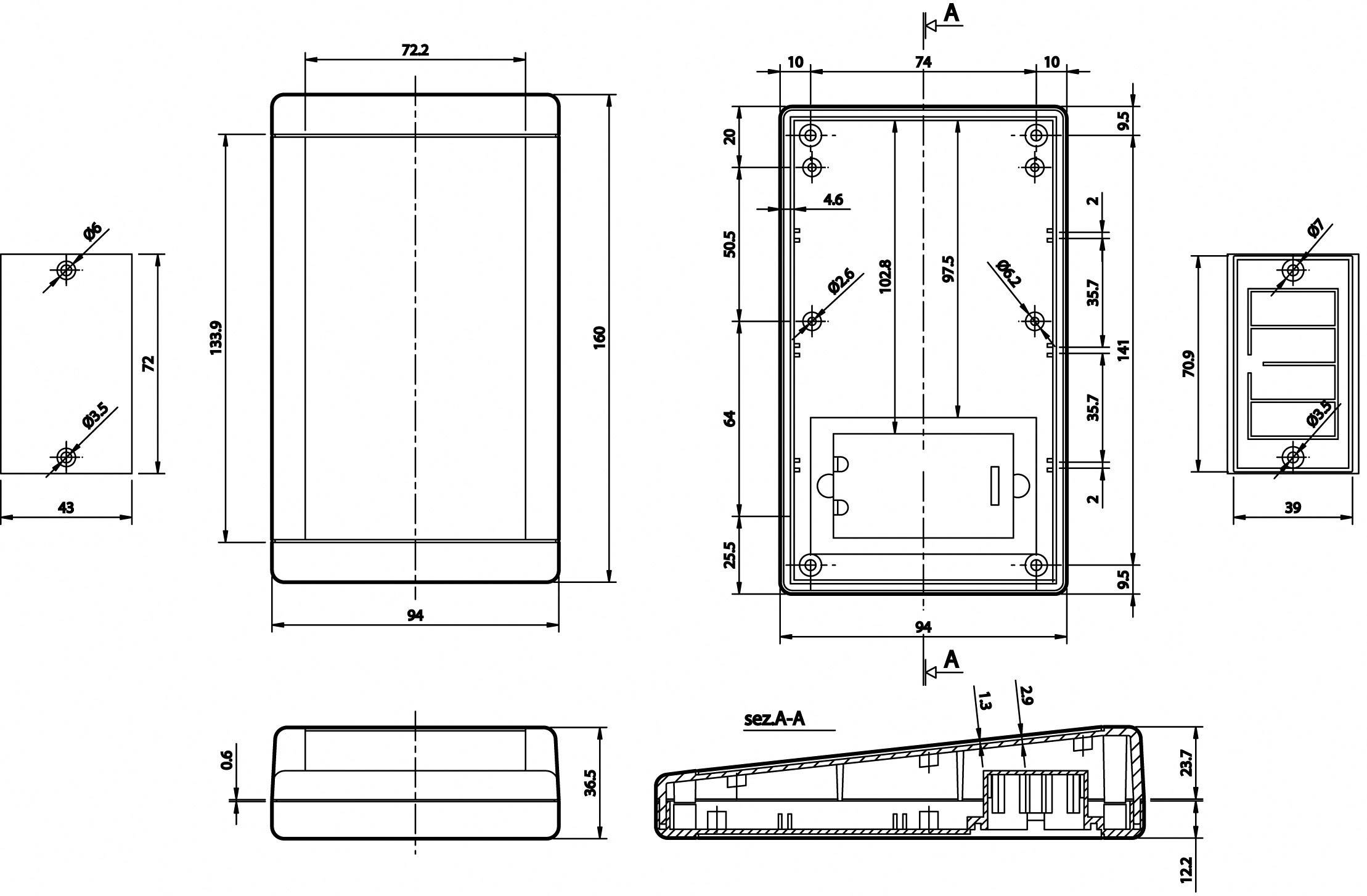

Technical drawing of a rectangular enclosure with dimensional specifications. Front, side, and top views with detailed measurements.
1/2
Product type
Hand-held casing
Material
Acrylonitrile butadiene styrene
Width
94 mm
Height
36.5 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
13 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 14.99 / piece)
€ 23.99
-38 %
€ 14.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • 132 x 72 mm usage space
Product type

Hand-held casing

Material

Acrylonitrile butadiene styrene

Factory colour

White

Length

160 mm

Width

94 mm

Height

36.5 mm

Type

TB-1SP.7

Content

1 pc(s)

Material (details)

ABS

Documents & Downloads

Datasheet

Datasheet 543863 TEKO TB-1SP.7 Hand-held casing 160 x 94 x 36.5 Acrylonitrile butadiene styrene White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 543863 TEKO TB-1SP.7 Hand-held casing 160 x 94 x 36.5 Acrylonitrile butadiene styrene White 1 pc(s)

Description

With embedded face to accommodate membrane keypads. Lower section and cover are fitted with guides and mounting pillars for E-cards. Matt surface. Lock with 4 screws.

Scope of delivery

  • MT2,7
  • MT2,9
  • Aluminium board for wall mounting.
