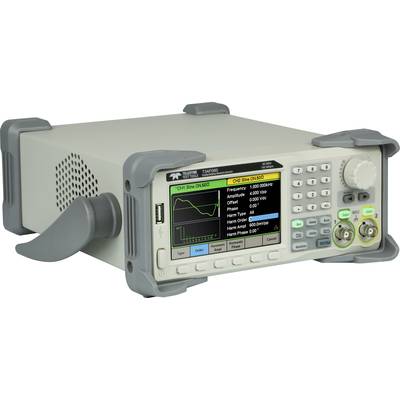

Teledyne LeCroy Function Generator USB 1 µHz - 60 MHz 2-channel Sinus, Rectangle, Pulse, Triangle, Noise, Arbitrary
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Number
Total (€ 1,452.94 / piece)
€
Highlights & Details
60 MHz, 16 kpts, 150 MS/s, 2 Ch, 14 bit, 20 Vpp Function/Arbitrary Waveform Generator
- Deep memory at 16 kpts
- High resolution - 14 bit
- Built in arbitrary waveform generator
- User-defined waveforms
Technical specifications
- Dim. W x H x D 260 x 107 x 296 mm
- Frequency range
1 µHz - 60 MHz
- Frequency range (sine)
1 μHz - 60 MHz
- Frequency range square wave
1 μHz - 60 MHz
- Square wave slew rate
700 ns
- Frequency range triangle
1 μHz - 500 K Hz
- ARB frequency range
1 μHz - 6 MHz
- Frequency reading (external)
100 mHz - 200 MHz
- Dim
- Weight
3.43 kg
- Max. frequency
60 MHz
Manufacturer's standards (no certificate)
- No. of channels
2-channel
- Display
Digital
- Features
Modulation
- Interfaces
USB host
USB device
LAN
- Voltage supply
Mains
- Signal output types
Sinus
Rectangle
Pulse
Triangle
Noise
Arbitrary
- Type
Function Generator
- Min. frequency
1 µHz
- Product type
USB
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2350321 Teledyne LeCroy Function Generator USB 1 µHz - 60 MHz 2-channel Sinus, Rectangle, Pulse, Triangle, Noise, Arbitrary
Description
High Performance - Low Cost Two Channel Function Generator.
This text is machine translated.
This text is machine translated.
Scope of delivery
- USB cable
- Quick start guide
- Calibration certificate
- power
