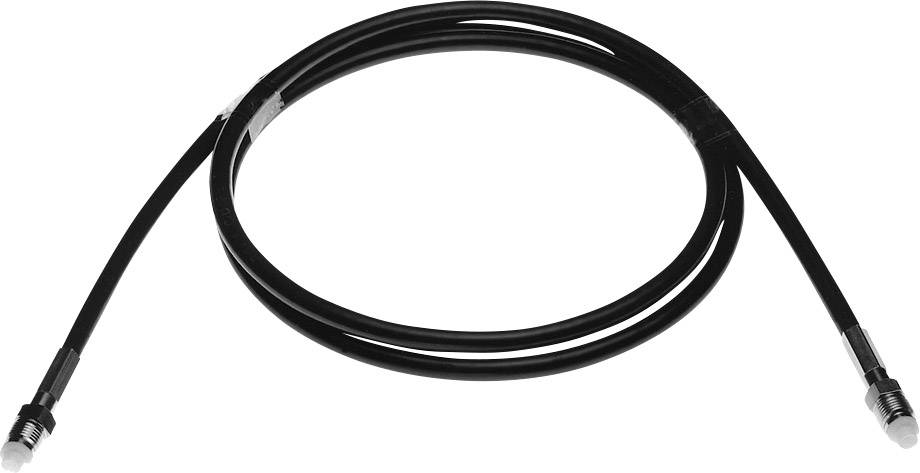

Telegärtner 100009396 Test lead 1.00 m Black
EAN:
Part number:
Item no:
Number
Total (€ 14.99 / piece)
€ 15.99
-6 %
€ 14.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Test lead
- Factory colour
Black
- Type A
FME socket
- Type B
FME socket
- Cable length
1.00 m
- Impedance
50 Ω
- Cable type
Feeder cable
- Nominal voltage
100 V
- Length
1.00 m
- Max. temperature
+85 °C
- Min. temperature
-55 °C
- Standards
Test class according to DIN IEC 60068 Part 1: 55/085/21
- Cable diameter (details)
4.95 mm
- Contact material
Brass silver plated
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1366394 Telegärtner 100009396 Test lead 1.00 m Black
Description
The series includes coaxial plug connectors with screw cap, the FME at a frequency of up to 2 GHz. The shaft resistance amounts to 50 Ω. Cable, depending on the design by crimping or soldering. The plug connectors from the series FME, also because of their compact design, often in mobile telephony and in particular in vehicles.
