Telegärtner 100021392 Distributor White

Small networks do not necessarily need 19" cabinets or large wall distributors. Simple, cost-effective distributors are in demand, which can be installed discreetly and inconspicuously. The compact distribution housing can be mounted on the wall, under the desk, in furniture and also on TH35 DIN EN 60715 standard mounting rails using an integrated adapter. The MPD8 modular mini-distributor offers maximum flexibility: Only as many modules as required must be installed, unoccupied slots can be closed with blanking covers. If the network is expanded, further modules can be easily retrofitted. Shielded and unshielded Keystone modules or modules and couplings of various power classes (categories can be mixed randomly.

Specifications:
Shielding cap made of stainless steel
Case made from thermoplastic, halogen-free, with non-slip feet,
Cover housing with at least 4 cable break-outs,
Port numbering on casing cover,
Cable strain relief using enclosed cable ties without screws or special tools,
In addition, a PE cable (with M4 screw) can be attached.
Depending on the execution 6, 8, 12 or 16 RJ45-modules connectable,
Hole pattern matching AMJ-S and AMJ-K modules

Notes: 8 ports, mounting on TH35 mounting rail without adapter
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant

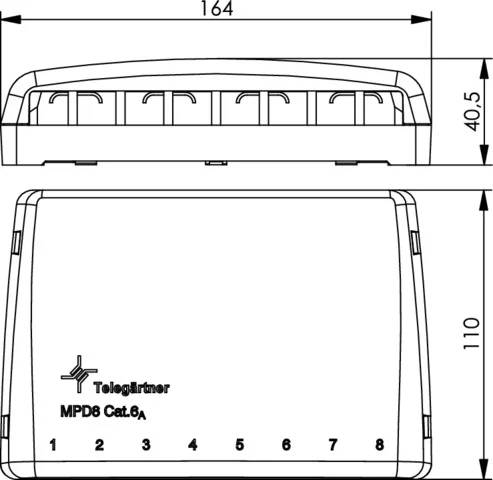

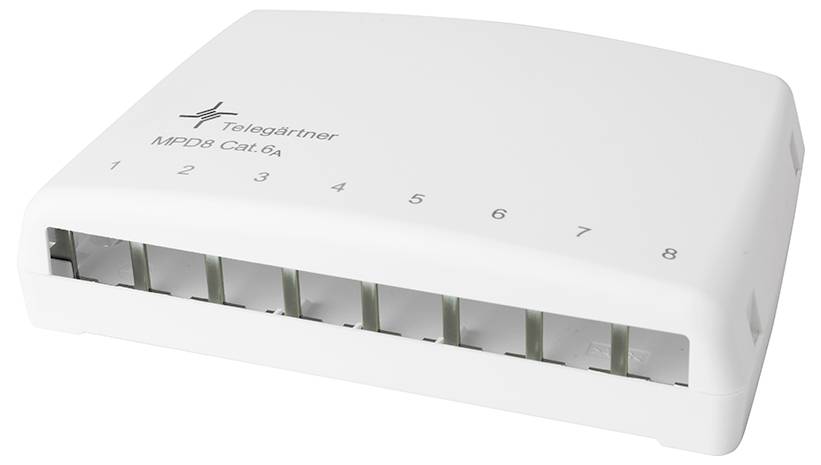

Design: 8-way mini-distributor unfitted
Colour: Alpine white
Series: AMJ-SL; AMJ-S; AMJ CAT.8.1 module; AMJ module K; AMJ coupling K; UMJ module K; UMJ coupling K
SHORT NAME: MPD8 AMJ/UMJ TH35/AP

This text is machine translated.
