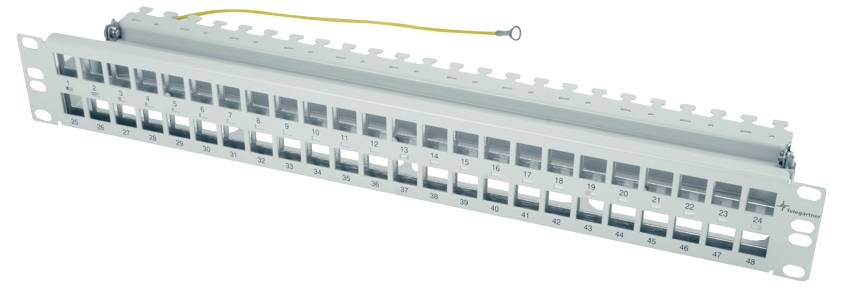

Telegärtner 100021507 19" mount (unequipped) 483 mm (19") CAT 6A 1.5 U Black Unequipped
EAN:
Part number:
Item no:
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
19" mount (unequipped)
- Rack size
483 mm (19")
CAT 6A
- Rack unit
1.5 U
- Patch panel design
Unequipped
- Connection method
Keystone module
- Connections
RJ45 8/8
- Width
483 mm
- Height
1.5 U
- Depth
66 mm
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737238 Telegärtner 100021507 19" mount (unequipped) 483 mm (19") CAT 6A 1.5 U Black Unequipped
Description
For continuous wiring
From floor distributors to machines, users can use components such as Telegärtner's 19" module carriers
Through universal connector technique and
Set connection technology. The 19" module carriers are the right solution for individual design in the distribution area. They are available in gray or black and with or without interception. It can be used with our high-performance modules, pre-equipped versions or empty housing. The sections in the practical Keystone-format enable an individual assembly. The equipped versions meet the transmission characteristics according to CAT. 6A according to EN 60603-7-51.
Specifications:
Integrated cable traps,
Potential connection via an enclosed PE line,
Front plate printed with port numbering,
Steel housing (powder-coated)
For recording up to 48 AMJ or UMJ modules
Notes: 48 ports
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Incl. cable clamping and potential connection set, unfitted
Colour, black
Series: AMJ-SL; AMJ-S; AMJ CAT.8.1 module; AMJ module K; AMJ coupling K; UMJ module K; UMJ coupling K
Short description: 19" module carrier 1.5 HE
This text is machine translated.
From floor distributors to machines, users can use components such as Telegärtner's 19" module carriers
Through universal connector technique and
Set connection technology. The 19" module carriers are the right solution for individual design in the distribution area. They are available in gray or black and with or without interception. It can be used with our high-performance modules, pre-equipped versions or empty housing. The sections in the practical Keystone-format enable an individual assembly. The equipped versions meet the transmission characteristics according to CAT. 6A according to EN 60603-7-51.
Specifications:
Integrated cable traps,
Potential connection via an enclosed PE line,
Front plate printed with port numbering,
Steel housing (powder-coated)
For recording up to 48 AMJ or UMJ modules
Notes: 48 ports
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Incl. cable clamping and potential connection set, unfitted
Colour, black
Series: AMJ-SL; AMJ-S; AMJ CAT.8.1 module; AMJ module K; AMJ coupling K; UMJ module K; UMJ coupling K
Short description: 19" module carrier 1.5 HE
This text is machine translated.
