Name: Telegärtner 100023340 100023340 BNC connector Plug, right angle 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1366672
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

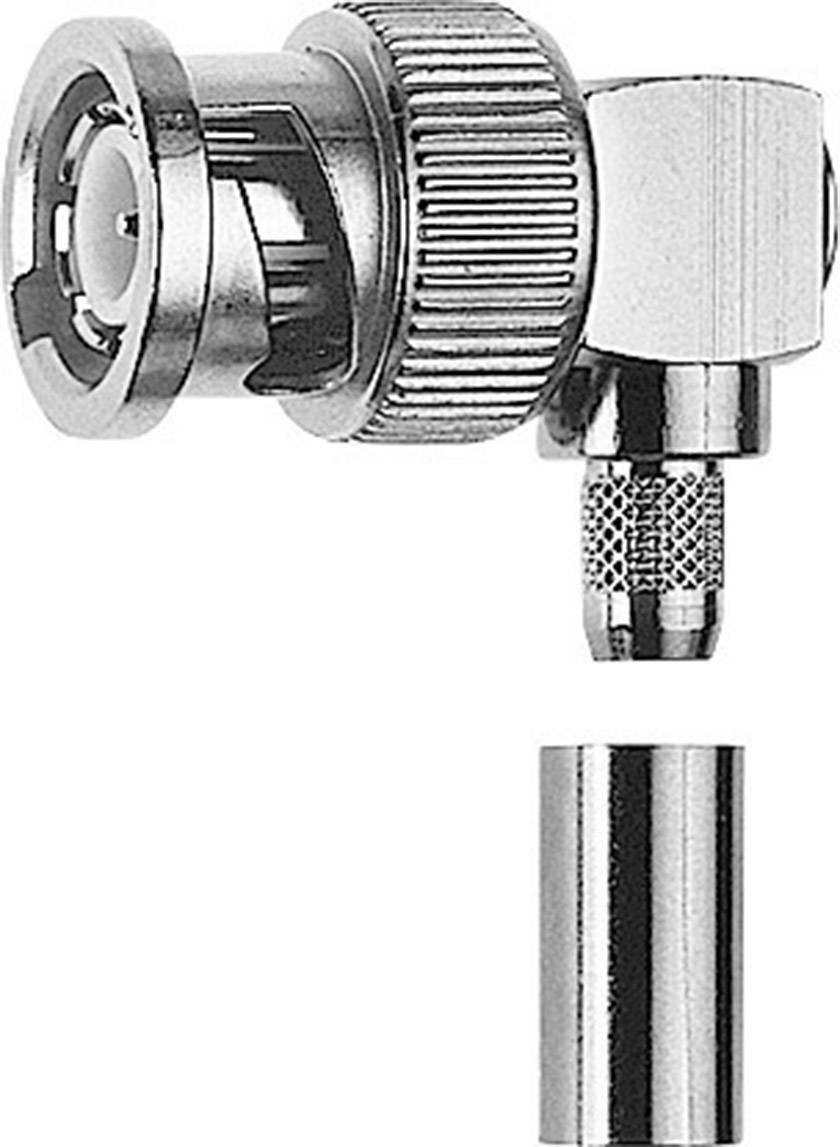

Metal plug with L-shaped connection and knurled screw thread.

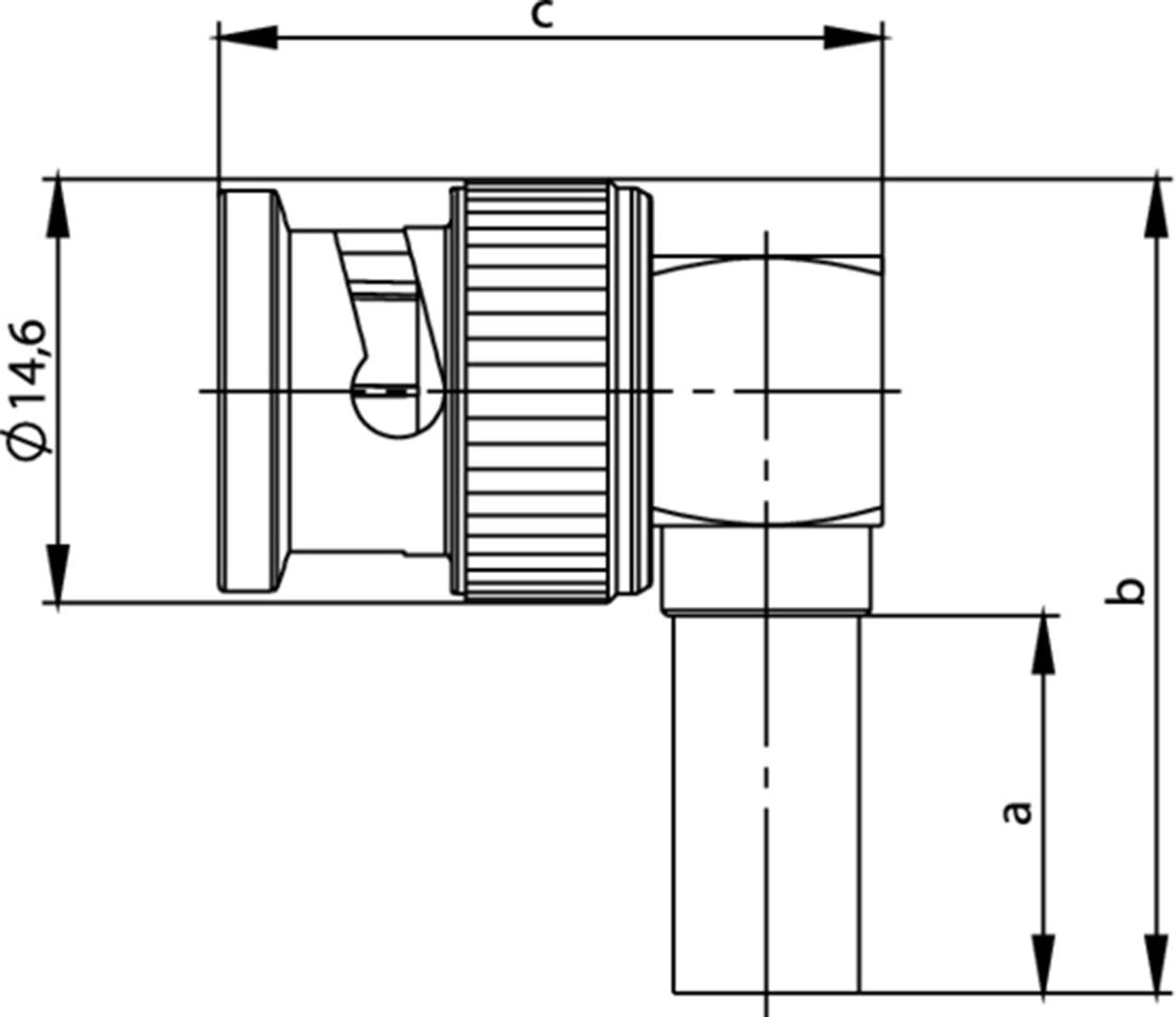

Technical drawing of an angle connection, detailed dimensions for parts a, b, and c specified, showing connections and diameters.

1/2

Image similar

Cable category

RG 223/U

Product type

BNC connector

Connector type

Plug, right angle

Impedance

50 Ω

Connection

Crimp

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

34 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BNC plug connector

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Cable category: RG 223/U

Product type: BNC connector

Connector type: Plug, right angle

Impedance: 50 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 5.20 mm

Max. frequency: 4 GHz

Case material: Brass nickel plated

Manufacturer part #: 100023340

Insulation material: PTFE

Contact material: Brass gold plated

RoHS-compliant: Yes

Temperature range: -40 - +155 °C

Type: 100023340

Seal type: Bayonet

Factory colour: Silver (metallic)

Weight: 0.014

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Cable category

Cable Ø

Connection

Connector type

Impedance

Product type

Telegärtner 100023340 100023340 BNC connector Plug, right angle 50 Ω 1 pc(s)

Item no:1366672

Fast track dispatch on Thu 29 Oct

34 Piece(s)Conrad Electronic

This article

RG 223/U

5.20 mm

Crimp

Plug, right angle

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Telegärtner 100023301 100023301 BNC connector Plug, right angle 50 Ω 1 pc(s)

Item no:1366643

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

RG 316/U

2.70 mm

Screws

Plug, right angle

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Telegärtner 100023303 100023303 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1366268

Fast track dispatch on Thu 29 Oct

69 Piece(s)Conrad Electronic

RG 142 B/U

5 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Telegärtner 100023304 100023304 BNC connector Plug, right angle 50 Ω 1 pc(s)

Item no:1090886

Fast track dispatch on Thu 29 Oct

98 Piece(s)Conrad Electronic

RG 316/U

2.60 mm

Crimp

Plug, right angle

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Telegärtner 100023305 100023305 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090850

Fast track dispatch on Thu 29 Oct

23 Piece(s)Conrad Electronic

RG 58

4.95 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Telegärtner 100023312 100023312 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090849

Fast track dispatch on Thu 29 Oct

56 Piece(s)Conrad Electronic

RG 316

2.60 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Telegärtner 100023314 100023314 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1366772

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

G 022 32

3 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Telegärtner 100023316 100023316 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090844

Fast track dispatch on Thu 29 Oct

15 Piece(s)Conrad Electronic

H155

5.90 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Telegärtner 100023319 100023319 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090847

Fast track dispatch on Thu 29 Oct

35 Piece(s)Conrad Electronic

RG 213

10.30 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Telegärtner 100023320 100023320 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1366785

Fast track dispatch on Thu 29 Oct

49 Piece(s)Conrad Electronic

RG 214/U

10.80 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1366672 Telegärtner 100023340 100023340 BNC connector Plug, right angle 50 Ω 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
