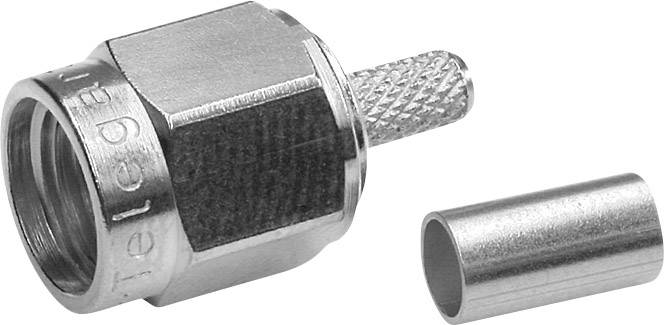

Name: Telegärtner 100024597 100024597 SMA connector Plug, straight 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1366181
Availability: InStock

Highlights & Details

SMA connectors

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Our service for you

Technical specifications

Cable category: RG 316/U

Product type: SMA connector

Connector type: Plug, straight

Impedance: 50 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 2.70 mm

Case material: Brass nickel plated

Manufacturer part #: 100024597

Insulation material: PTFE

Contact material: Brass gold plated

RoHS-compliant: Yes

Temperature range: -55 - +155 °C

Type: 100024597

Seal type: Screw-on

Documents & Downloads

Datasheet

Datasheet 1366181 Telegärtner 100024597 100024597 SMA connector Plug, straight 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1366181 Telegärtner 100024597 100024597 SMA connector Plug, straight 50 Ω 1 pc(s)

Description

The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
