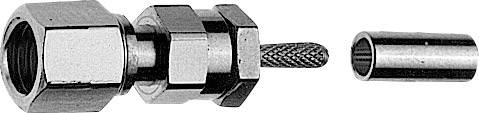

Telegärtner 100024905 100024905 SMC connector Socket, straight 50 Ω 1 pc(s)
Cable category
RG 178 U
Product type
SMC connector
Connector type
Socket, straight
Impedance
50 Ω
Connection
Crimp
EAN:
Part number:
Item no:
Total (€ 12.99 / piece)
€ 17.99
-28 %
€ 12.99
incl. VAT
14-day return policy included
Highlights & Details
SMC connector
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 178 U
- Product type
SMC connector
- Connector type
Socket, straight
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
1.90 mm
- Max. frequency
4 GHz
- Case material
Brass gold plated
- Manufacturer part #
100024905
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Type
100024905
- Seal type
Screw-on
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1366178 Telegärtner 100024905 100024905 SMC connector Socket, straight 50 Ω 1 pc(s)
Description
These connector series offer three different coupling mechanisms: SMB has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. SMC has a threaded coupling for vibration proof installation, and is usable up to 10 GHz. SMS has a slide coupling which is suitable for rack and panel systems, and is usable up to 4 GHz.
The impedance is controlled at 50 Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables. Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD). Solder and crimp techniques are used to terminate these series to cables. SMB/SMC/SMS connectors find applications in all types of electronic equipment.
The impedance is controlled at 50 Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables. Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD). Solder and crimp techniques are used to terminate these series to cables. SMB/SMC/SMS connectors find applications in all types of electronic equipment.
