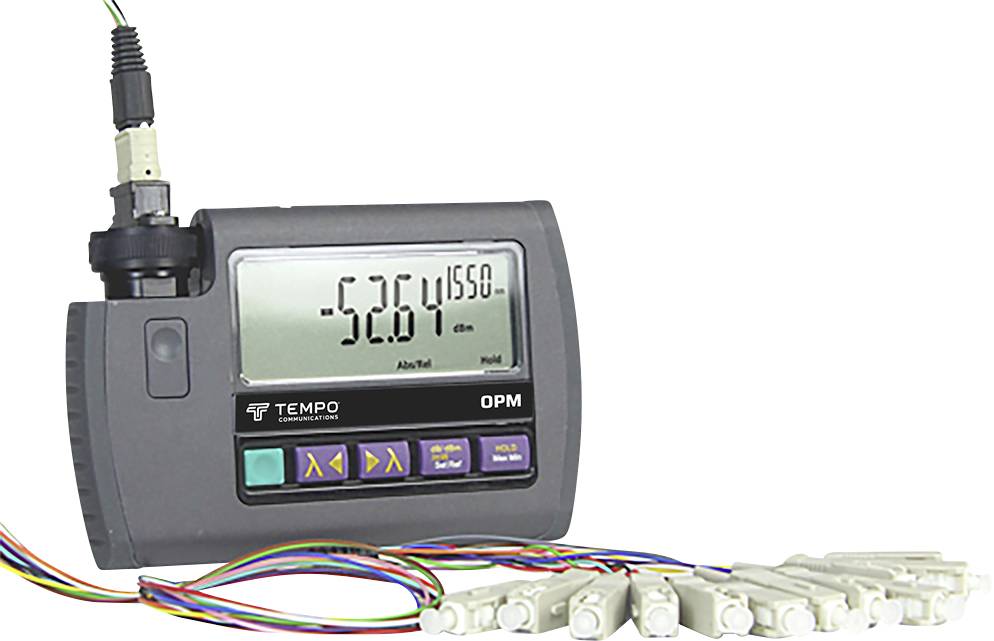

Tempo Communications T9600XL-GE5 Optical power meter Location
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,685.00 / piece)
€ 1,685.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
OPTICAL POWER MEASURING DEVICE (OPM) IN POCKET SIZE GE 5MM (XL ADAPTERS)
- OPM in shirt pocket size
- Large area detector for multi-fiber ribbon cable
- Ribbon fiber
- MPO and POF tests
Technical specifications
- Detector type GE (5 mm)
- Operating temperature: -15 °C to + +55 °C.
- Relative humidity 0 - 95%
- Polycarbonate housing
- Sound detection 200 - 2500 Hz
- Calibration shaft lengths: 660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm
- Power range: +10 to -30 dBm (for 660,780,1610,1625 nm) / +10 to -40 dBm (for 850,1300,1310,1390,1490,1550 nm)
- Medium range linearity: 0.06 dB (typical)
- Uniformity of reaction through detector 2% (0.09 dB)
- Sensitivity of ID tone detection: -37 dBm
- Product type
Optical power meter
- Function
Location
- Optical display
Yes
- Acoustic signal
Yes
- Dim
(L x W x H) 25 x 124 x 81 mm
- Weight
150 g
- Width
124 mm
- Height
81 mm
- Length
25 mm
- Type
T9600XL-GE5
Documents & Downloads
Datasheet
Datasheet 3338187 Tempo Communications T9600XL-GE5 Optical power meter Location
User & Safety Instructions
User & Safety Instructions 3338187 Tempo Communications T9600XL-GE5 Optical power meter Location
Description
An OPM with a large 5 mm GE detector to test power and attenuation on fiber optic systems or open-space beams up to +10 dBm. Ideal for: Plastic fiber, PCS, singlemode, multimode, multi-fiber ribbon cable such as MMC, MPO 12 - 72 fibers with up to 12 fiber width and LC/SC, etc. Fibre fiber optic systems.
This text is machine translated.
This text is machine translated.
Features
- 12 Calibration λ, ±2% accuracy, ISO/IEC 17025
- Small, user-friendly, robust and reliable
- DBm / dB / linear, 0.01 dB resolution
- Display Hold & Max/Min recording
- Sound detector with multi fiber ID
- Simple to operate tamperLock-Mode
- Exchangeable optical connections
- Full QA reports
Scope of delivery
- Please note: A connection adapter is not included with this product. When ordering, make sure to order a compatible adapter adapter.
