Tempo Communications T9822A Laser light source Location
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,755.00 / piece)
€ 1,755.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
1310-1550 laser light source in shirt pocket size
- Laser light source in shirt pocket size
- For singlemode systems at 1310 and 1550 nm
Technical specifications
- Output wavelength 1310, 1550 nm laser
- Short-term stability: (For 15 min., typical, ±2 °C, after warm-up, @ ORL less than -25 dB) 0.04 dB
- Stability over temperature: 0.6 dB (typical)
- Initial wavelength tolerance (@ 25 °C) 20 nm
- Spectrum Width (FWHM): 3 nm (typical)
- Wavelength drift: 0.4 nm/°C (typical)
- Modulation: 270 Hz, 1 kHz, 2 kHz ±2 %
- Multi-fiber ID: 12 fibers
- Automatic shutdown: Selectable
- Polycarbonate housing
- Operating temperature: -15 °C to + +55 °C.
- Relative humidity 0 - 95%
- Product type
Laser light source
- Function
Location
- Optical display
Yes
- Dim
(L x W x H) 25 x 124 x 81 mm
- Weight
150 g
- Width
124 mm
- Height
81 mm
- Length
25 mm
- Type
T9822A
Documents & Downloads
Datasheet
Datasheet 3338189 Tempo Communications T9822A Laser light source Location
User & Safety Instructions
User & Safety Instructions 3338189 Tempo Communications T9822A Laser light source Location
Description

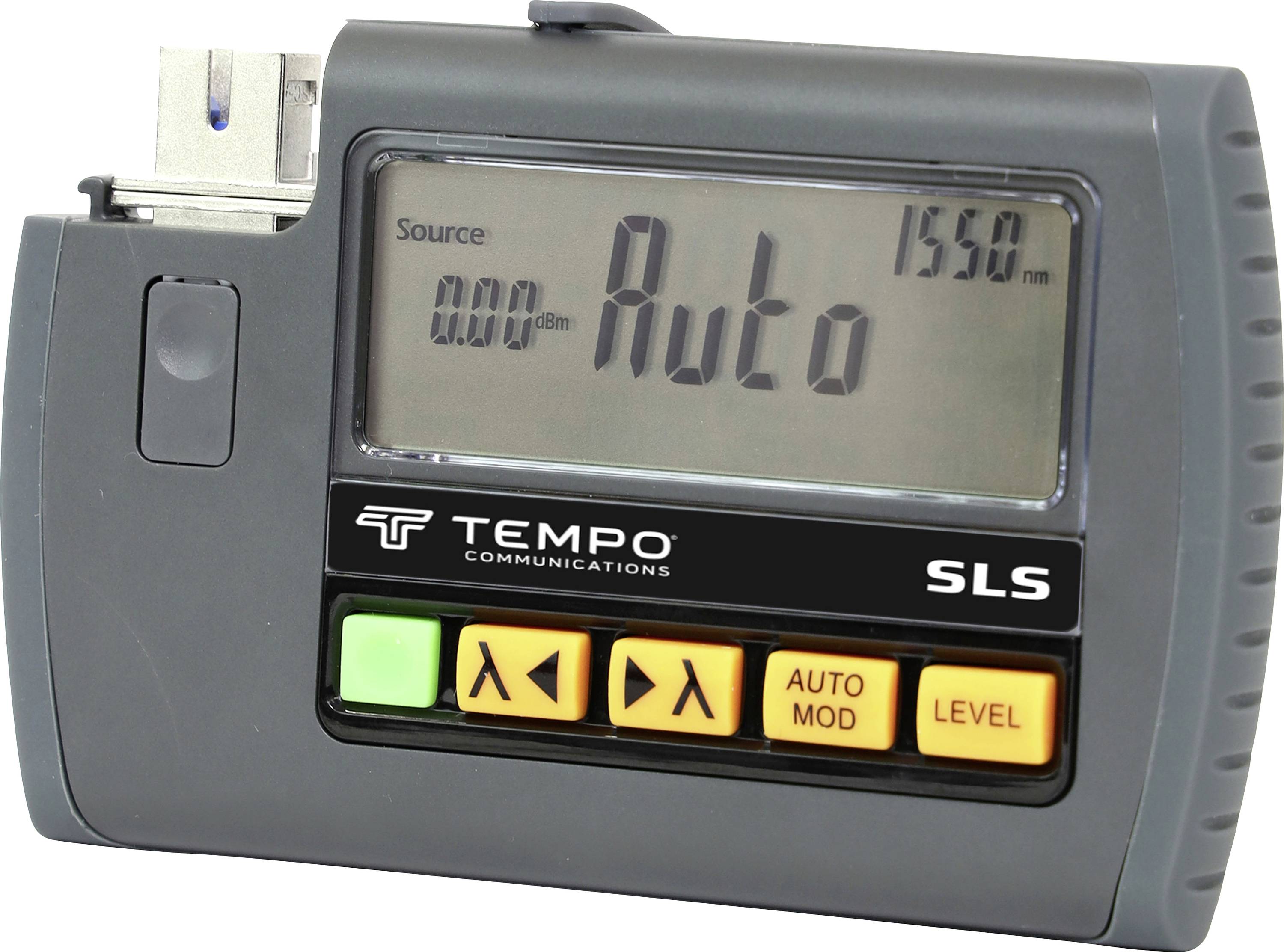

A fiber optic laser light source in shirt pocket size, Ideal for general tests of singlemode systems at 1310 and 1550 nm. It offers high accuracy and is easy to use.
This text is machine translated.
This text is machine translated.
Features
- Robust, crash-proof construction
- User-definable auto shutdown
- Exceptionally stable laser
- Neck strap, shirt pocket clip and padded bag
- Tone generator and multi-fiber ID function
- Easy to use tamperLock mode
- Compatible with Autotest power meters
- Exchangeable optical connections
- Full QA reports with ISO9001 compliant calibration
Scope of delivery
- SC/SC ADAPTER OPT046
