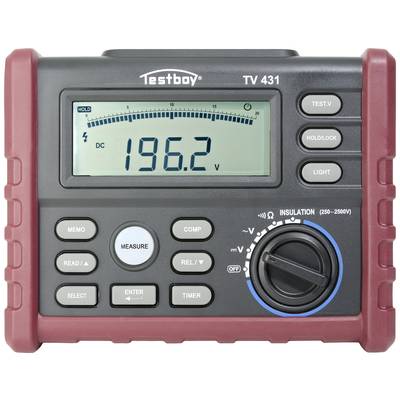

Testboy TV 431 Insulation tester 250 V, 500 V, 1000 V, 2500 V 100 GΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Insulation tester
- Test voltage
250 V
500 V
1000 V
2500 V
- Reading type
Insulation resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
200 Ω
- Dim
(L x W x H) 19.3 x 15 x 7.5 cm
- Weight
900 g
- Display type
Digital (LCD)
- Frequency range
- Insulation resistance (max.)
100 GΩ
- Voltage reading range (max.)
2500 V DC
- Voltage reading range (min.)
250 V DC
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
15 cm
- Height
7.5 cm
- Length
19.3 cm
Documents & Downloads
Datasheet
Datasheet 2885785 Testboy TV 431 Insulation tester 250 V, 500 V, 1000 V, 2500 V 100 GΩ
User & Safety Instructions
User & Safety Instructions 2885785 Testboy TV 431 Insulation tester 250 V, 500 V, 1000 V, 2500 V 100 GΩ
Description
The digital insulation measuring device Testboy TV 431 enables simple testing of the insulation resistance of devices, electrical systems and circuits. Four selectable test voltages are available for particularly informative measurement results. The range of application is expanded considerably by the option of AC, DC, continuity and resistance measurements.
This text is machine translated.
This text is machine translated.
Features
- Insulation resistance 0.01 MOhm to 100 GOhm
- Four selectable measuring voltages (250 V, 500 V, 1000 V and 2500 V DC)
- Continuity test (signal tone if resistance is less than 3 Ohm)
- Resistance measurement up to 200 ohms
- AC voltage up to 750 V.
- DC voltage up to 1000 V.
- Large LCD display with bar graph display
- Internal memory for up to 20 measured values
- Auto Power Off function
- Overvoltage category CAT IV 600 V, CAT III 1000 V
- IEC/EN 61010-1 (DIN VDE 0411), EN 61557-5
Scope of delivery
- Bag
- Test lead set
