Name: Theben 0200130 Timer digital 7 day mode 2600 W Backlit display, Timer mode, Progammable
Brand: Theben
SKU: 3218935
Availability: InStock

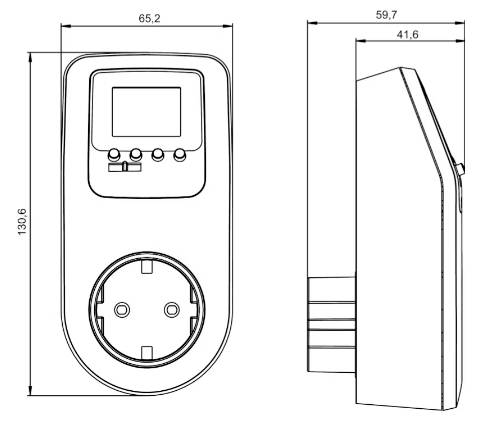

Technical Drawing of a Power Socket with Dimensions: 130.6 mm height, 65.2 mm width, 41.6 mm depth. Front and side view.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

13 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Timer

Type: digital

Features: Backlit display
Timer mode
Progammable

Switching cycle: 7 day mode

Used at: Indoors

Max. switching capacity: 2600 W

Operating voltage: 230 V AC

Switching current (max.): 10 A

Factory colour: White

Shortest switching time: 1 min

Width: 65.2 mm

Height: 130.6 mm

Depth: 59.7 mm

Dim: (W x H x D) 65.2 x 130.6 x 59.7 mm

Weight: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3218935 Theben 0200130 Timer digital 7 day mode 2600 W Backlit display, Timer mode, Progammable

User & Safety Instructions

User & Safety Instructions 3218935 Theben 0200130 Timer digital 7 day mode 2600 W Backlit display, Timer mode, Progammable

Description

Digital socket switch timer with week program.

This text is machine translated.

Features

App programming possible via optional Bluetooth Low Energy OBELISK top3
Maximum protection against manipulation, timer programs can only be transferred from the APP to the clock if the Bluetooth OBELISK top3 is in the watch
Use for Schuko-sockets
1-channel
Simple operation with buttons for program functions, weekday, hour and minute
ON/OFF switching times
Switching pre-selection
Continuous switch ON/OFF
Random program
Automatic summer/winter time changeover
