Thermo TECH Polyester Heating foil self-adhesive 230 V AC 50 W IP rating IPX4 (L x W) 800 mm x 400 mm

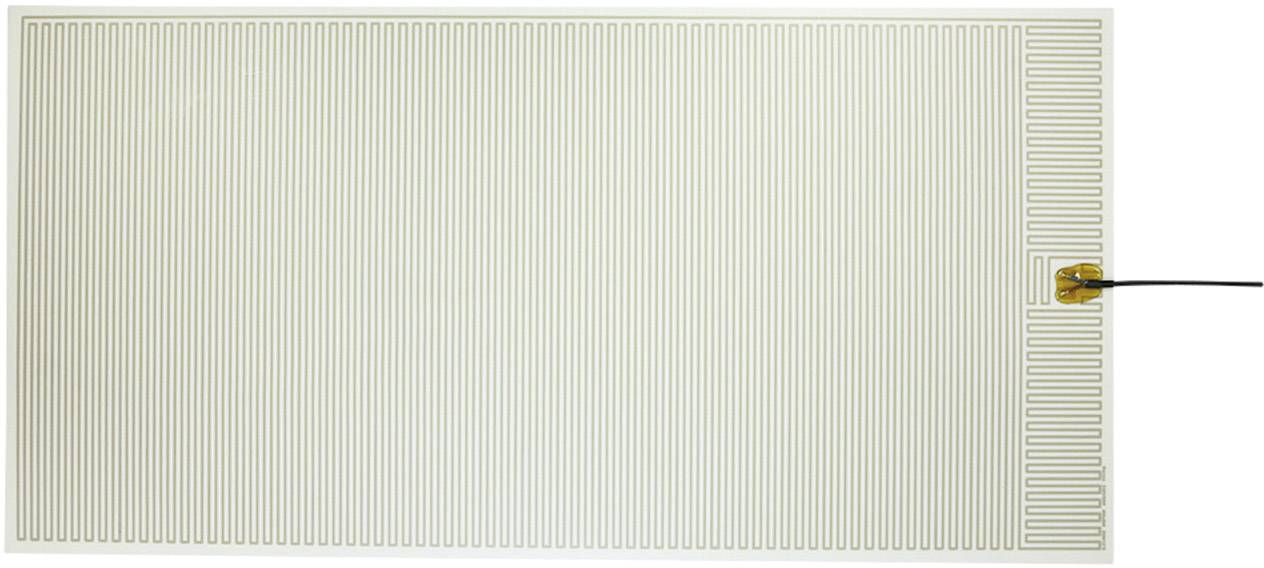

Transparent heating film with thin conductor tracks and a connection cable on the right-hand side.
Image similar
Product type
Heating foil
Operating voltage
230 V AC
Power
50 W
IP rating
IPX4
Surface temperature
35 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Heating film, self-adhesive

  • Symbol image for Thermo TECH Polyester Heating foil self-adhesive 230 V AC 50 W IP rating IPX4 (L x W) 800 mm x 400 mm

Technical specifications

  • Cable type: H03VVH2-F 2 x 0.75 mm²
  • Height at the connection: 5 mm
Product type

Heating foil

Features

self-adhesive

Operating voltage

230 V AC

50 W

Material

Polyester

Material thickness

0.4 mm

Connection

Open end cable

Lead length

50 cm

IPX4

Surface temperature

35 °C

Length

800 mm

Width

400 mm

Dim

(L x W) 800 mm x 400 mm

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 1216679 Thermo TECH Polyester Heating foil self-adhesive 230 V AC 50 W IP rating IPX4 (L x W) 800 mm x 400 mm

User & Safety Instructions

User & Safety Instructions 1216679 Thermo TECH Polyester Heating foil self-adhesive 230 V AC 50 W IP rating IPX4 (L x W) 800 mm x 400 mm

Description

Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. To protect surfaces, equipment, housings, circuits, even various fluids against freezing temperatures. Highest Security- and performance quallity. With sealed connection cable.

This text is machine translated.

Hints

Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
