Toolkit RC ToolkitRC M6DAC Pro LiPo 1-6S 16A Charger 240 V 28 A LiPolymer, LiHV, LiFe, Li-ion, LTO, NiMH, Lead

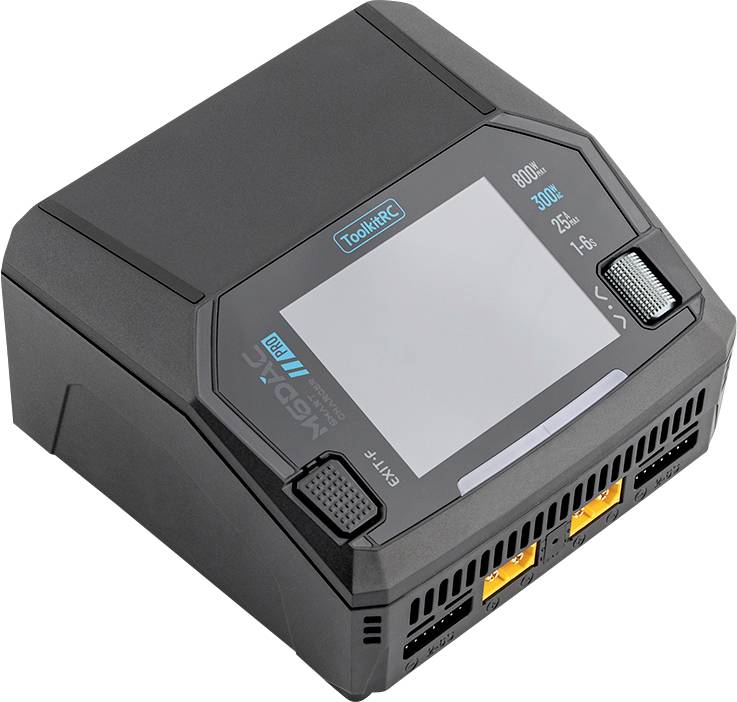

Black ToolKitRC battery charger with large display, control knob, and dual orange power ports shown on a white background.

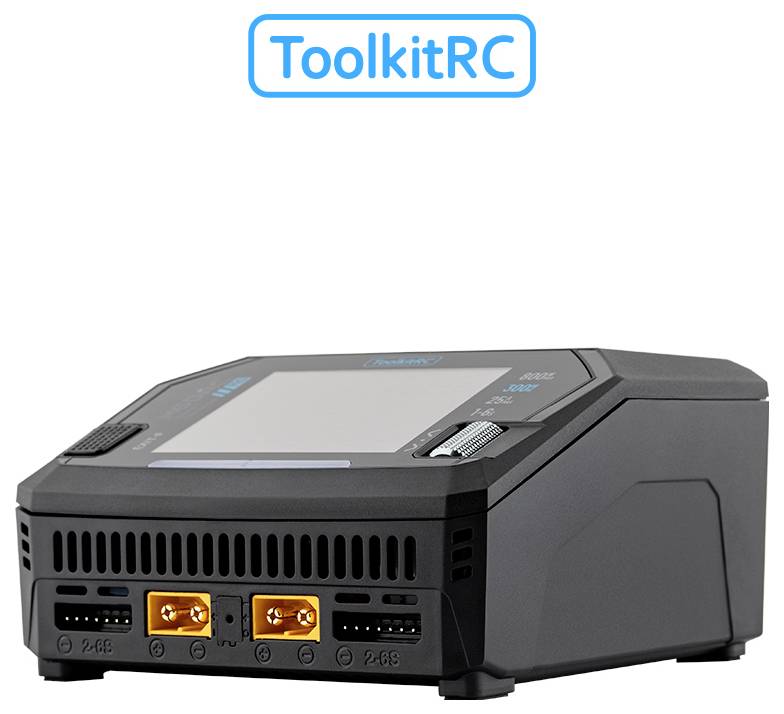

ToolkitRC electronic device shown in black casing with touchscreen and multiple front ports, likely a battery charger or tester.<br>

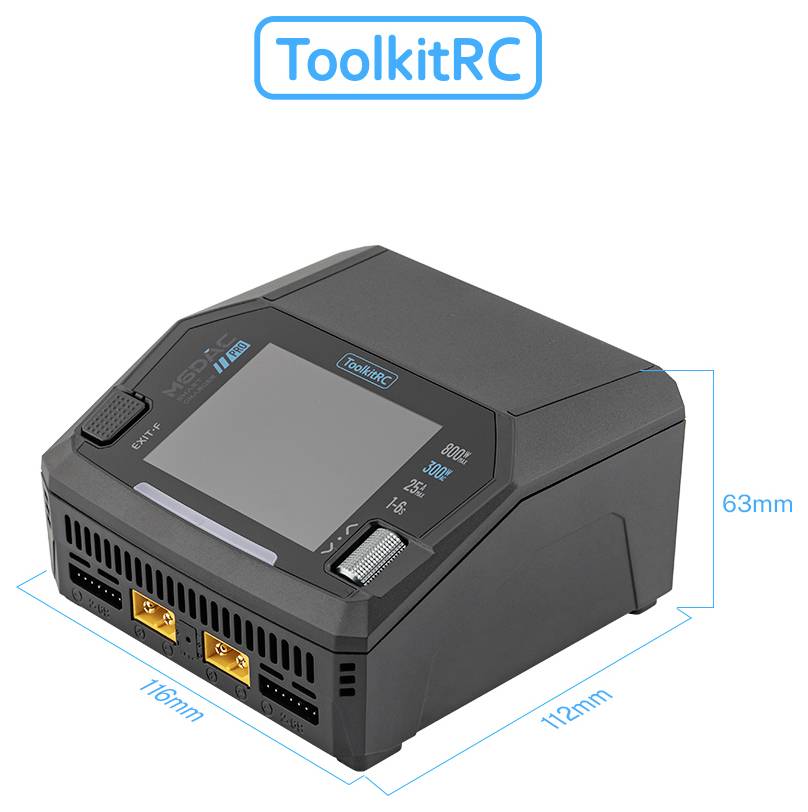

ToolkitRC battery charger with display and ports, shown with dimensions 116mm by 112mm by 63mm.

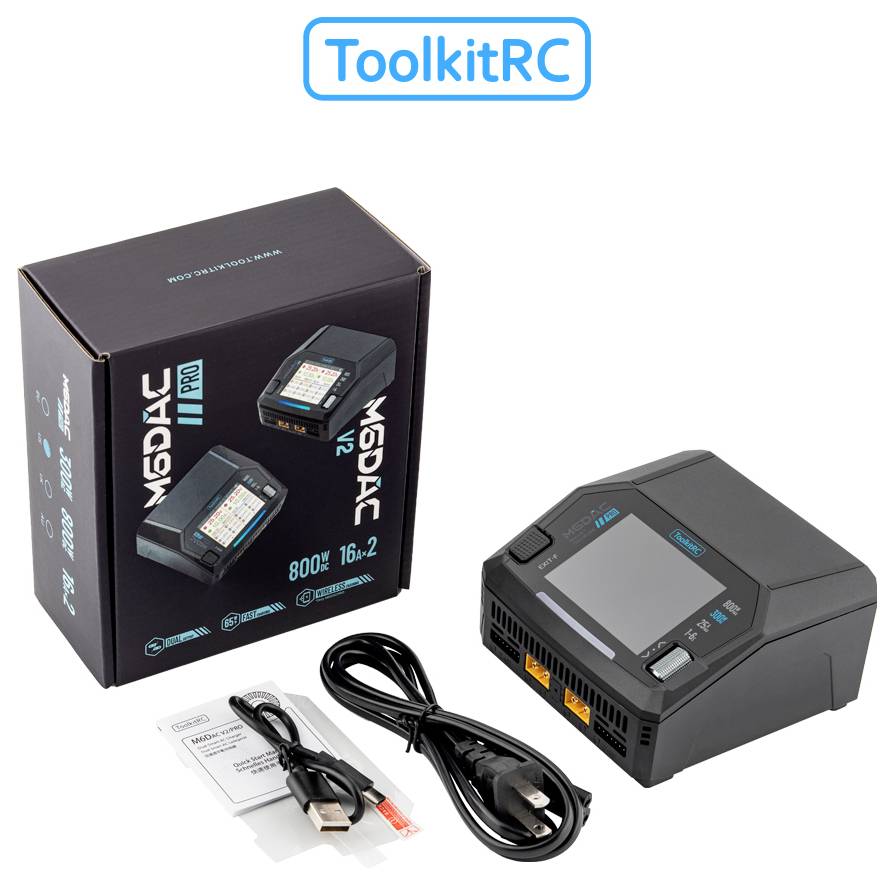

ToolkitRC W4AC 800W 16A smart charger with box, power cables, and manual shown on white background.
1/4
EAN:
Part number:
Item no:
Dispatches on Mon 16 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 159.99 / piece)
€ 159.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

M6DAC Pro LiPo 1-6S 16A 2 channel charger AC/DC

  • Dual-channel charger with integrated AC power supply (up to 300 W)
  • DC-mode from 7-28 V up to 400 W per channel or combined 700 W / 28 A in the synchronous mode (DC-input)
  • Supported battery systems: LiPo, LiHV, LiFe, Li-ion, LTO (1-6S), NiMH (1-16S), lead-acid batteries (1-10S)
  • Balancing current: Approx. 1 A; high balance accuracy < 0.005V
  • Power supply mode with adjustable voltage and current – compatible with Smart batteries (e.g. DJI)
  • USB-C port with 65 W Fast Charging (including PD, QC, PPS, VOOC etc.)
  • Wireless charging of mobile devices (wireless charging)
  • Metal rotary knob for intuitive operation, LCD IPS display
  • Active cooling with integrated fan

Technical specifications

Product type

Charger

Operating voltage

240 V

Matching rechargeable battery

LiPolymer

LiHV

LiFe

Li-ion

LTO

NiMH

Lead

Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)

6

Suitable for (no. of NiCd/NiMH batteries) (max.)

16

Charging current (max.)

28 A

Dim

(L x W x H) 63 x 116 x 112 mm

Weight

600 g

Manufacturer part #

TK14200

Width

116 mm

Height

112 mm

Length

63 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742882 Toolkit RC ToolkitRC M6DAC Pro LiPo 1-6S 16A Charger 240 V 28 A LiPolymer, LiHV, LiFe, Li-ion, LTO, NiMH, Lead

Description

The ToolkitRC M6DAC Pro is a compact, dual charger Ideal for high-performance LiPo setups. It supports different battery chemistry and offers flexible power options as well as smart additional features such as wireless charging and USB-C Quick Charge.

This text is machine translated.
