TracoPower TBL 090-124 Rail mounted PSU (DIN) 24 V DC 3.75 A 90 W No. of outputs:1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 89.99 / piece)
€ 89.99
incl. VAT
14-day return policy included
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 – 264 V AC
- Input voltage (max.)
264 V AC
- Max. output current
3.75 A
- Output current (max.) - rounded
3.75 A
90 W
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 105 x 89.5 x 59.5 mm
- Weight
340 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
TBL 090-124
- Content
1 pc(s)
- Width
105 mm
- Height
89.5 mm
- Type
TBL 090-124
- Depth
59.5 mm
90 W
- Output current (details)
3.75 A
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 511949 TracoPower TBL 090-124 Rail mounted PSU (DIN) 24 V DC 3.75 A 90 W No. of outputs:1 x Content 1 pc(s)
Datasheet 511949 TracoPower TBL 090-124 Rail mounted PSU (DIN) 24 V DC 3.75 A 90 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 511949 TracoPower TBL 090-124 Rail mounted PSU (DIN) 24 V DC 3.75 A 90 W No. of outputs:1 x Content 1 pc(s)
Description

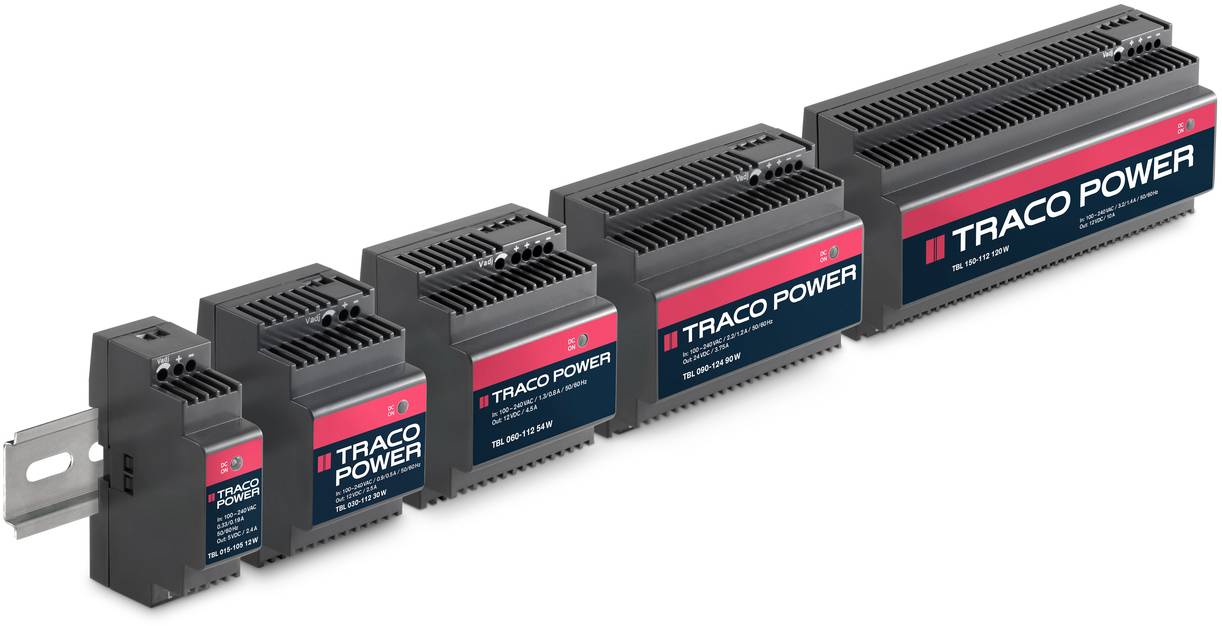

The new series TBL provides industrial switching power supplies for DIN-rail mount which were designed for applications in building automation systems. Due to its ultra-compact design they are suitable for use in standard sub-distribution and in building automation. Besides, for commercial or living area applications these switch power supply fulfil the protection class ll.
This text is machine translated.
This text is machine translated.
Features
- Low profile case, module depth only 55mm
- Fits into flat control panels used in building automation
- Safety class ll product
- UL 1310 class II, NEC class 2 compliance (models up to 90 W)
- UL 508 listed
- Universal input range 85 to 264Vac
- Operating temperature range: –25°C to +70°C max.
- Adjustable output voltage
- Short circuit and overload protection
- DC–OK indicator
- Easy snap-on mounting on DIN rail or with wall mounting bracket (included)
- 3-year product warranty
