TracoPower TBL 030-124 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 89.99 / piece)
€ 89.99
incl. VAT
Only 4 Piece(s) available
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 – 264 V AC
- Input voltage (max.)
264 V AC
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
30 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 52.5 x 89.5 x 59.5 mm
- Weight
160 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
TBL 030-124
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
52.5 mm
- Height
89.5 mm
- Type
TBL 030-124
- Depth
59.5 mm
30 W
- Output current (details)
1.25 A
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 511945 TracoPower TBL 030-124 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Datasheet 511945 TracoPower TBL 030-124 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 511945 TracoPower TBL 030-124 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Description

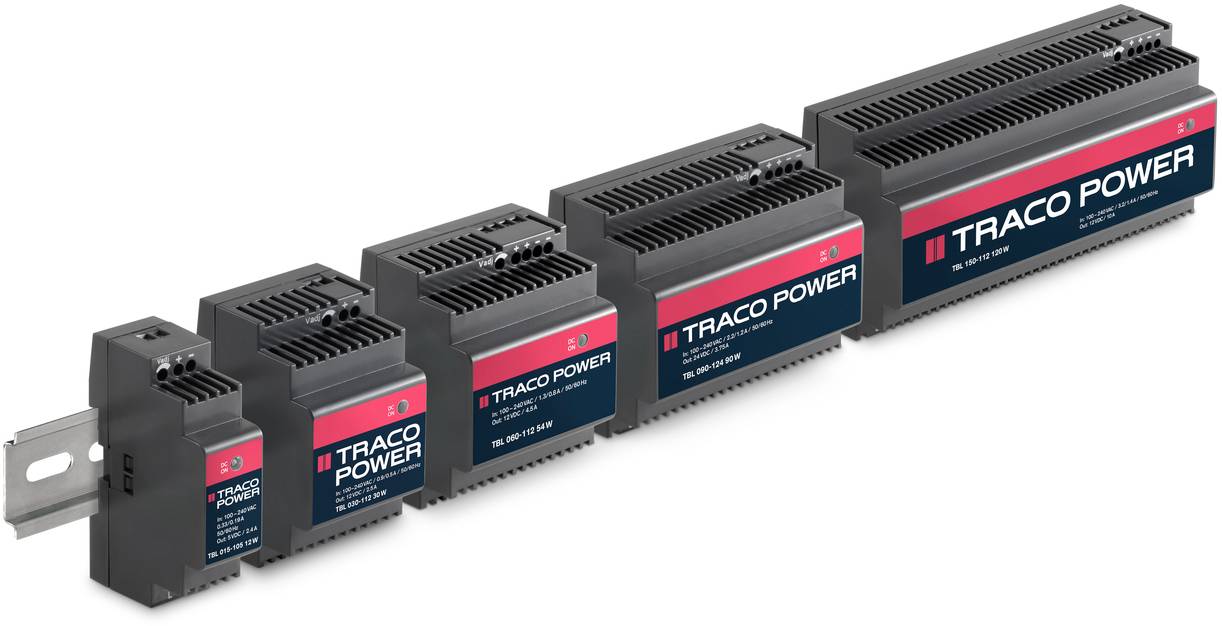

TBL 030-124 power supply with 24V DC 1.25A 30W output from TracoPower's TBL series of small DIN rail power supplies designed especially for building and factory automation.
The ultra-compact low profile case fits in standardised wall mounted control panels used in the building automation industry. The power supply can be operated at full load across an ambient temperature range of –25°C to +60°C without need of additional cooling.
Universal input voltage range and full compliance with all important safety and EMC standards qualifies all TBL series power supplies for worldwide markets. For commercial and residential applications requiring safety class ll the models up to 60 Watt are approved to UL 1310.
The ultra-compact low profile case fits in standardised wall mounted control panels used in the building automation industry. The power supply can be operated at full load across an ambient temperature range of –25°C to +60°C without need of additional cooling.
Universal input voltage range and full compliance with all important safety and EMC standards qualifies all TBL series power supplies for worldwide markets. For commercial and residential applications requiring safety class ll the models up to 60 Watt are approved to UL 1310.
Features
- Low profile case, module depth only 55mm
- Fits into flat control panels used in building automation
- Safety class ll product
- UL 1310 class II, NEC class 2 compliance (models up to 90 W)
- UL 508 listed
- Universal input range 85 to 264Vac
- Operating temperature range: –25°C to +70°C max.
- Adjustable output voltage
- Short circuit and overload protection
- DC–OK indicator
- Easy snap-on mounting on DIN rail or with wall mounting bracket (included)
- 3-year product warranty
