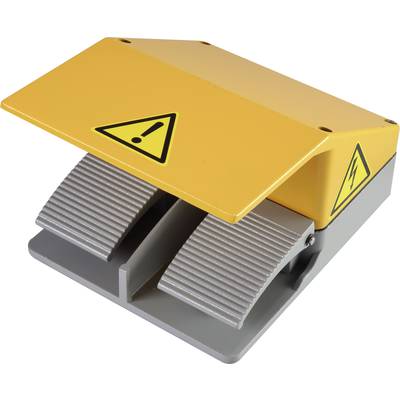

TRU COMPONENTS Foot switch 220 V AC, 380 V AC 10 A 2-pedal 2 breakers, 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Foot switch
Functions
momentary
Operation type
2-pedal
Switch position
2 x Off/(On)
Switching voltage
220 V AC
380 V AC
Datasheet (PDF)
168 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 71.18 / piece)
€
Technical specifications
- Number of pedals: 2
- Product type
Foot switch
- Casing/button colour
Yellow
Grey
- Functions
momentary
- Operation type
2-pedal
- Switch position
2 x Off/(On)
- Contact type
2 breakers
2 makers
- Material
Metal
- Switching voltage
220 V AC
380 V AC
- Switching current (max.)
10 A
- Min. temperature
-10 °C
- Max. temperature
+75 °C
- Length
210 mm
- Width
178 mm
- Height
135 mm
- Content
1 pc(s)
- Dim

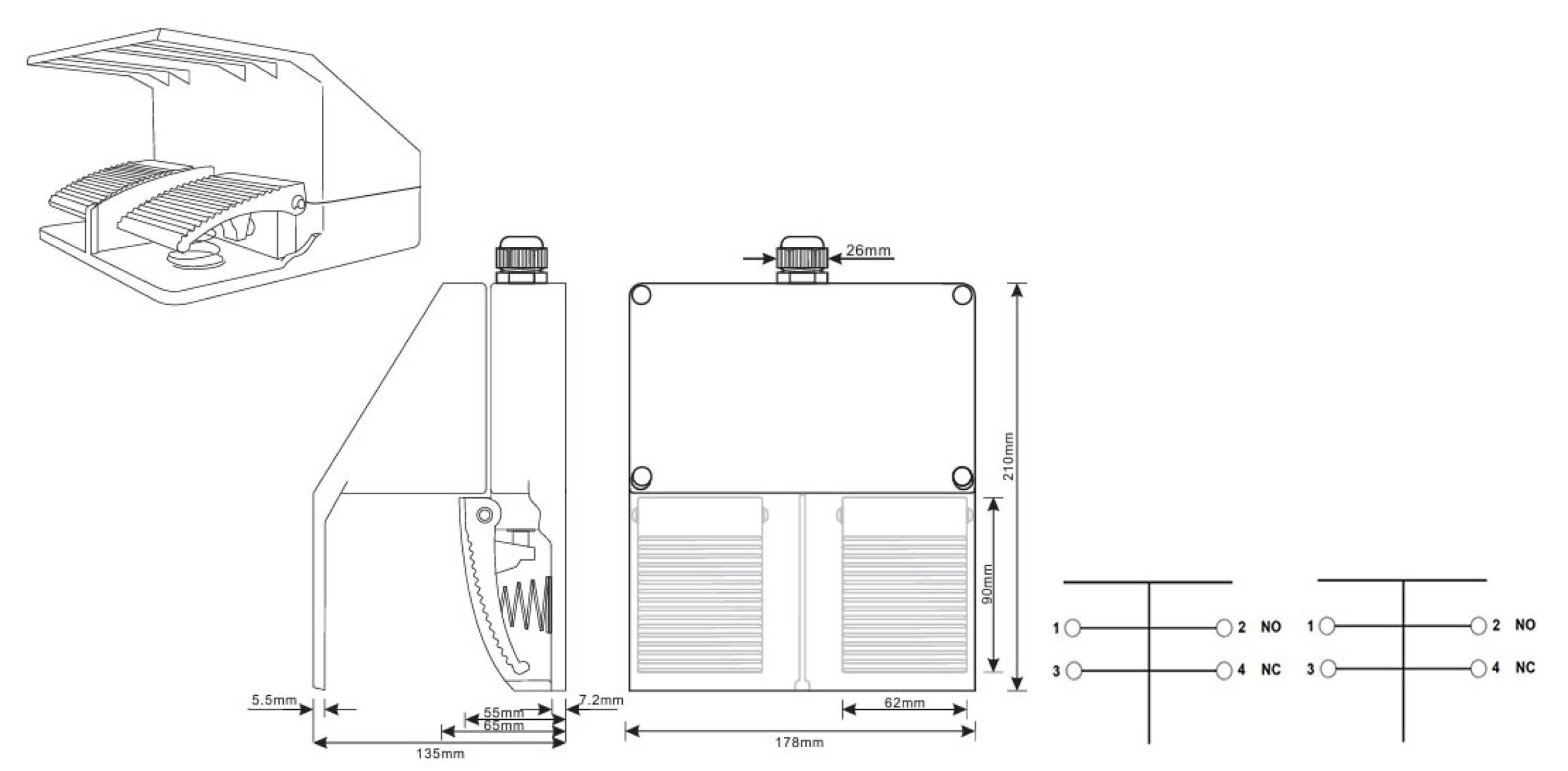

(L x W x H) 210 x 178 x 135 mm
- RoHS-compliant
Yes
- Type
TC-6648036
Documents & Downloads
Datasheet
Datasheet 1662009 TRU COMPONENTS Foot switch 220 V AC, 380 V AC 10 A 2-pedal 2 breakers, 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1662009 TRU COMPONENTS Foot switch 220 V AC, 380 V AC 10 A 2-pedal 2 breakers, 2 makers 1 pc(s)
