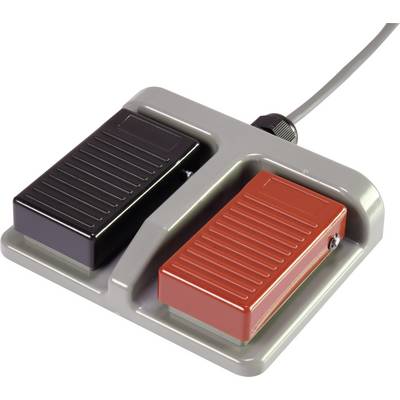

TRU COMPONENTS Foot switch 250 V AC 16 A 2-pedal 2 breakers, 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Foot switch
Functions
momentary
Operation type
2-pedal
Switch position
2 x Off/(On)
Switching voltage
250 V AC
Datasheet (PDF)
76 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.34
3
4% = € 1.37
€ 29.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.34 / piece)
€
Technical specifications
- Number of pedals: 2
- Product type
Foot switch
- Casing/button colour
Black
Red
Grey
- Functions
momentary
- Operation type
2-pedal
- Switch position
2 x Off/(On)
- Contact type
2 breakers
2 makers
- Material
Metal
Plastic
- Connection
Open end cable
- Switching voltage
250 V AC
- Switching current (max.)
16 A
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Length
150 mm
- Width
35 mm
- Height
120 mm
- Content
1 pc(s)

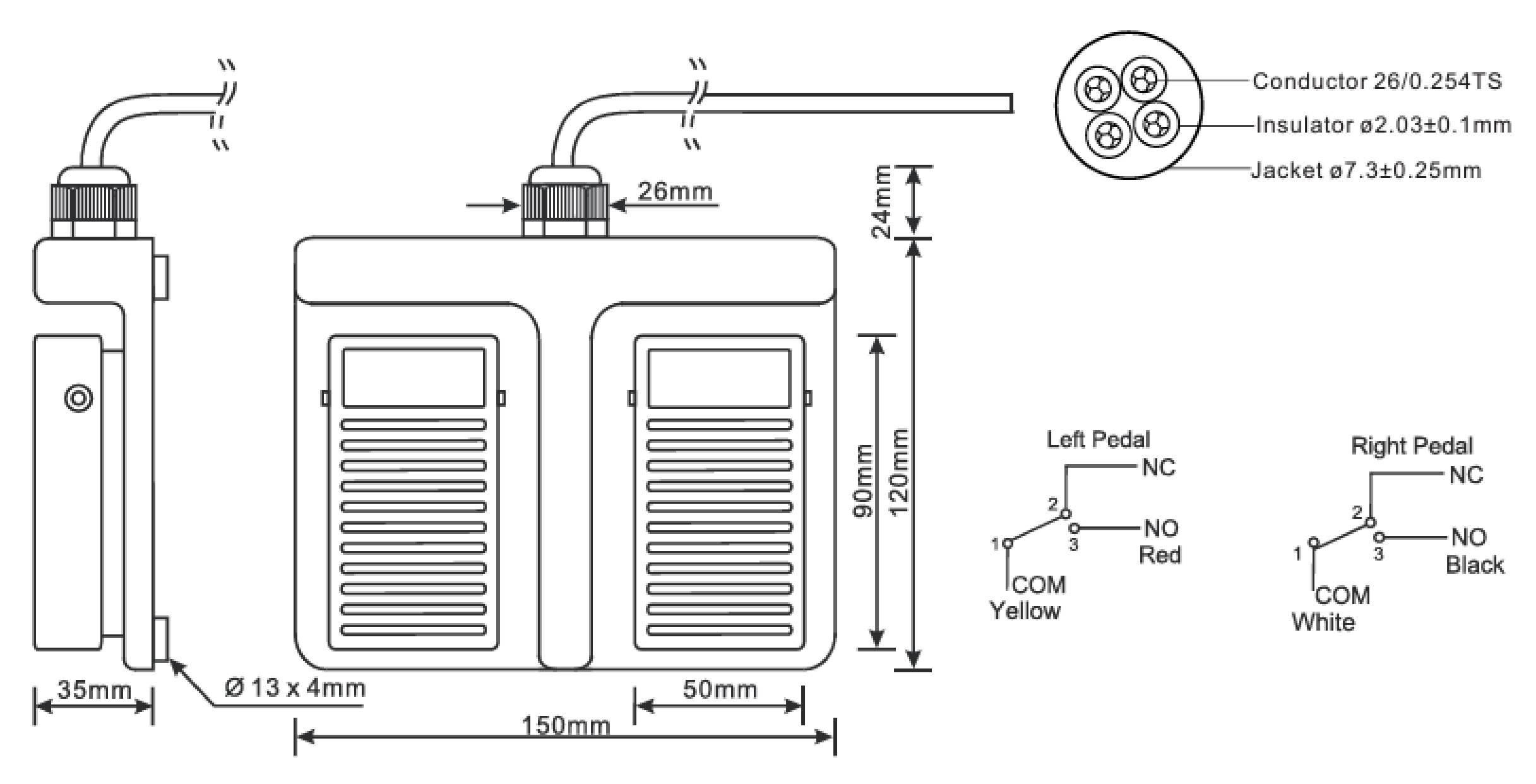

- Dim
(L x W x H) 150 x 35 x 120 mm
- RoHS-compliant
Yes
- Type
TC-6648040
Documents & Downloads
Datasheet
Datasheet 1662010 TRU COMPONENTS Foot switch 250 V AC 16 A 2-pedal 2 breakers, 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1662010 TRU COMPONENTS Foot switch 250 V AC 16 A 2-pedal 2 breakers, 2 makers 1 pc(s)
