Buy TRU COMPONENTS FS-01 Foot switch 250 V AC 10 A 1-pedal 1 breaker, 1 maker 1 pc(s)

A black foot pedal with a ribbed surface and connected cable, against a white background.

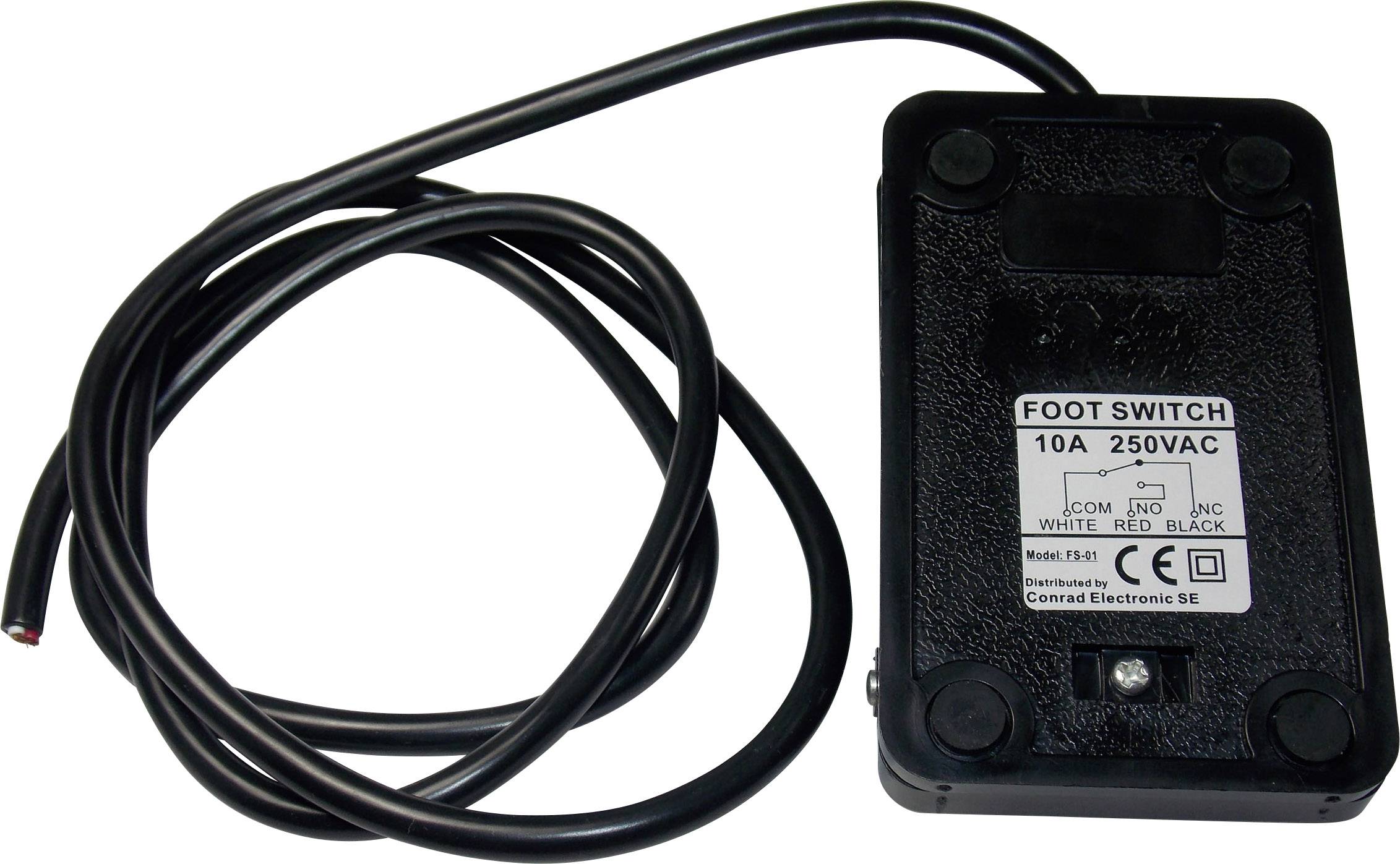

'Foot Switch 10A 250VAC' with cable. Black rectangular housing, labelled with technical details and connections.

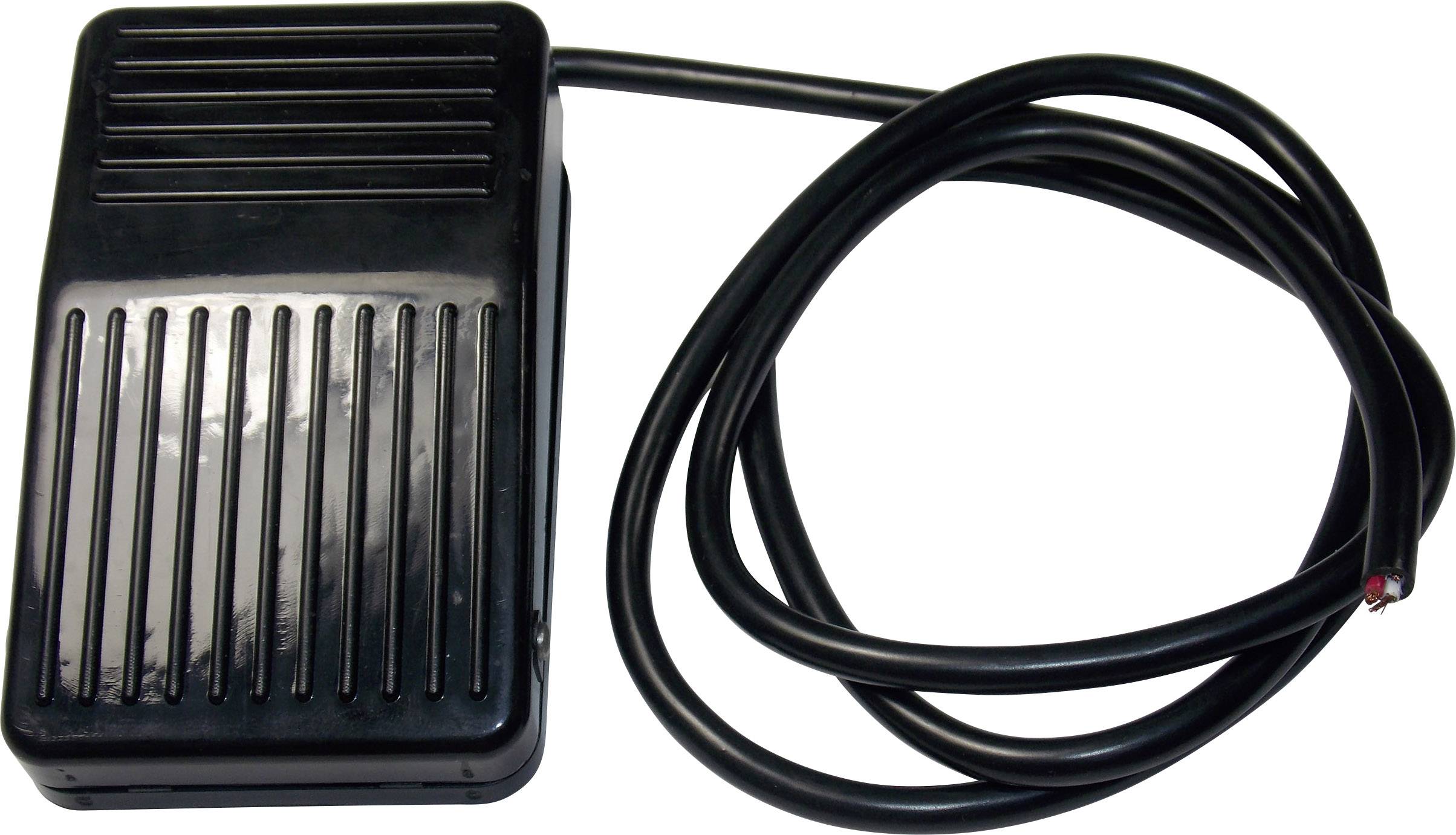

A black foot pedal with a cable, used for operating electronic devices.

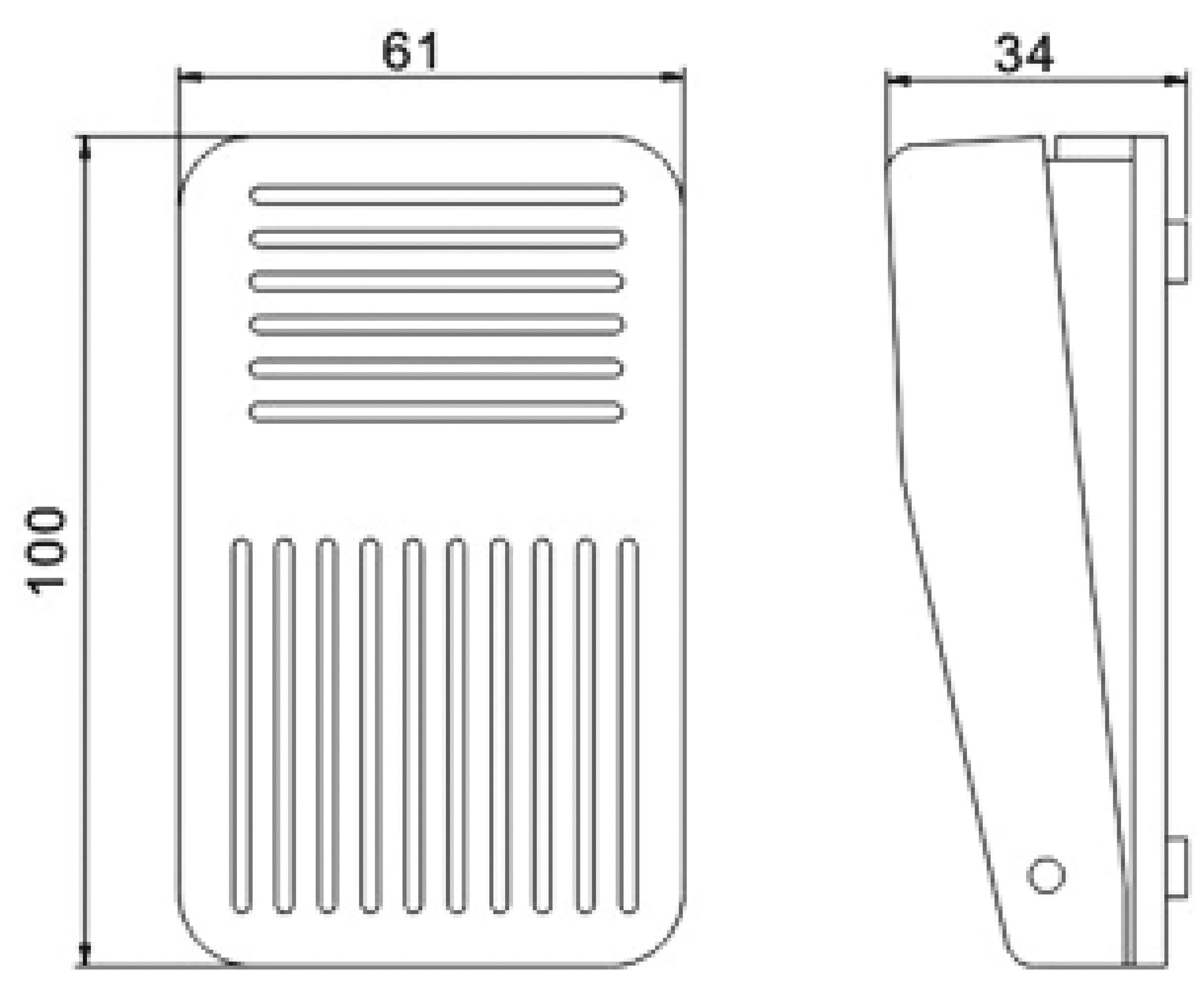

Technical drawing of a rectangular device with dimensions: Width 61 mm, Height 100 mm, Depth 34 mm. Front and side view.

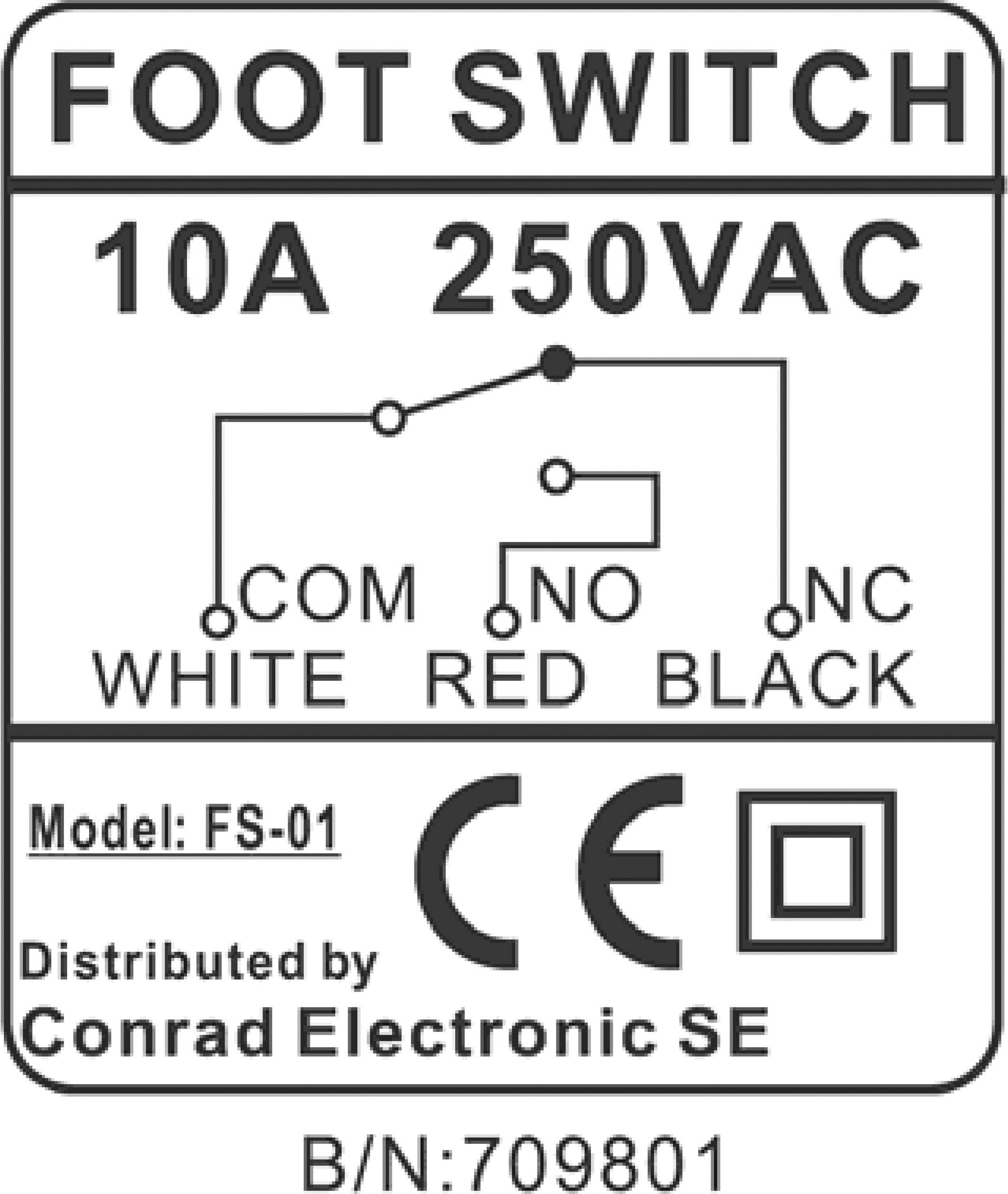

Label for foot switch; shows circuits for COM (white), NO (red) and NC (black), 10A 250VAC. Model FS-01. CE mark.

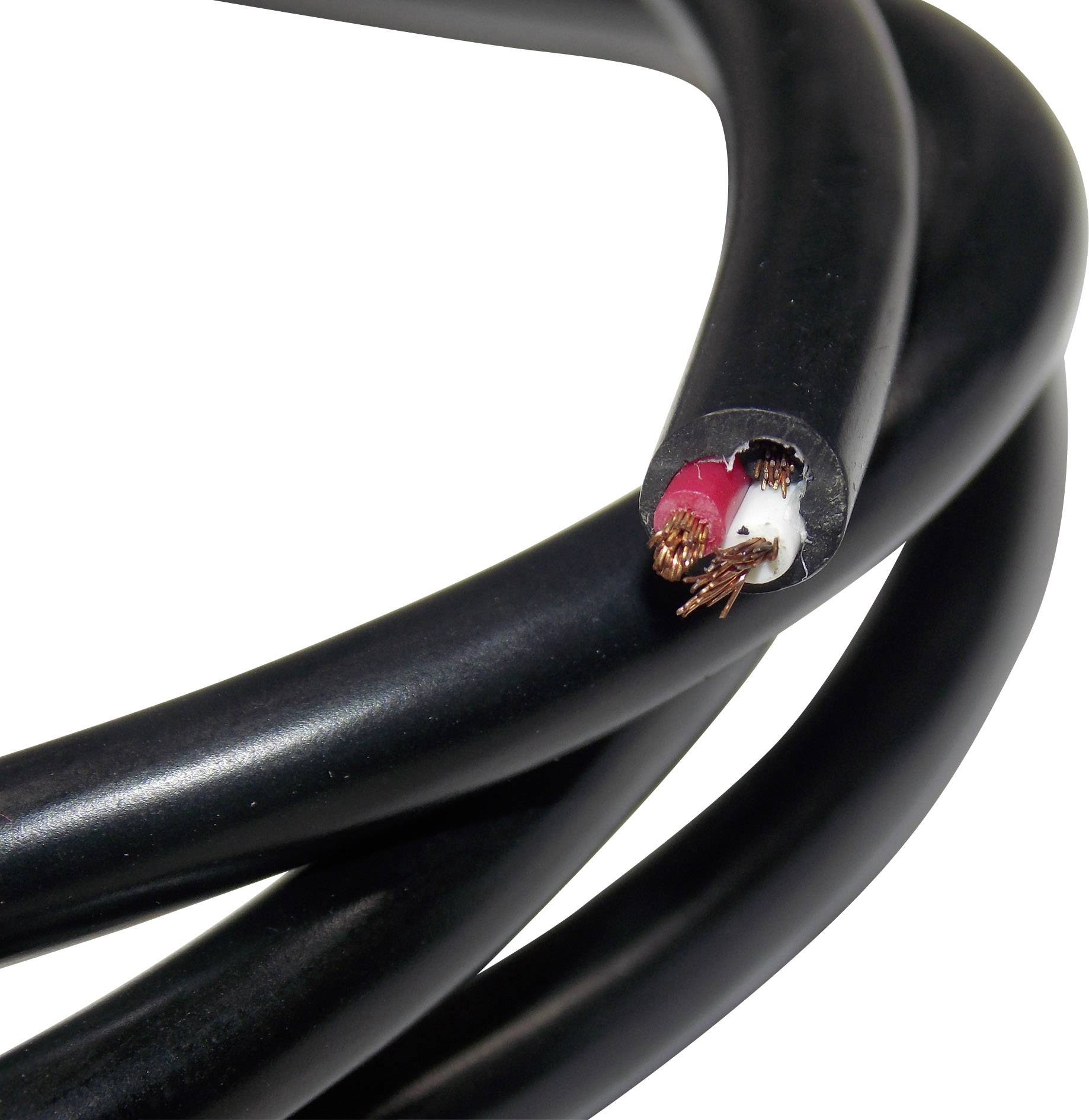

Black coaxial cable, cut end showing white and red wires with copper strands.

1/6

Product type

Foot switch

Functions

momentary

Operation type

1-pedal

Switch position

1 x On/(On)

Switching voltage

250 V AC

Fast track dispatch on Wed, 16 Sep

470 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.32 / piece)

€ 9.32

plus VAT.

Report legal concerns

Highlights & Details

Foot switch 250 Vac 10 A 1-pedal 1 change-over FS-01 1 pc(s)

Our service for you

Technical specifications

Product type: Foot switch

Casing/button colour: Black

Functions: momentary

Operation type: 1-pedal

Switch position: 1 x On/(On)

Contact type: 1 breaker
1 maker

Material: Plastic

Connection: Open end cable

Cable length: 1.00 m

Switching voltage: 250 V AC

Switching current (max.): 10 A

Length: 100 mm

Width: 61 mm

Height: 34 mm

Content: 1 pc(s)

Dim: (L x W x H) 100 x 61 x 34 mm

RoHS-compliant: Yes

Type: FS-01

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1571372 TRU COMPONENTS FS-01 Foot switch 250 V AC 10 A 1-pedal 1 breaker, 1 maker 1 pc(s)

Conformity certificate

Conformity certificate 1571372 TRU COMPONENTS FS-01 Foot switch 250 V AC 10 A 1-pedal 1 breaker, 1 maker 1 pc(s)
