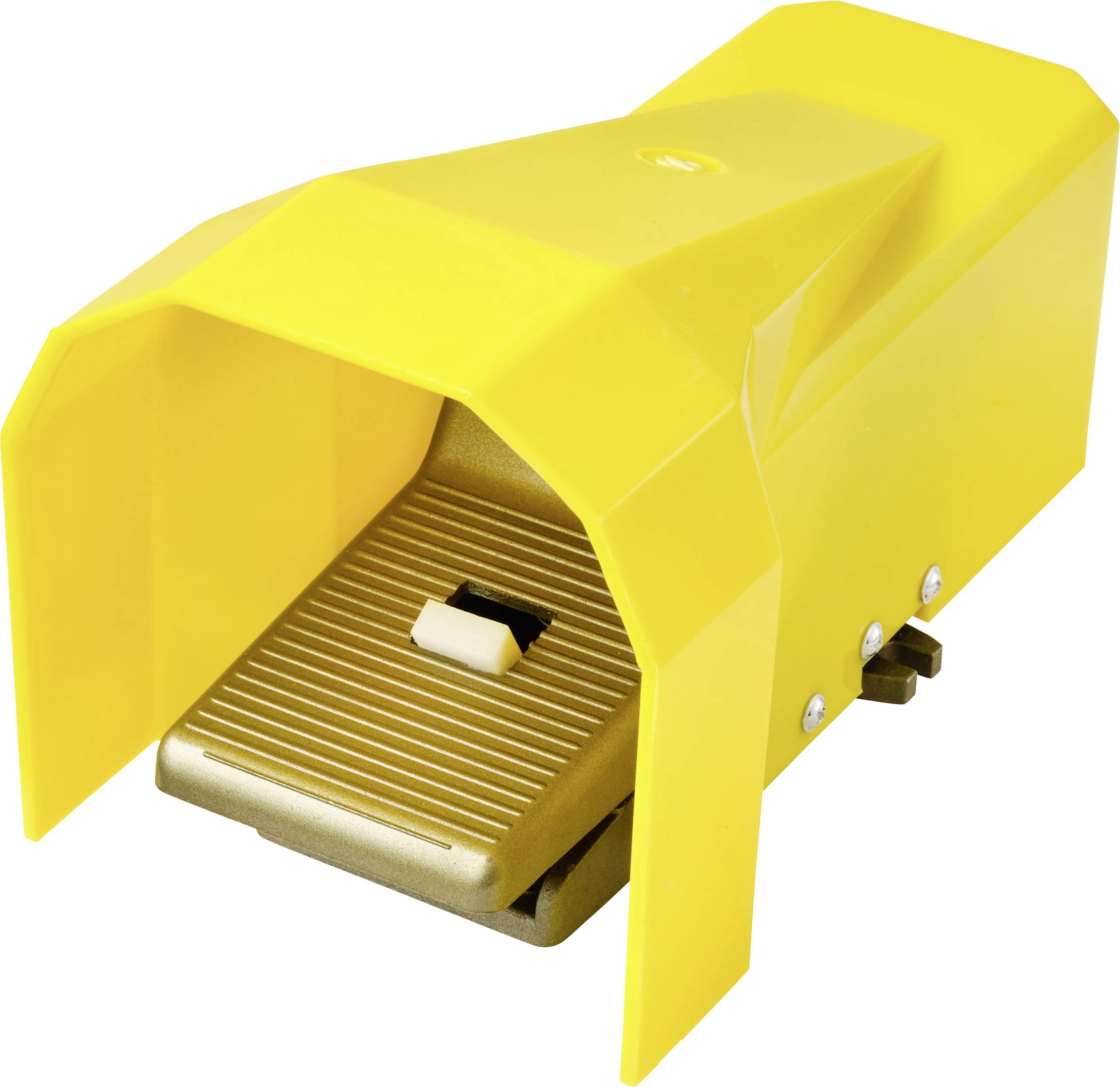

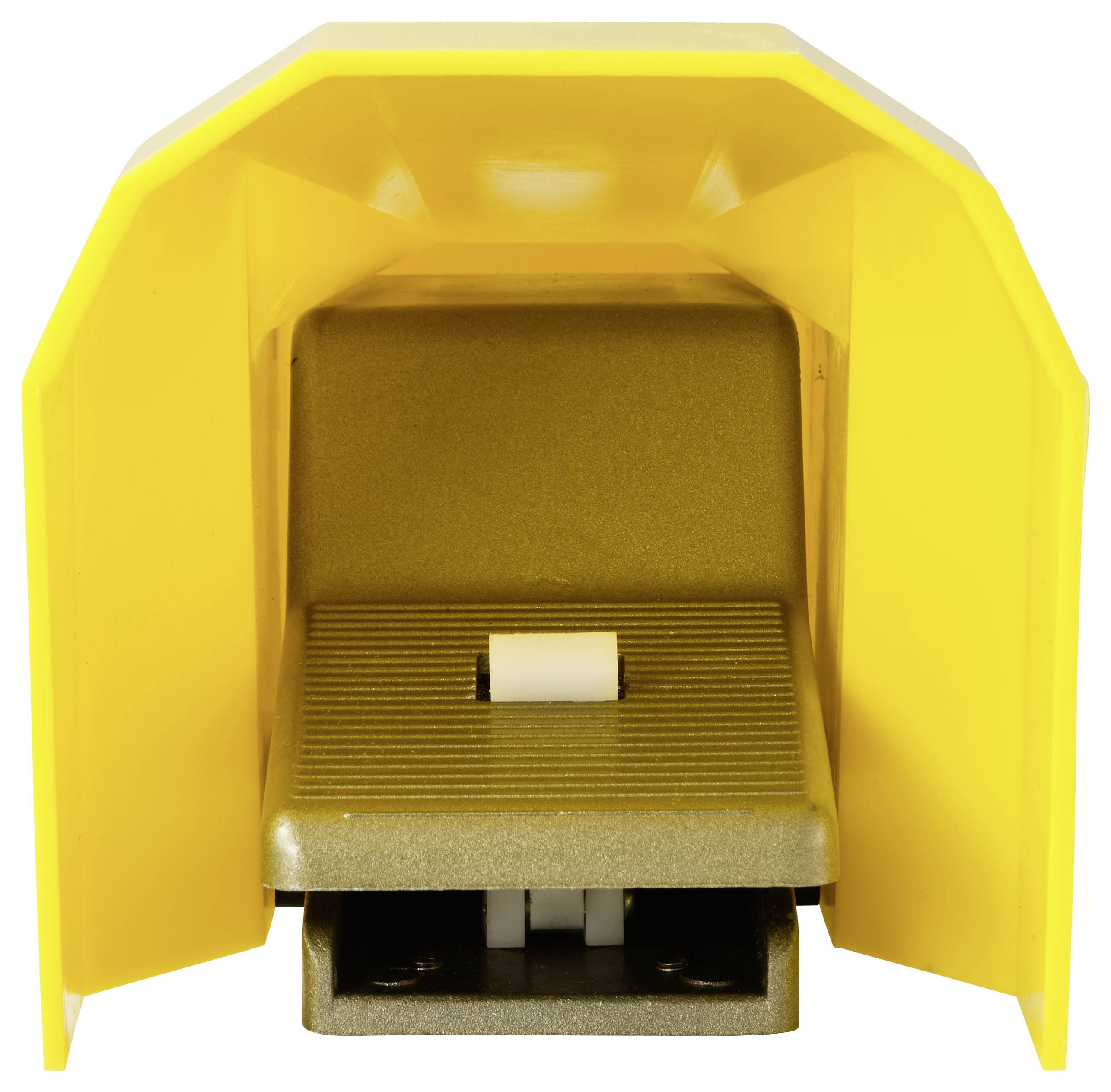

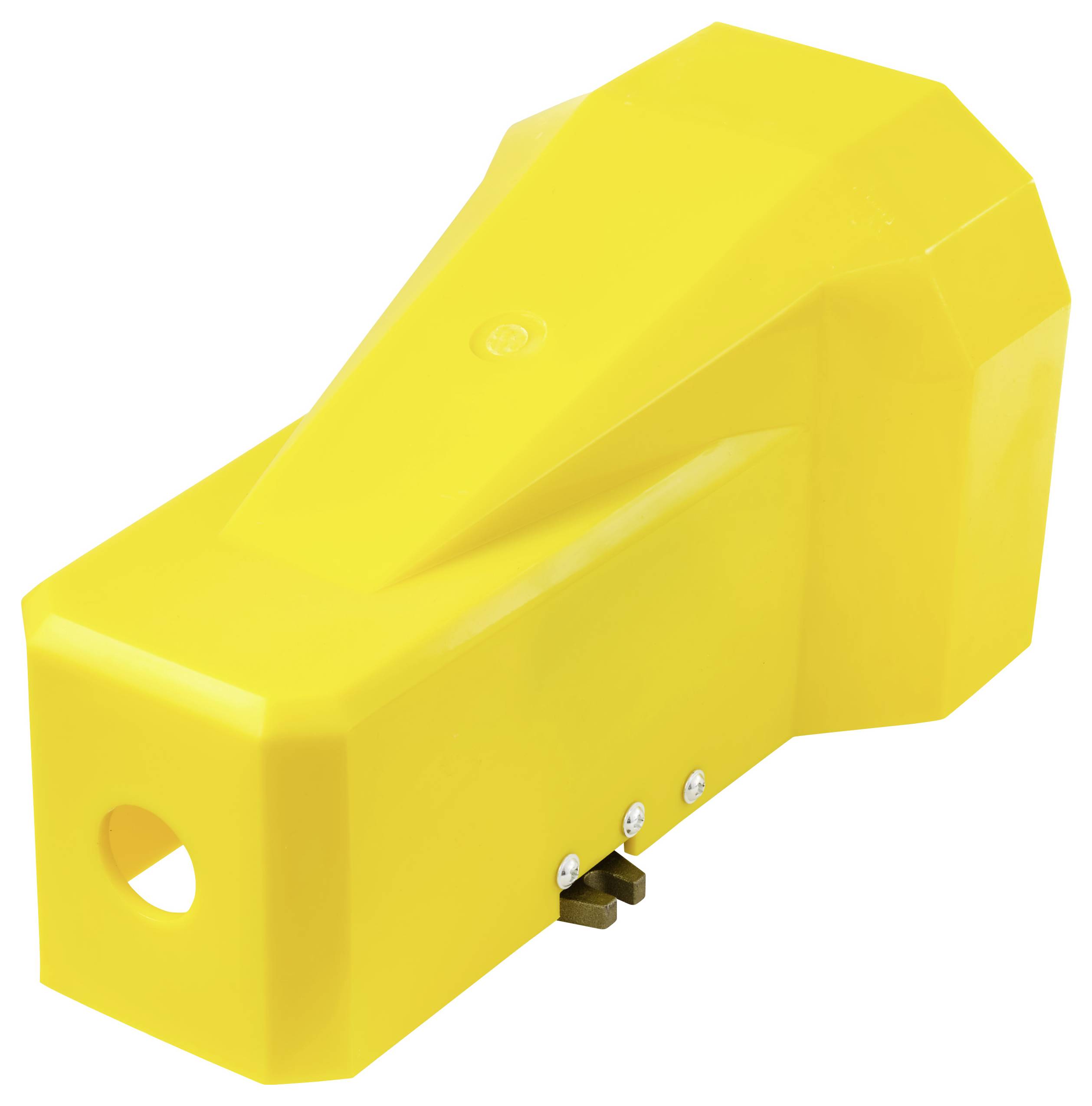

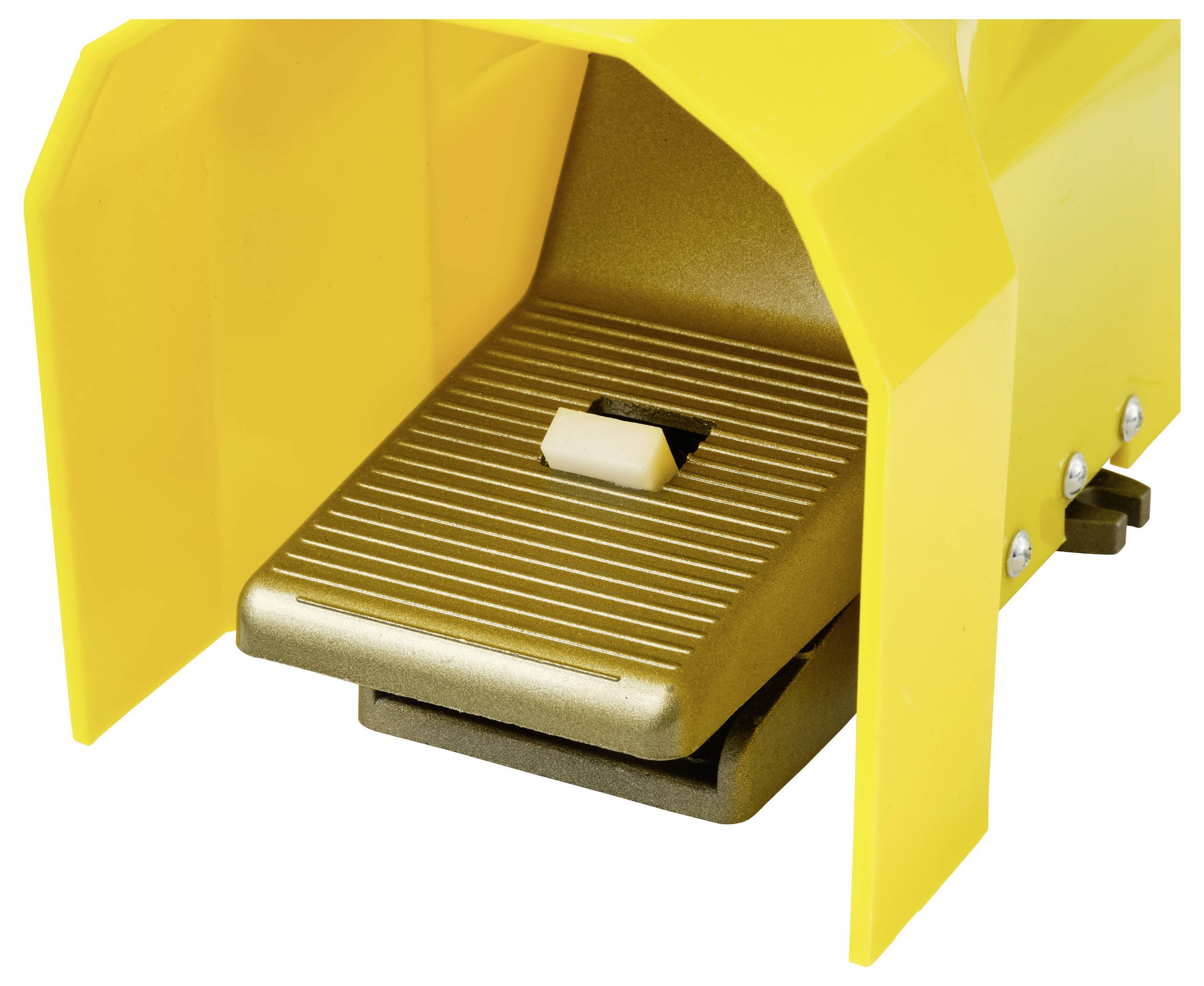

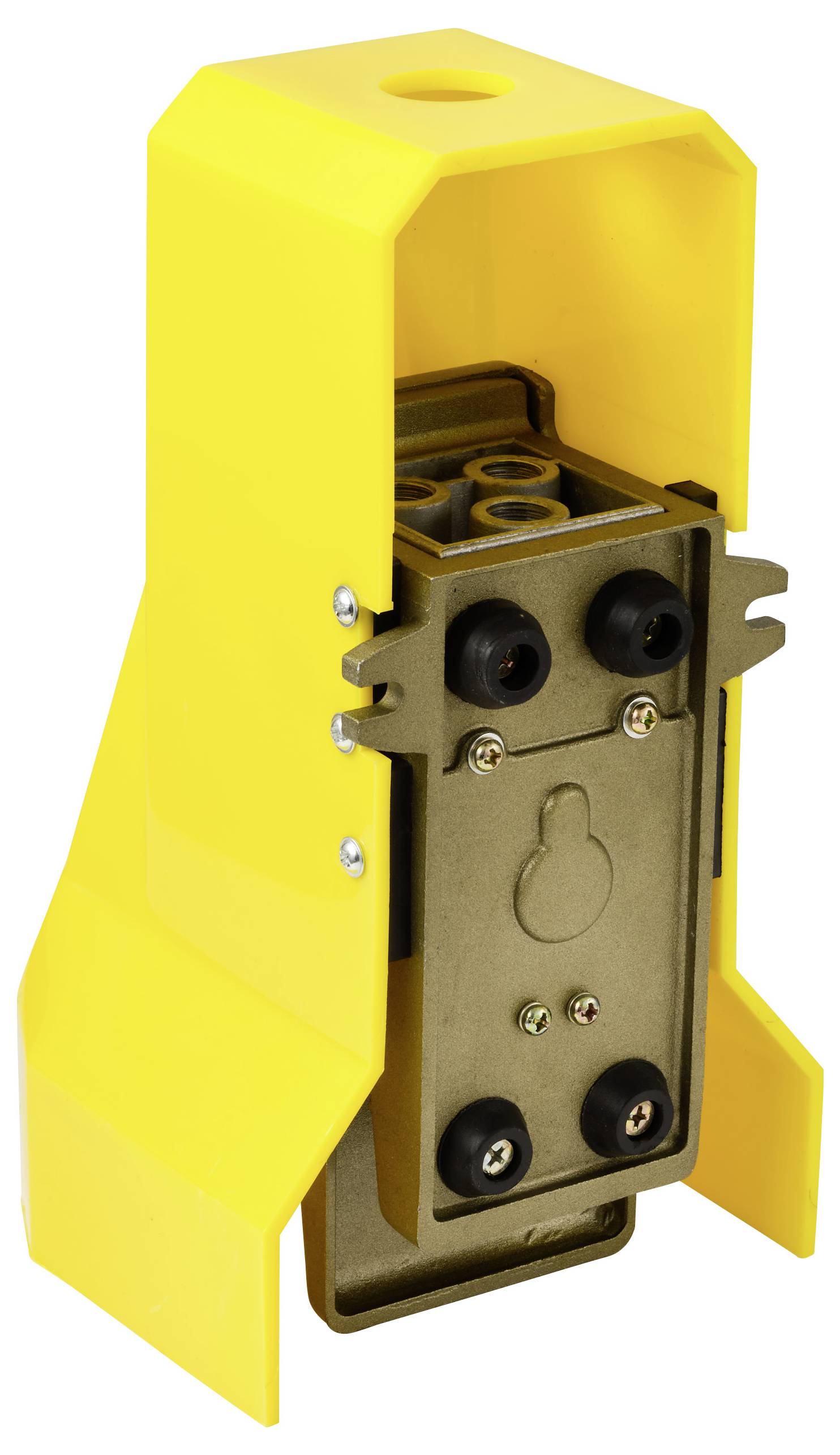

TRU COMPONENTS Mechanically operated pneumatic valve TC-13745852 TC-4F210-08LG Enclosure material ABS plastic, Steel pla
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
14-day return policy included
Highlights & Details
Pneumatic valve with lock function, foot actuation G1/4 0-8 bar
- Function: 2 positions / 5 ways
- Connection: G ¼
- Fluid: Compressed air
- Acting type: Direct operated
- Working pressure: 0.0 – 8.0 Bar
- Ambient temperature: -10 - 70°C
- Operating type: Lock and mono spring reset
- Material: ABS, Steel plate
Technical specifications
- With housing, Lock function, 2 Positions / 5 ways
- Product type
Mechanically operated pneumatic valve
- Enclosure material
ABS plastic
Steel plate
- Connection
G 1/4
- Max. flow
400 l/min
- Max. operating pressure
8 bar
- Operation
Mono spring reset
- Manufacturer part #
TC-13745852
- Operating pressure (min.)
0 bar
- Medium
Compressed air
- Max. ambient temperature
70 °C
- Min. ambient temperature
-10 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3436463 TRU COMPONENTS Mechanically operated pneumatic valve TC-13745852 TC-4F210-08LG Enclosure material ABS plastic, Steel pla
User & Safety Instructions
User & Safety Instructions 3436463 TRU COMPONENTS Mechanically operated pneumatic valve TC-13745852 TC-4F210-08LG Enclosure material ABS plastic, Steel pla
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
